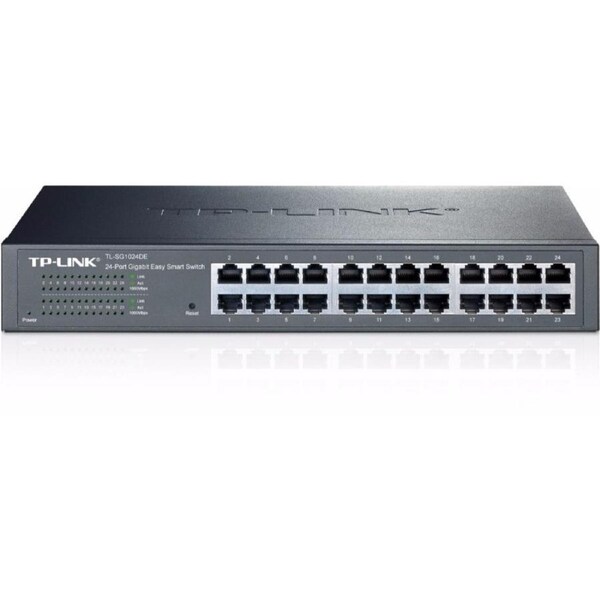

[TL-SG1024DE] 24-Port Gigabit Easy Smart Switch

TP-Link TL-SG1024DE 24-Port Gigabit Easy Smart Switch

• 24 10/100/1000Mbps RJ45 ports
• Provides network monitoring, traffic prioritization and VLAN features
• Green technology reduces power consumption
• Simple network set-up on top of plug-and-play connectivity
• Web-based user interface and management utility simplify configuration

HARDWARE FEATURES

• Standards and Protocols :IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
• Interface :24 10/100/1000Mbps RJ45 Ports
  AUTO Negotiation/AUTO MDI/MDIX
• Network Media :10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  EIA/TIA-568 100? STP (maximum 100m)
  100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  EIA/TIA-568 100? STP (maximum 100m)
  1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
  EIA/TIA-568 100? STP (maximum 100m)
• Fan Quantity :Fanless
• Physical Security Lock :No
• Power Supply :100-240VAC, 50/60Hz
• Dimensions ( W x D x H ) :11.6*7.1*1.7 in. (294*180*44 mm)
• Mounting :Rack Mountable
• Max Power Consumption :15.56W (220V/50Hz)
• Max Heat Dissipation :50.06 BTU/h

PERFORMANCE

• Switching Capacity :48Gbps
• Packet Forwarding Rate :35.7Mpps
• MAC Address Table :8K
• Packet Buffer Memory :4.1Mbit
• Jumbo Frame :10KB

SOFTWARE FEATURES

• Quality of Service :Support Port-based/802.1p/DSCP priority
  Support 4 priority queues
  Rate Limit
  Storm Control
• L2 Features :IGMP Snooping V1/V2/V3
  Static Link Aggregation
  Port Mirroring
  Cable Diagnostics
  Loop Prevention
• VLAN :Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
  MTU/Port/Tag VLAN
• Transmission Method :Store-And-Forward

OTHERS

• Certification :FCC, CE, RoHS
• Package Contents :TL-SG1024DE, Power Cord, Installation Guide, Resource CD, Rackmount Kit, Rubber Feet
• System Requirements :Microsoft® Windows® for running Utility
• Environment :Operating Temperature: 0?~40? (32?~104?)
  Storage Temperature: -40?~70? (-40?~158?)
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~90% non-condensing
