[TL-SG105] 5-Port 10/100/1000Mbps Desktop Switch Green Ethernet Steel

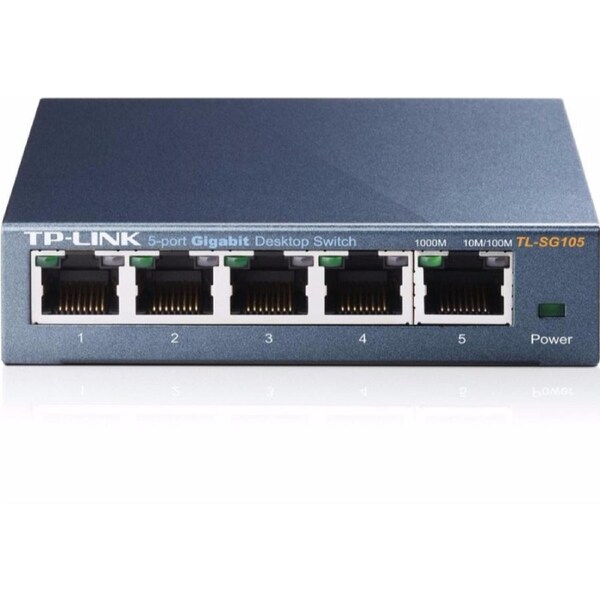

TP-Link TL-SG105 5-Port 10/100/1000Mbps Desktop Switch

• 5x 10/100/1000 Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
• Plug and play, no configuration needed
• Supports 802.1p/DSCP QoS and IGMP Snooping functions
• Durable metal casing, desktop/wall-mounting options, and a fanless design
• IEEE 802.3x flow control provides reliable data transfer
• Green Ethernet technology reduces power consumption

HARDWARE FEATURES

• Standards and Protocols :IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p
• Interface :5x 10/100/1000 Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
• Fan Quantity :Fanless
• External Power Supply :External Power Adapter (Output: 5 V DC / 0.6A)
• LED Indicator :System Power
  Link/Act indicators per port built into each RJ-45 port

• Dimensions ( W x D x H ) :3.9 x 3.9 x 1.0 in (100 x 98 x 25 mm)
• Max Power Consumption :2.3 W (220 V/ 50 Hz)
• Max Heat Dissipation :7.83 BTU/h

PERFORMANCE

• Packet Forwarding Rate :7.4 Mpps
• MAC Address Table :2K
• Packet Buffer Memory :1 Mb
• Jumbo Frame :16 KB

SOFTWARE FEATURES

• Advanced Features :Green Technology
  802.3X Flow Control
  802.1P/DSCP QoS (for V2 and later version)
  IGMP Snooping
• Transfer Method :Store and Forward

OTHERS

• Certification :CE, FCC, RoHS
• Package Contents :5-Port 10/100/1000Mbps Desktop Switch
  Power Adapter
  Installation Guide
• Environment :Operating Temperature: 0-40 °C (32-104 °F)
  Storage Temperature: -40-70 °C (-40-158 °F)
  Operating Humidity: 10-90% RH non-condensing
  Storage Humidity: 5-90% RH non-condensing
