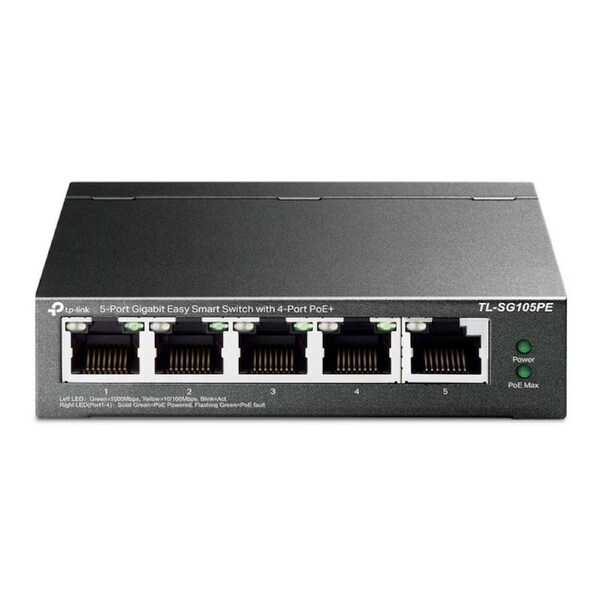

[TL-SG105PE] 5 Port Gigabit Easy Smart Switch with 4 Port PoE+ Up To 65W

TP-Link TL-SG105PE 5-Port Gigabit Easy Smart Switch with 4-Port PoE+

• Five 10/100/1000Mbps RJ45 ports
• Equipped with four 802.3af/at PoE+ ports with up to 30W for each port, data, and power can be transferred on one single cable
• Supports PoE power up to 65 W for all PoE ports*
• Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery
• Simple network set-up on top of plug-and-play connectivity
• Web-based user interface and Easy Smart Configuration Utility simplify configuration
• Fanless design lowers energy consumption and eliminates operating noise

HARDWARE FEATURES

• Standards and Protocols :IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
  IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at
• Interface :Five 10/100/1000Mbps RJ45 Ports
  AUTO Negotiation/AUTO MDI/MDIX

• Network Media :10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  EIA/TIA-568 100? STP (maximum 100m)
  100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  EIA/TIA-568 100? STP (maximum 100m)
  1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
  EIA/TIA-568 100? STP (maximum 100m)

• Fan Quantity :Fanless
• Power Supply :External Power Adapter (Output: 53.5 VDC/1.31 A)
• PoE Ports (RJ45) :Standard: 802.3 af/at compliant
  PoE Ports: Port 1- Port 4
  PoE Power Budget: 65 W

• Dimensions ( W x D x H ) :3.9 x 3.9 x 1.0 in (99.8 x 98 x 25 mm)
• Max Power Consumption :4.52 W (220V/50Hz with no PD connected)
  75.16 W (220V/50Hz with 65 W PD connected)
• Max Heat Dissipation :15.41 BTU/h (with no PD connected)
  256.30 BTU/h (with 65 W PD connected)

PERFORMANCE

• Switching Capacity :10 Gbps
• Packet Forwarding Rate :7.44 Mpps
• MAC Address Table :2 K
• Packet Buffer Memory :1 Mb
• Jumbo Frame :16 KB

SOFTWARE FEATURES

• Quality of Service :Support Port-Based/802.1p/DSCP priority
  Support 4 priority queues
  Rate Limit
  Storm Control

• L2 Features :IGMP Snooping V1/V2/V3
  Static Link Aggregation
  Port Mirroring
  Cable Diagnostics
  Loop Prevention
  PoE Auto Recovery
  Extend Mode
• VLAN :Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
  MTU/Port/Tag VLAN

• Management :Web-based GUI
  Easy Smart Configuration Utility

• Transmission Method :Store-And-Forward

OTHERS

• Certification :FCC, CE, RoHS
• Package Contents :TL-SG105PE
  Power Adapter
  Installation Guide
  Rubber Feet

• System Requirements :Microsoft® Windows® for running Utility
• Environment :Operating Temperature: 0?~40? (32?~104?)
  Storage Temperature: -40?~70? (-40?~158?)
  Operating Humidity: 10%~90%RH non-condensing
  Storage Humidity: 5%~95%RH non-condensing
