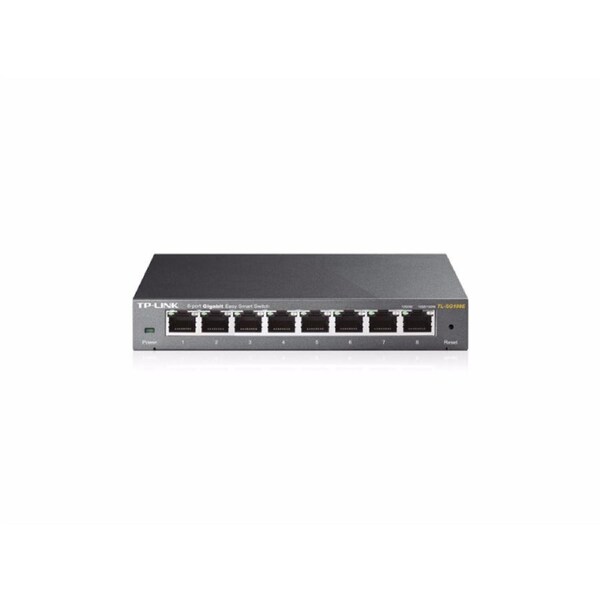

[TL-SG108E] 8 Port Gigabit Managed Ethernet Network Desktop Switch

TP-Link TL-SG108E 8-Port Gigabit Unmanaged Pro Switch

• 8 10/100/1000Mbps RJ45 ports
• Plug and play, with no configuration required
• Durable metal casing of superior quality and professional appearance
• Intelligent management via a web user interface and downloadable utility
• Green technology reduces power consumption

HARDWARE FEATURES

• Standards and Protocols :IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
• Interface :8 10/100/1000 Mbps RJ45 Ports
  AUTO Negotiation/AUTO MDI/MDIX
• Network Media :10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  EIA/TIA-568 100? STP (maximum 100m)
  100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  EIA/TIA-568 100? STP (maximum 100m)
  1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
  EIA/TIA-568 100? STP (maximum 100m)
• Fan Quantity :Fanless
• Power Supply :External Power Adapter(Output: 5VDC/0.6A)
• Dimensions ( W x D x H ) :6.2 x 4.0 x 1.0 in (158 x 101 x 25 mm)
• Max Power Consumption :3.68 W (220 V/ 50 Hz)
• Max Heat Dissipation :12.55 BTU/h

PERFORMANCE

• Switching Capacity :16 Gbps
• Packet Forwarding Rate :11.9 Mpps
• MAC Address Table :4 K
• Packet Buffer Memory :1.5 Mb
• Jumbo Frame :16 KB

SOFTWARE FEATURES

• Quality of Service :Support Port-based/802.1p/DSCP priority
  Support 4 priority queues
  Rate Limit
  Storm Control
• L2 Features :IGMP Snooping V1/V2/V3
  Static Link Aggregation
  Port Mirroring
  Cable Diagnostics
  Loop Prevention
• VLAN :Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
  MTU/Port/Tag VLAN
• Transmission Method :Store-And-Forward

OTHERS

• Certification :FCC, CE, RoHS
• Package Contents :TL-SG108E
  Power Adapter
  Installation Guide
  Rubber Feet
• System Requirements :Microsoft® Windows® for running Utility
• Environment :Operating Temperature: 0?~40? (32?~104?)
  Storage Temperature: -40?~70? (-40?~158?)
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~90% non-condensing
