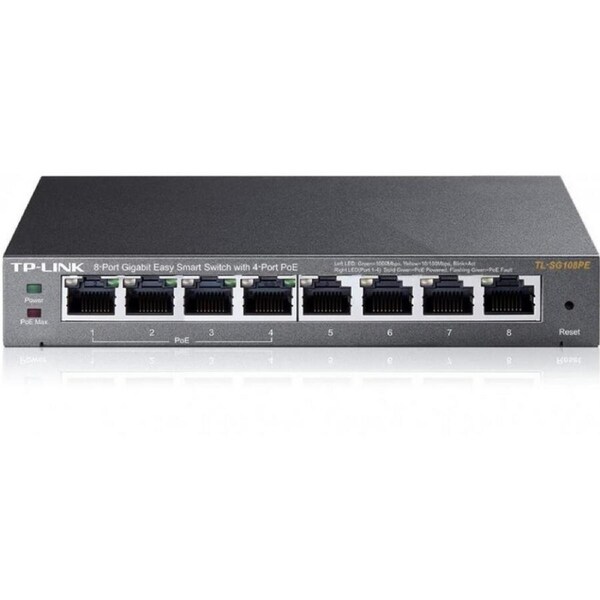

[TL-SG108PE] 8-Port Gigabit Easy Smart Switch 1000Mbps with 4-Port PoE QoS

TP-Link TL-SG108PE 8-Port Gigabit Easy Smart Switch with 4-Port PoE+

• 8 10/100/1000Mbps RJ45 ports
• Equipped with 4 802.3af PoE ports with up to 15.4W for each port, data and power can be transferred on one single cable
• Supports PoE power up to 55W for all PoE ports
• Provides network monitoring, traffic prioritization and VLAN features
• Simple network set-up on top of plug-and-play connectivity
• Web-based user interface and Easy Smart Configuration Utility simplify configuration

HARDWARE FEATURES

• Standards and Protocols :IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
  IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at
• Interface :Eight 10/100/1000Mbps RJ45 Ports
  AUTO Negotiation/AUTO MDI/MDIX

• Network Media :10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  EIA/TIA-568 100? STP (maximum 100m)
  100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  EIA/TIA-568 100? STP (maximum 100m)
  1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
  EIA/TIA-568 100? STP (maximum 100m)

• Fan Quantity :Fanless
• Power Supply :External Power Adapter (Output: 53.5 VDC/1.31 A)
• PoE Ports (RJ45) :Standard: 802.3 af/at compliant
  PoE Ports: Port 1- Port 4
  PoE Power Budget: 64W

• Dimensions ( W x D x H ) :6.2 x 4.0 x 1.0 in (158 x 101 x 25 mm)
• Max Power Consumption :5.41 W (220V/50Hz with no PD connected)
  74.27 W (220V/50Hz with 64 W PD connected)
• Max Heat Dissipation :18.45 BTU/h (with no PD connected)
  253.26 BTU/h (with 64 W PD connected)

PERFORMANCE

• Switching Capacity :16 Gbps
• Packet Forwarding Rate :11.9 Mpps
• MAC Address Table :4 K
• Packet Buffer Memory :1.5 Mb
• Jumbo Frame :16 KB

SOFTWARE FEATURES

• Quality of Service :Support Port-Based/802.1p/DSCP priority
  Support 4 priority queues
  Rate Limit
  Storm Control

• L2 Features :IGMP Snooping V1/V2/V3
  Static Link Aggregation
  Port Mirroring
  Cable Diagnostics
  Loop Prevention
  PoE Auto Recovery
• VLAN :Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
  MTU/Port/Tag VLAN

• Management :Web-based GUI
  Easy Smart Configuration Utility

• Transmission Method :Store-And-Forward

OTHERS

• Certification :FCC, CE, RoHS
• Package Contents :TL-SG108PE
  Power Adapter
  Installation Guide
  Rubber Feet

• System Requirements :Microsoft® Windows® for running Utility
• Environment :Operating Temperature: 0?~40? (32?~104?)
  Storage Temperature: -40?~70? (-40?~158?)
  Operating Humidity: 10%~90%RH non-condensing
  Storage Humidity: 5%~95%RH non-condensing
