[SG2008] 8-Port Gigabit Smart Switch High Performance 1000Mbps QoS

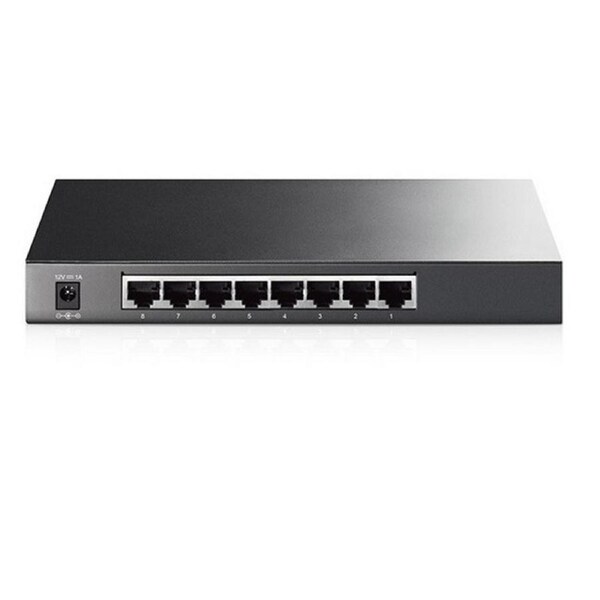

TP-Link TL-SG2008 JetStream 8-Port Gigabit Smart Switch

• Full Gigabit Ports: 8x gigabit RJ45 ports provide high-speed connections.
• Integrated into Omada SDN: Zero-Touch Provisioning*, Centralized Cloud Management, and Intelligent Monitoring.
• Centralised Management: Cloud access and Omada app for ultra convenience and easy management.
• Robust Security Strategies: 802.1Q VLAN, ACL, Port Security, Storm Control, and more.
• Optimise Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
• Versatile Management: WEB/CLI managed modes, SNMP, and RMON bring abundant management features.

HARDWARE FEATURES

• Standards and Protocols :IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
• Interface :8 10/100/1000Mbps RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX)
• Network Media :• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
• Fan Quantity :Fanless
• Power Supply :• 12 VDC/1 A External Adapter or
  • Obtain Power from PoE Source
• Power Consumption :6.4 W (220 V/50 Hz)
• Dimensions ( W x D x H ) :8.2 x 4.9 x 1.0 in (209 x 126 x 26 mm)

PERFORMANCE

• Bandwidth/Backplane :16 Gbps
• Packet Forwarding Rate :11.9 Mpps
• MAC Address Table :8K
• Packet Buffer Memory :4.1 Mbit
• Jumbo Frame :9 KB

SOFTWARE FEATURES

• Quality of Service :• 802.1p CoS/DSCP priority
  • 8 priority queues
  • Priority Schedule Mode
  - SP (Strict Priority)
  - WRR (Weighted Round Robin)
  • Queue Weight Config
  • Bandwidth Control
  - Port/Flow based Rating Limit
  • Smoother Performance
  • Storm Control
  - Multiple Control Modes(kbps/ratio)
  - Broadcast/Multicast/Unknown-Unicast Control
• L2 and L2+ Features :• 16 IP Interfaces
  - Support IPv4/IPv6 Interface
  • Static Routing
  - 32 IPv4/IPv6 Static Routes
  • DHCP Server
  • DHCP Relay
  - DHCP Interface Relay
  - DHCP VLAN Relay
  • DHCP L2 Relay
  • Static ARP
  • Proxy ARP
  • Gratuitous ARP
  • Link Aggregation
  - Static link aggregation
  - 802.3ad LACP
  - Up to 8 aggregation groups and up to 8 ports
  per group
  • Spanning Tree Protocol
  - 802.1D STP
  - 802.1w RSTP
  - 802.1s MSTP
  - STP Security: TC Protect, BPDU Filter/Protect,
  Root Protect
  • Loopback Detection
  • Flow Control
  - 802.3x Flow Control
  • Mirroring
  - Port Mirroring
  - CPU Mirroring
  - One-to-One
  - Many-to-One
  - Flow-Based
  - Ingress/Egress/Both
  • Device Link Detect Protocol (DLDP)
  • 802.1ab LLDP/ LLDP-MED
• VLAN :• VLAN Group
  - Max. 4K VLAN Groups
  • 802.1Q tag VLAN
  • MAC VLAN: 12 Entries
  • Protocol VLAN
  • GVRP
  • Voice VLAN
• Access Control List :• Support up to 230 entries
  • Time-Range
  - Time Slice
  - Week Time-Range
  - Absolute Time-Range
  - Holiday
  • Time-based ACL
  • MAC ACL
  - Source MAC
  - Destination MAC
  - VLAN ID
  - User Priority
  - Ether Type
  • IP ACL
  - Source IP
  - Destination IP
  - IP Protocol
  - TCP Flag
  - TCP/UDP Source Port
  - TCP/UDP Destination Port
  - DSCP/IP TOS
  • IPv6 ACL
  • Combined ACL
  • Rule Operation
  - Permit/Deny
  • Policy Action
  - Mirror
  - Rate Limit
  - Redirect
  - QoS Remark
  • ACL Rules Binding
  - Port Binding
  - VLAN Binding
  • Actions for flows
  - Mirror (to supported interface)
  - Redirect (to supported interface)
  - Rate Limit
  - QoS Remark
• Security :• AAA
  • 802.1X
  - Port based authentication
  - MAC (Host) based authentication
  - Authentication Method includes PAP/EAP-MD5
  - MAB
  - Guest VLAN
  - Support Radius authentication and
  accountability
  • IP/IPv6-MAC Binding
  - 512 Binding Entries
  - DHCP Snooping
  - DHCPv6 Snooping
  - ARP Inspection
  - ND Detection
  • IP Source Guard
  - 253 Entries
  - Source IP+Source MAC
  • IPv6 Source Guard
  - 183 Entries
  - Source IPv6 Address+Source MAC
  • DoS Defend
  • Static/Dynamic/Permanent Port Security
  - Up to 64 MAC addresses per port
  • Broadcast/Multicast/Unicast Storm Control
  - kbps/ratio control mode
  • Port Isolation
  • Secure web management through HTTPS with
  SSLv3/TLS 1.2
  • Secure Command Line Interface (CLI)
  management with SSHv1/SSHv2
  • IP/Port/MAC based access control
• Advanced Features :• Automatic Device Discovery
  • Batch Configuration
  • Batch Firmware Upgrading
  • Intelligent Network Monitoring
  • Abnormal Event Warnings
  • Unified Configuration
  • Reboot Schedule

MANAGEMENT

• Omada App :Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
• Centralized Management :• Omada Cloud-Based Controller
  • Omada Hardware Controller (OC300)
  • Omada Hardware Controller (OC200)
  • Omada Software Controller
• Cloud Access :Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
• Zero-Touch Provisioning :Yes. Requiring the use of Omada Cloud-Based Controller.
• Management Features :• Web-based GUI
  • Command Line Interface (CLI) through telnet
  • SNMPv1/v2c/v3
  • SNMP Trap/Inform
  • RMON (1,2,3,9 groups)
  • SDM Template
  • DHCP/BOOTP Client
  • Dual Image, Dual Configuration
  • CPU Monitoring
  • Cable Diagnostics
  • EEE
  • SNTP
  • System Log

OTHERS

• Certification :CE, FCC, RoHS
• Package Contents :• TL-SG2008
  • Power Adapter
  • Installation Guide
  • Rubber Feet
• System Requirements :Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
• Environment :• Operating Temperature: 0?~40? (32?~104?);
  • Storage Temperature: -40?~70? (-40?~158?)
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~90% non-condensing
