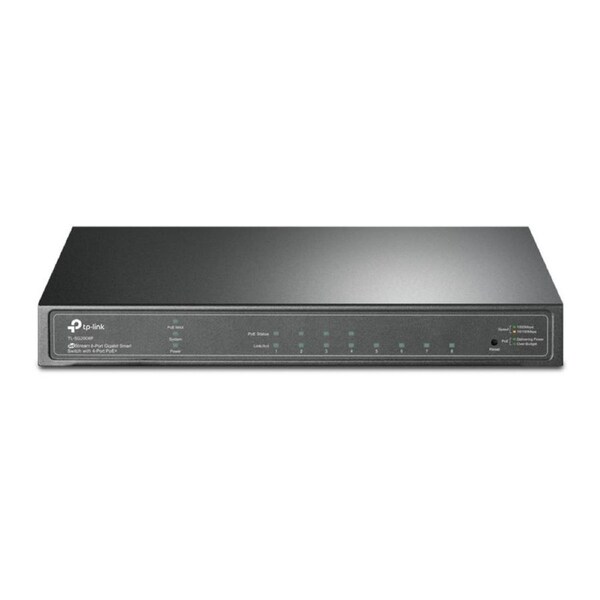

[SG2008P] JetStream 8-Port Gigabit Smart Switch with 4-Port PoE+ Fanles
TP-Link TL-SG2008P JetStream 8-Port Gigabit Smart Switch with 4-Port PoE+
- 62 W PoE Budget: 4x 802.3at/af-compliant PoE+ ports with a total power supply of 62 W*.
- Full Gigabit Ports: 4x gigabit PoE+ ports and 4x gigabit non-PoE ports provide high-speed connections.
- Integrated into Omada SDN: Centralized Cloud Management, and Intelligent Monitoring.
- Centralised Management: Cloud access and Omada app for ultra convenience and easy management.
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
- Optimise Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
HARDWARE FEATURES
- Standards and Protocols :IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
- Interface :• 8x 10/100/1000 Mbps RJ45 Ports (Ports 1-4 Support 802.3at/af PoE+)
• Auto-Negotiation/Auto MDI/MDIX - Network Media :• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) - Fan Quantity :Fanless
- Power Supply :• External Power Adapter (Output: 53.5 VDC/ 1.31 A)
- PoE Ports (RJ45) :• Standard: 802.3af/at compliant
• PoE Ports: 4 Ports
• Power Supply: 62 W* - Dimensions ( W x D x H ) :8.2 x 4.9 x 1.0 in (209 x 126 x 26mm)
- Max Power Consumption :• V1: 69.7 W (220 V/50 Hz) (with 62 W PD connected); 7.9 W (220 V/50 Hz) (no PD connected)
• V2: 73.8 W (220 V/50 Hz) (with 62 W PD connected)
• V3: 77.3 W (110 V/60 Hz) (with 62 W PD connected) - Max Heat Dissipation :• V1: 237.82 BTU/hr (220 V/50 Hz) (with 62 W PD connected); 26.95 BTU/hr (220 V/50 Hz) (no PD connected)
• V2: 251.84 BTU/hr (220 V/50 Hz) (with 62 W PD connected)
• V3: 263.6 BTU/hr (110 V/60 Hz) (with 62 W PD connected)
PERFORMANCE
- Bandwidth/Backplane :16 Gbps
- MAC Address Table :8k
- Packet Buffer Memory :4.1 Mbit
- Jumbo Frame :9 KB
SOFTWARE FEATURES
- Quality of Service :• 802.1p CoS/DSCP priority
• 8 priority queues
• Priority Schedule Mode
- SP (Strict Priority)
- WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
- Port/Flow-based Rating Limit
• Smoother Performance
• Storm Control
- Multiple Control Modes(kbps/ratio)
- Broadcast/Multicast/Unknown-Unicast Control - L2 and L2+ Features :• DHCP Relay
- DHCP VLAN Relay
• DHCP L2 Relay
• Link Aggregation
- Static link aggregation
- 802.3ad LACP
- Up to 8 aggregation groups and up to 8 ports
per group
• Spanning Tree Protocol
- 802.1D STP
- 802.1w RSTP
- 802.1s MSTP
- STP Security: TC Protect, BPDU Filter/Protect,
Root Protect
• Loopback Detection
• Flow Control
- 802.3x Flow Control
• Mirroring
- Port Mirroring
- CPU Mirroring
- One-to-One
- Many-to-One
- Flow-Based
- Ingress/Egress/Both
• Device Link Detect Protocol (DLDP)
• 802.1ab LLDP/ LLDP-MED - L2 Multicast :• 511 IPv4, IPv6 shared multicast groups
• IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
- IGMP Snooping Querier
- Static Group Config
• Multicast VLAN Registration (MVR)
• Multicast Filtering
• MLD Snooping
- MLD v1/v2 Snooping
- Fast Leave
- MLD Snooping Querier
- Static Group Config
• Limited IP Multicast (256 profiles and 16 entries per profile) - IPv6 Support :• IPv6 Dual IPv4/IPv6
• Multicast Listener Discovery (MLD) Snooping
• IPv6 neighbor discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP)
version 6
• TCPv6/UDPv6
• IPv6 applications
- DHCPv6 Client
- Ping6
- Tracert6
- Telnet (v6)
- IPv6 SNMP
- IPv6 SSH
- IPv6 SSL
- Http/Https
- IPv6 TFTP - VLAN :• VLAN Group
- Max. 4K VLAN Groups
• 802.1Q tag VLAN
• MAC VLAN: 12 Entries
• Protocol VLAN
• GVRP
• Voice VLAN - Access Control List :• Support up to 230 entries
• Time-Range
- Time Slice
- Week Time-Range
- Absolute Time-Range
- Holiday
• Time-based ACL
• MAC ACL
- Source MAC
- Destination MAC
- VLAN ID
- User Priority
- Ether Type
• IP ACL
- Source IP
- Destination IP
- IP Protocol
- TCP Flag
- TCP/UDP Source Port
- TCP/UDP Destination Port
- DSCP/IP TOS
• IPv6 ACL
• Combined ACL
• Rule Operation
- Permit/Deny
• Policy Action
- Mirror
- Rate Limit
- Redirect
- QoS Remark
• ACL Rules Binding
- Port Binding
- VLAN Binding
• Actions for flows
- Mirror (to supported interface)
- Redirect (to supported interface)
- Rate Limit
- QoS Remark - Security :• AAA
• 802.1X
- Port-based authentication
- MAC (Host) based authentication
- Authentication Method includes PAP/EAP-MD5
- MAB
- Guest VLAN
- Support Radius authentication and
accountability
• IP/IPv6-MAC Binding
- 512 Binding Entries
- DHCP Snooping
- DHCPv6 Snooping
- ARP Inspection
- ND Detection
• IP Source Guard
- 253 Entries
- Source IP+Source MAC
• IPv6 Source Guard
- 183 Entries
- Source IPv6 Address+Source MAC
• DoS Defend
• Static/Dynamic/Permanent Port Security
- Up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control
- kbps/ratio control mode
• Port Isolation
• Secure web management through HTTPS with
SSLv3/TLS 1.2
• Secure Command Line Interface (CLI)
management with SSHv1/SSHv2
• IP/Port/MAC-based access control - Advanced Features :• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule - MIBs :• MIB II (RFC1213)
• Bridge MIB (RFC1493)
• P/Q-Bridge MIB (RFC2674)
• Radius Accounting Client MIB (RFC2620)
• Radius Authentication Client MIB (RFC2618)
• Remote Ping, Traceroute MIB (RFC2925)
• Support TP-Link private MIBs
• RMON MIB(RFC1757, rmon 1,2,3,9)
MANAGEMENT
- Omada App :Yes, through
• Omada Cloud-Based Controller (Not Supported by TL-SG2008P v2)
• OC300
• OC200
• Omada Software Controller - Centralized Management :• Omada Cloud-Based Controller (Not Supported by TL-SG2008P v2)
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller - Cloud Access :Yes, through
• Omada Cloud-Based Controller (Not Supported by TL-SG2008P v2)
• OC300
• OC200
• Omada Software Controller - Zero-Touch Provisioning :Yes. Requiring the use of Omada Cloud-Based Controller (Supported by TL-SG2008P v1, v3 and above, while is not supported by TL-SG2008P v2)
- Management Features :• Web-based GUI
• Command Line Interface (CLI) through telnet
• SNMPv1/v2c/v3
• SNMP Trap/Inform
• RMON (1,2,3,9 groups)
• SDM Template
• DHCP/BOOTP Client
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• SNTP
• System Log
OTHERS
- Certification :CE, FCC, RoHS
- Package Contents :• TL-SG2008P
• Power Adapter
• Installation Guide
• Rubber Feet - System Requirements :Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
- Environment :• Operating Temperature: 0-40 ? (32-104 ?);
• Storage Temperature: -40-70 ? (-40-158 ?)
• Operating Humidity: 10-90% RH non-condensing
• Storage Humidity: 5-90% RH non-condensing
