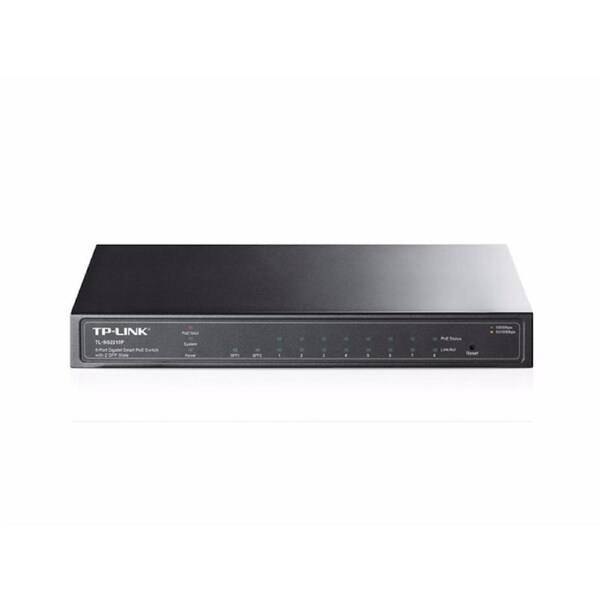

[SG2210P] 8 Port Gigabit Managed Ethernet Network Desktop Switch POE

TP-Link T1500G-10PS (TL-SG2210P) JetStream 8-Port Gigabit Smart PoE Switch with 2 SFP Slots

• Features 8 PoE ports, with a total PoE power budget of 53W and useful PoE power management features
• Gigabit Ethernet connections on all ports provide full speed of data transferring
• Advanced security features include IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, and Radius Authentication
• L2/L3/L4 QoS and IGMP snooping optimise voice and video applications
• WEB/CLI managed modes, SNMP, and RMON bring abundant management features
• Dual Firmware Image improves reliability and up-time of your network

HARDWARE FEATURES

• Standards and Protocols :IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1pp
• Interface :8 10/100/1000Mbps RJ45 Ports
  2 SFP slots
  (Auto-Negotiation/Auto MDI/MDIX)
• Network Media :10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
• Fan Quantity :Fanless
• Physical Security Lock :No
• Power Supply :100~240VAC, 50/60Hz
  External Power Adapter(Output: 48VDC/1.25A)
• PoE Ports (RJ45) :Standard: 802.3af compliant
  PoE Ports: 8 Ports
  Power Supply: 53W
• Dimensions ( W x D x H ) :209 * 126 * 26mm
• Max Power Consumption :9.92W (220V/50Hz with no PD connected)
  64.89W (110V/60Hz with 53W PD connected)
• Max Heat Dissipation :33.85 BTU/h (with no PD connected)
  221.40 BTU/h (with 53W PD connected)

PERFORMANCE

• Bandwidth/Backplane :20Gbps
• Packet Forwarding Rate :14.9Mpps
• MAC Address Table :8K
• Jumbo Frame :9KB

SOFTWARE FEATURES

• Quality of Service :• 802.1p CoS/ DSCP priority
  • 8 priority queues
  • Priority Schedule Mode
  - SP (Strict Priority)
  - WRR (Weighted Round Robin)
  • Queue Weight Config
  • Bandwidth Control
  - Port/Flow based Rating Limit
  • Smoother Performance
  • Actions for flows
  - Mirror(to supported interface)
  - Redirect(to supported interface)
  - Rate Limit
  - QoS Remark
  • Storm Control
  - Multiple Control Modes(kbps/ratio/pps)
  - Broadcast/Multicast/Unknown-Unicast Control

• L2 Features :• Link Aggregation
  - static link aggregation
  - Up to 8 aggregation groups and up to 8 ports per group
  - 802.3ad LACP
  • Spanning Tree Protocol
  - 802.1D STP
  - 802.1w RSTP
  - 802.1s MSTP
  - STP Security: Loop back detection, TC Protect, BPDU Filter/Protect, Root Protect
  • Loopback Detection
  • Flow Control
  - 802.3x Flow Control
  • Mirroring
  - Port Mirroring
  - One-to-One
  - Many-to-One
  - Flow-Based
  - Ingress/Egress/Both
  - CPU Mirroring
  • Device Link Detect Protocol(DLDP)

• L2 Multicast :• 512 IPv4,IPv6 shared multicast groups
  • IGMP Snooping
  - IGMP v1/v2/v3 Snooping
  - Fast Leave
  - IGMP Snooping Querier
  - IGMP Authentication
  - Static Group Config
  • MLD Snooping
  - MLD v1/v2 Snooping
  - Fast Leave
  - MLD Snooping Querier
  - Static Group Config
  • Multicast VLAN Registration
  • Multicast Filtering

• IPv6 Support :• IPv6 Dual IPv4/IPv6
  • Multicast Listener Discovery(MLD) Snooping
  • IPv6 neighbor discovery (ND)
  • Path maximum transmission unit (MTU) discovery
  • Internet Control Message Protocol (ICMP) version 6
  • TCPv6/UDPv6
  • IPv6 applications
  - DHCPv6 Client
  - Ping6
  - Tracert6
  - Telnet(v6)
  - IPv6 SNMP
  - IPv6 SSH
  - IPv6 SSL
  - Http/Https
  - IPv6 TFTP

• VLAN :• VLAN Group
  - Max. 4K VLAN Groups
  • 802.1Q tag VLAN
  • MAC VLAN
  • Protocol VLAN
  • GVRP
  • Voice VLAN

• Access Control List :• Support up to 230 entries
  • Time-Range
  - Time Slice
  - Week Time-Range
  - Absolute Time-Range
  - Holiday
  • Time-based ACL
  • MAC ACL
  - Source MAC
  - Destination MAC
  - VLAN ID
  - User Priority
  - Ether Type
  • IP ACL
  - Source IP
  - Destination IP
  - IP Protocol
  - TCP Flag
  - TCP/UDP Source Port
  - TCP/UDP Destination Port
  - DSCP/IP TOS
  • IPv6 ACL
  • Combined ACL
  • Rule Operation
  - Permit/Deny
  • Policy Action
  - Mirror
  - Rate Limit
  - Redirect
  - QoS Remark
  • ACL Rules Binding
  - Port Binding
  - VLAN Binding

• Security :• AAA
  • 802.1X
  - Port based authentication
  - MAC(Host) based authentication
  - Authentication Method includes PAP/EAP-MD5/EAP-TLS/EAP-TTLS/EAP-PEAP
  - MAB
  - Guest VLAN
  - Support Radius authentication and accountability
  • IP/IPv6-MAC Binding
  - 512 Binding Entries
  - DHCP Snooping
  - DHCPv6 Snooping
  - ARP Inspection
  - ND Detection
  • IP Source Gurad
  - 253 Entries
  - Source IP+Source MAC
  • IPv6 Source Gurad
  - 183 Entries
  - Source IPv6 Address+Source MAC
  • DoS Defend
  • Static/Dynamic/Permanent Port Security
  - Up to 64 MAC addresses per port
  • Broadcast/Multicast/Unicast Storm Control
  - kbps/ratio/pps control mode
  • Port Isolation
  • Secure web management through HTTPS with SSLv3/TLS1.0
  • Secure Command Line Interface (CLI) management with SSHv1/SSHv2
  • IP/Port/MAC based access control

• Management :• Web-based GUI and CLI management
  • SNMPv1/v2c/v3
  • SNMP Trap/Inform
  • RMON (1,2,3,9 groups)
  • SDM Template
  • DHCP/BOOTP Client
  • Dual Image, Dual Configuration
  • CPU Monitoring
  • Cable Diagnostics
  • EEE
  • System Log
  • 802.1ab LLDP/ LLDP-MED

• MIBs :• MIB II (RFC1213)
  • Interface MIB (RFC2233)
  • Ethernet Interface MIB (RFC1643)
  • Bridge MIB (RFC1493)
  • P/Q-Bridge MIB (RFC2674)
  • RMON MIB (RFC2819)
  • RMON2 MIB (RFC2021)
  • Radius Accounting Client MIB (RFC2620)
  • Radius Authentication Client MIB (RFC2618)
  • Remote Ping, Traceroute MIB (RFC2925)
  • Support TP-Link private MIBs


OTHERS

• Certification :CE, FCC, RoHS
• Package Contents :T1500G-10PS
  Power Adapter
  Installation Guide
  Resource CD
  Rubber Feet
• System Requirements :Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8, MAC® OS, NetWare®, UNIX® or Linux.
• Environment :Operating Temperature: 0?~40? (32?~104?);
  Storage Temperature: -40?~70? (-40?~158?)
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~90% non-condensing
• Warranty :Limited 5-Year Warranty
