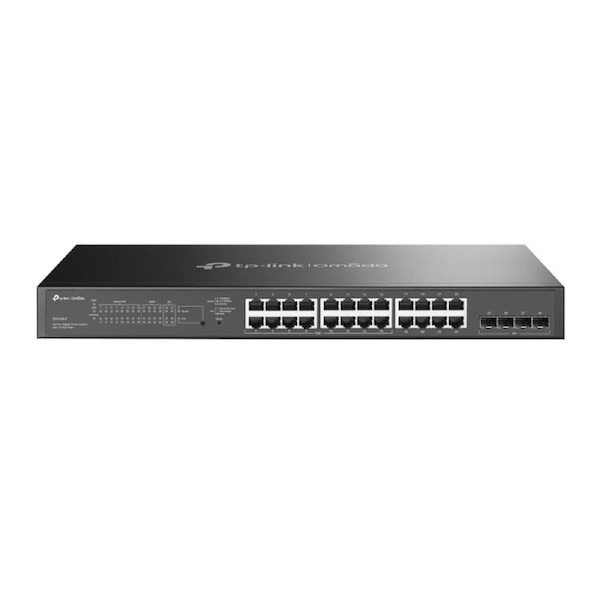

[SG2428LP] Omada 28-Port Gigabit Smart Switch with 16-Port PoE+
TP-Link SG2428LP, Omada 28-Port Gigabit Smart Switch with 16-Port PoE+
- 16x Gigabit 802.3af/at PoE+ ports
- 8xGigabit non-PoE RJ45 portsand 4x Gigabit SFP slots
- 150 W total PoE budget with up to 30 W PoE output per port*
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI,SNMP,and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, and IGMP Snooping
- Fanless design for quiet operation
- Durable metal casing and rackmountable design
- Learn more about OmadaPoE technology >
- Learn more about Omada Cloud SDN>?
HARDWARE FEATURES
- Interface :16x 10/100/1000 Mbps PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
8x 10/100/1000 Mbps non-PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
4x Gigabit SFP Slots - Fan Quantity :Fanless
- Physical Security Lock :?
- Power Supply :100-240V AC, 50/60Hz
- PoE Ports (RJ45) :Standard: 802.3at/af compliant
PoE+ Ports: 16 Ports (up to 30 W PoE Output per Port)
PoE Power Budget: 150 W* - Dimensions ( W x D x H ) :17.3x8.7x1.73 in (440x220x44 mm)
- Mounting :Rack Mountable
- Max Power Consumption :184.7 W (110V/60Hz) (with 150 W PD connected)
- Max Heat Dissipation :628.0 BTU/hr (110V/60 Hz) (with 150 W PD connected)
PERFORMANCE
- Switching Capacity :56 Gbps
- Packet Forwarding Rate :41.66 Mpps
- MAC Address Table :8K
- Packet Buffer Memory :4.1 Mbit
- Jumbo Frame :9 KB
SOFTWARE FEATURES
- Quality of Service :802.1p CoS/DSCP priority
8 priority queues
Priority Schedule Mode: SP (Strict Priority), WRR (Weighted Round Robin)
Queue Weight Config
Bandwidth Control: Port/Flow-based Rating Limit
Smoother Performance
Storm Control: Multiple Control Modes(kbps/ratio), Broadcast/Multicast/Unknown-Unicast Control - L2 and L2+ Features :16 IP Interfaces: Support IPv4/IPv6 Interface
Static Routing: 32 IPv4/IPv6 Static Routes
DHCP Server
DHCP Relay
- DHCP Interface Relay
- DHCP VLAN Relay
DHCP L2 Relay
Static ARP
Proxy ARP
Gratuitous ARP
Link Aggregation
Spanning Tree Protocol
Loopback Detection
802.3x Flow Control
Mirroring
Device Link Detect Protocol (DLDP)
802.1ab LLDP/ LLDP-MED - L2 Multicast :511 IPv4, IPv6 shared multicast groups
IGMP Snooping
Multicast VLAN Registration (MVR)
Multicast Filtering
Limited IP Multicast (256 profiles and 16 entries per profile) - Advanced Features :Automatic Device Discovery†
Batch Configuration†
Batch Firmware Upgrading†
Intelligent Network Monitoring†
Abnormal Event Warnings†
Unified Configuration†
Reboot Schedule† - VLAN :VLAN Group: Max. 4K VLAN Groups
802.1Q tag VLAN
MAC VLAN: 12 Entries
Protocol VLAN
GVRP
Voice VLAN - Access Control List :Support up to 230 entries
Time-based ACL
MAC ACL
IP ACL
IPv6 ACL
Combined ACL
Rule Operation: Permit/Deny
Policy Action
- Mirroring
- Redirect
- Rate Limit
- QoS Remark
ACL Rules Binding
- Port Binding
- VLAN Binding - Security :IP-MAC-Port Binding
AAA
802.1X
- Port based authentication
- MAC (Host) based authentication
- Authentication Method includes PAP/EAP-MD5
- MAB
- Guest VLAN
- Radius authentication and accountability support
IP/IPv6-MAC Binding
- 512 Binding Entries
- DHCP Snooping
- DHCPv6 Snooping
- ARP Inspection
- ND Detection
IP Source Guard
- 253 Entries
- Source IP+Source MAC
IPv6 Source Guard
- 183 Entries
- Source IPv6 Address+Source MAC
DoS Defend
Static/Dynamic/Permanent Port Security: Up to 64 MAC addresses per port
Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IP/Port/MAC-based access control - IPv6 :IPv6 Static Routing and ACL
IPv6 Dual IPv4/IPv6
IPv6 Interface
Multicast Listener Discovery (MLD) Snooping
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet(v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP - MIBs :MIB II (RFC1213)
Bridge MIB (RFC1493)
P/Q-Bridge MIB (RFC2674)
Radius Accounting Client MIB (RFC2620)
Radius Authentication Client MIB (RFC2618)
Remote Ping, Traceroute MIB (RFC2925)
Support TP-Link private MIBs
RMON MIB(RFC1757, rmon 1,2,3,9)
MANAGEMENT
- Omada App :Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
- Centralized Management :Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller - Cloud Access :Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
- Zero-Touch Provisioning :Yes. Requiring the use of Omada Cloud-Based Controller
- Management Features :Web-based GUI
Command Line Interface (CLI) through telnet
SNMPv1/v2c/v3
SNMP Trap/Inform
RMON (1,2,3,9 groups)
SDM Template
DHCP/BOOTP Client
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
SNTP
System Log
OTHERS
- Certification :CE, FCC
- Package Contents :SG2428LP
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet - System Requirements :Microsoft® Windows® XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
- Environment :Operating Temperature: 0-40 ? (32-104 ?);
Storage Temperature: -40-70 ? (-40-158 ?)
Operating Humidity: 10-90% RH non-condensing
Storage Humidity: 5-90% RH non-condensing
