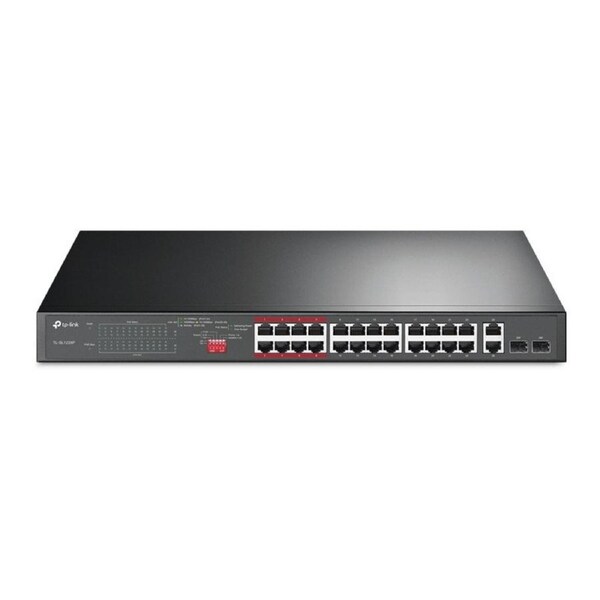

[TL-SL1226P] 24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch

TP-Link TL-SL1226P 24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch

• 24x PoE+ 10/100 Mbps RJ45 ports, 2x Gigabit RJ45 ports, and 2x combo Gigabit SFP slots
• High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports*
• Up to 250 m data and power PoE transmission range under Extend Mode**, ideal for surveillance system
• Priority Mode ensures high priority of ports 1-8 to guarantees the quality of sensitive applications like video monitor
• Isolation Mode allows one-click client traffic separation for higher security and performance
• Plug and play, with no configuration and installation needed

HARDWARE FEATURES

• Interface :24x PoE+ 10/100 Mbps RJ45 Ports
  2x 10/100/1000 Mbps RJ45 Ports
  2x Combo Gigabit SFP Slots
• Network Media :10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  EIA/TIA-568 100? STP (maximum 100m)
  100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  EIA/TIA-568 100? STP (maximum 100m)
  1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
  EIA/TIA-568 100? STP (maximum 100m)
  1000BASE-X MMF, SMF
• Fan Quantity :2 Fans
• Physical Security Lock :Yes
• Power Supply :100-240 VAC, 50/60 Hz
• Packet Forwarding Rate :6.5472 Mpps
• PoE+ Ports(RJ45) :Standard: 802.3at/802.3af compliant
  PoE Ports: Port 1 - Port 24
  PoE Power Budget: 250 W
• Mac Address Table :8 K
• Jumbo Frame :10 KB
• Switching Capacity :8.8 Gbps
• Dimensions ( W x D x H ) :17.3 x 7.1 x 1.7 in (440 x 180 x 44 mm)
• Max Power Consumption :18.32 W (220/50 Hz. no PD connected)
  294 W (220/50 Hz. with 250 W PD connected)
• Max Heat Dissipation :62.47 BTU/h (no PD connected)
  1002.54 BTU/h (with 250 W PD connected)

SOFTWARE FEATURES

• Advanced Features :Compatible With IEEE 802.3at/af Compliant PDs
  Extend Mode (Up to 250m PoE power supply and data transmission)
  Priority Mode
  Isolation Mode
  PD Detection
  Intelligent Power Supply
  Mac Address Auto-Learning and Auto-Aging
  IEEE802.3x Flow Control
• Transmission Method :Store-And-Forward

OTHERS

• Certification :CE, FCC, RoHS
• Package Contents :TL-SL1226P
  Power Cable
  Installation Guide
  Two mounting brackets and the fittings
• Environment :Operating Temperature: 0-50 °C (32-122 °F)
  Storage Temperature: -40-70 °C (-40-158 °F)
  Operating Humidity: 10-90% non-condensing
  Storage Humidity: 5-90% non-condensing
