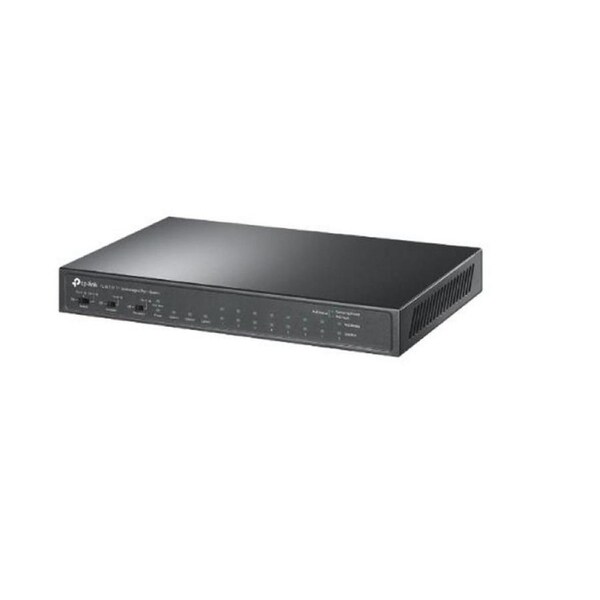

[TL-SL1311P] 8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch
TP-Link TL-SL1311P 8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+
- 8x 10/100 Mbps RJ45 Ports, 2x Gigabit RJ45 Ports, 1x Gigabit SFP Port
- 8x PoE+ ports transfer data and power on individual cables
- Works with IEEE 802.3af/at compliant PDs
- Supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 65 W for 8 PoE ports*
- Up to 250 m data and power transmitting range under Extend Mode**
- Isolation Mode allows one-click client traffic separation for higher security and performance
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Fanless Design reduces power consumption and works silently in its location
- Plug and play with no configuration required
HARDWARE FEATURES
- Interface :• 8x 10/100 Mbps 802.3af/at PoE+ Ports, 2x Gigabit RJ45 Ports, 1x Gigabit SFP Port
• AUTO Negotiation
• AUTO MDI/MDIX - Network Media :• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100? STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100? STP (maximum 100m) - Fan Quantity :Fanless
- Physical Security Lock :Yes
- External Power Supply :External Power Adapter (Output: 53.5 VDC / 1.31 A)
- Packet Forwarding Rate :5.6544 Mpps
- PoE Ports (RJ45) :• Standard: 802.3 af/at compliant
• PoE Ports: Ports 1-8
• Power Supply: 65 W - Mac Address Table :2K
- Jumbo Frame :16 KB
- Switching Capacity :7.6 Gbps
- Dimensions ( W x D x H ) :8.2 x 4.9 x 1.0 in (209 x 126 x 26 mm)
- Max Power Consumption :• 5.61 W (220 V/50 Hz. no PD connected)
• 77.32 W (110 V/50 Hz. with 65 W PD connected) - Max Heat Dissipation :• 19.13 BTU/h (no PD connected)
• 263.7 BTU/h (with 65 W PD connected)
SOFTWARE FEATURES
- Transmission Method :Store-And-Forward
- Advanced Functions :• Compatible With IEEE 802.3af/at Compliant PDs
• Extend Mode Button (Ports 1-4 and Ports 1-8, Up to 250 m PoE power supply and data transmission)
• Isolation Mode Button (Ports 1-8)
• PoE Auto Recovery Button (Ports 1-8)
• Mac Address Auto-Learning and Auto-Aging
• IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode
OTHERS
- Certification :FCC, CE, RoHS
- Package Contents :• TL-SL1311P
• Power Adapter
• Installation Guide - Environment :• Operating Temperature: 0-40 ? (32-104 ?)
• Storage Temperature: -40-70 ? (-40-158 ?)
• Operating Humidity: 10-90% RH non-condensing
• Storage Humidity: 5-90% RH non-condensing
