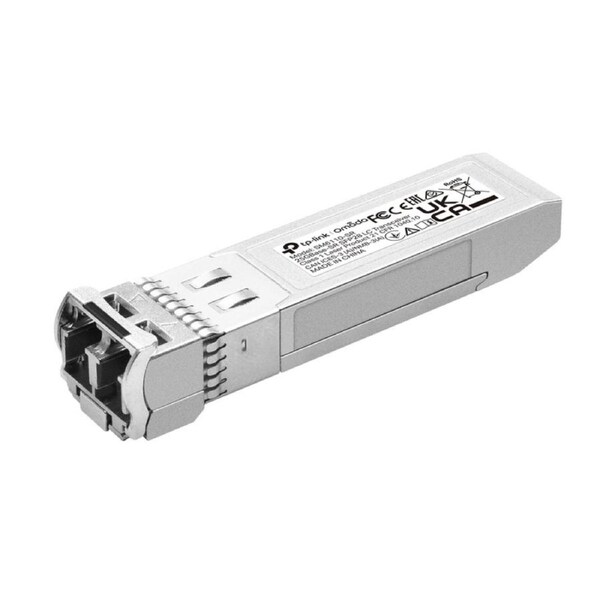

[SM6110-SR] Omada 25GBase-SR SFP28 LC Transceiver, Hot-Pluggable

TP-Link SM6110-SR, Omada 25GBase-SR SFP28 LC Transceiver

• Multi-mode SFP+/SFP28 LC Transceiver
• Hot-Pluggable with maximum flexibility
• Supports Digital Diagnostic Monitoring (DDM)
• Low Power Consumption no more than 1 W
• Compatible with 10G/25G Small Form Pluggable Multi-Source Agreement (SFP+/SFP28 MSA)
• Compatible with switches with 25G ports like SX6632YF; and 10G ports like SG3428X and SG3452X.

PACKAGE CONTENTS

• Package Contents :SM6110-SR
  Installation Guide

HARDWARE FEATURES

• DDM :Yes
• SFP-MSA :Yes
• Hot Swappable :Yes
• Dimensions ( W x D x H ) :2.24*0.55*0.53 in (57*14*13.45 mm)

Transceiver

• Standards and Protocols :IEEE 802.3ae, 802.3by
  SFF-8402, SFF-8431, SFF-8432, SFF-8472
  eCPRI, CPRI
  TCP/IP
• Wavelength :850nm
• Power Supply :3.3V
• Fiber Type :50/125um or 62.5/125um Multi-mode
• Max. Cable Length :70m (OM3) @25.78Gbps, 100m (OM4) @25.78Gbps, 300m (OM3) @10.31Gbps
• Support Data Rate :Dual Rate 25.78 Gbps and 10.31 Gbps
• Connector :Duplex LC/UPC
• Regulatory Compliance :CE, FCC, RoHS
• Environment :Operating Temperature: 0°C to 70°C (32-158 ?)
  Storage Temperature: -40°C to 85°C (-40°F to 185°F)
  Operating Humidity: 10% to 90% RH non-condensing
  Storage Humidity: 5% to 90% RH non-condensing
