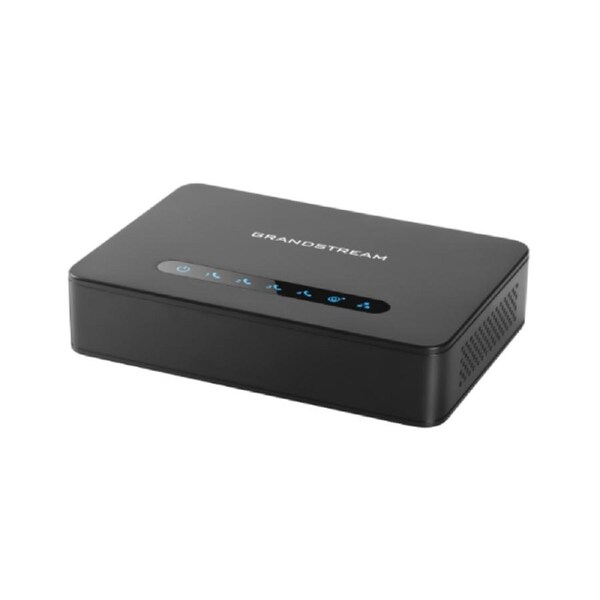

Grandstream Ht813 Analog Voip Gateway Nat Router
GRANDSTREAM HT813 ANALOG VOIP GATEWAY NAT ROUTER
The Grandstream HT813 is a VoIP analog telephone adapter that features 1 analog telephone FXS port and 1 PSTN line FXO port in order to offer backup lifeline support using a PSTN line. The integration of a FXO and FXS port enables this hybrid ATA to support remote calling to and from the PSTN line.
For added flexibility, the FXS port extends VoIP service to one analog device. Users can convert their analog technology to VoIP thanks to the HT813's ultra-compact size, HD voice quality, advanced VoIP functionality, high-end security protection and multiple auto provisioning options. These advanced features also allow service providers to offer high grade IP service to customers looking to upgrade to VoIP.
FEATURES
Supports 2 SIP profiles through 1 FXS port and 1 FXO port
Dual 100Mbps LAN and WAN ports
Lifeline support (FXS port will be hard-relayed to FXO port) in case of power outage
3-way voice conferencing per port
Automated & secure provisioning options using TR069
Supports T.38 Fax for reliable Fax-over-IP
Failover SIP server automatically switches to secondary server if main server loses connection
Strong AES encryption with security certificate per unit
SPECIFICATIONS
Product Code: HT813
Telephone Interfaces: One (1) RJ11 FXS port, One (1) RJ11 FXO PSTN line port with lifeline support
Network Interface: Two (2) 10/100Mbps ports (RJ45) with integrated NAT router
LED Indicators: POWER, LAN, WAN, FXS, FXO
Factory Reset Button: Yes
Telephony Features: Caller ID display or block, call waiting, flash, blind or attended transfer, forward, hold, do not disturb, 3-way conference
Voice Codecs: G.711 with Annex I (PLC) and Annex II (VAD/CNG), G.723.1, G.729A/B, G.726, iLBC, OPUS, dynamic jitter buffer, advanced line echo cancellation
Fax over IP: T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax Pass-through
Short/Long Haul Ring Load: 3 REN: Up to 1km on 24 AWG
Caller ID: Bellcore Type 1 & 2, ETSI, BT, NTT, and DTMF-based CID
Disconnect Methods: Busy Tone, Polarity Reversal/Wink, Loop Current
Network Protocols: TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS, DHCP, NTP, TFTP, TELNET, STUN, SIP (RFC3261), SIP over TCP/TLS, SRTP, TR-069
QoS: Layer 2 (802.1Q VLAN, SIP/RTP 802.1p) and Layer 3 (ToS, Diffserv, MPLS)
DTMF Method: In-audio, RFC2833 and/or SIP INFO
Provisioning and Control: HTTP, HTTPS, TFTP, SSH, TR-069, secure and automated provisioning using AESencryption, syslog
Media: SRTP
Control: TLS/SIPS/HTTPS
Management: Syslog support, telnet, SSH, remote management using web browser
Universal Power Supply: Input: 100-240VAC, 50-60Hz, Output: 12V/0.5A
Environmental: Operational: 32º - 104ºF or 0º - 40ºC, Storage: 14º - 140ºF or -10º - 60ºC, Humidity: 10 - 90% Non-condensing
Dimension and Weight: 130.5 x 90.5 x 29 mm (L x W x D), Weight: 0.142Kg
Compliance: FCC/CE/C-TICK/ITU-K.21
PACKAGE CONTENTS
1 x Grandstream Ht813 Analog Voip Gateway Nat Router
1 x 12VDC/1A PSU
