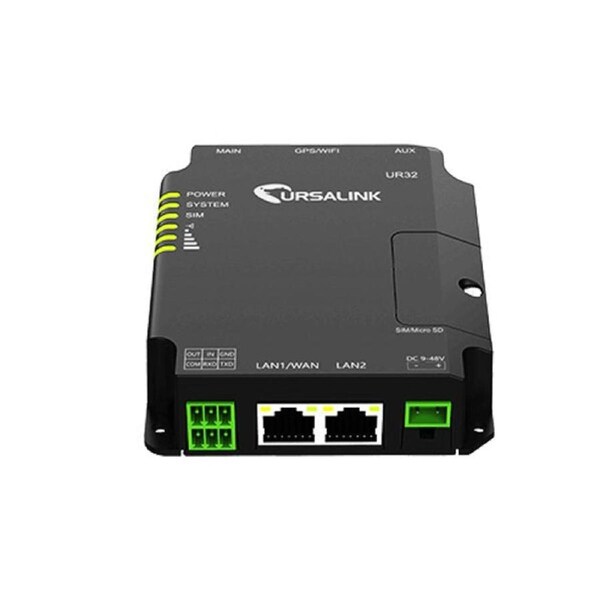

Milesight Ur32 Industrial 3G 4G Lte Poe Din Mountable Router
MILESIGHT UR32 INDUSTRIAL 3G/4G/LTE POE DIN MOUNTABLE ROUTER WITH I/O, SERIAL AND WI-FI
Milesight UR32 Industrial 3G/4G/LTE PoE DIN Mountable Industrial Router with Wi-Fi. The Milesight UR32 is a cost-effective industrial cellular router with embedded intelligent software features that are designed for multiple M2M/IoT applications. Global WCDMA and 4G LTE carrier support makes this great for operators when maximizing uptime. Integrating an embedded cellular modem and dual SIM function, the UR32 provides 3G/4G connectivity with up to 150 Mbps download and 50 Mbps uplink, it also has 2 fast Ethernet ports and supports 802.11b/g/n WiFi. Easy deployment and comprehensive remote device management makes the UR32 versatile in most IoT/M2M applications.
FEATURES
Dual SIM cards for backup between multiple carriers
Ethernet, I/O, serial port, Wi-Fi, GPS for connecting diverse field assets
Rugged enclosure, optimized for DIN rail or shelf mounting
SPECIFICATIONS
Product Code: UR32-L00AU-W-P
CPU: 528 MHz, ARM Cortex A7
Memory: 128 MB Flash, 128 MB DDR3 RAM
Storage: 1 × Micro SD
Interfaces: 1 × WAN + 1 × LAN or 2 × LAN (PoE PSE Optional)
Data Rate: 10/100 Mbps (Auto-Sensing)
Connectors: 2 × 50 O SMA (Center PIN: SMA Female)
SIM Slots: 2
Freq bands: 3G:B1/B2/B5/B8 WCDMA, 4G:B1/B2/B3/B4/B5/B7/B8/B28@FDD LTE, B40@TDD LTE
WiFi Modes: AP or client
Serial: 1 × RS232 Terminal block ( RS485 Optional) Baud Rate 300bps to 230400bps
Digital IO: 1 × DI + 1 × DO
Network Protocols: PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF,
DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QoS, SNTP, Telnet, VLAN, SSH
Power Input Connector: 2-pin with 5.08 mm terminal block
Input Voltage: 9-48 VDC (48 V power input is needed for PoE output)
Power Consumption: Typical 1.9 W, Max 2.4 W (In Non-PoE mode)
Power Output: 2 × 802.3 af/at PoE output
Ingress Protection: IP30
Housing & Weight: Metal, 271 g
Dimensions: 108 x 90 x 26 mm (4.25 x 3.54 x 1.02 in)
Mounting: Desktop, Wall or DIN Rail Mounting
PACKAGE CONTENTS
1 x Milesight Ur32 Industrial 3G 4G Lte Poe Din Mountable Router
1 x PSU (48v)
2 x SMA Mobile antennas
1 x RP-SMA Wifi Antenna
1 x DIN Rail mount
1 x Ethernet cable
1 x Screw pack
