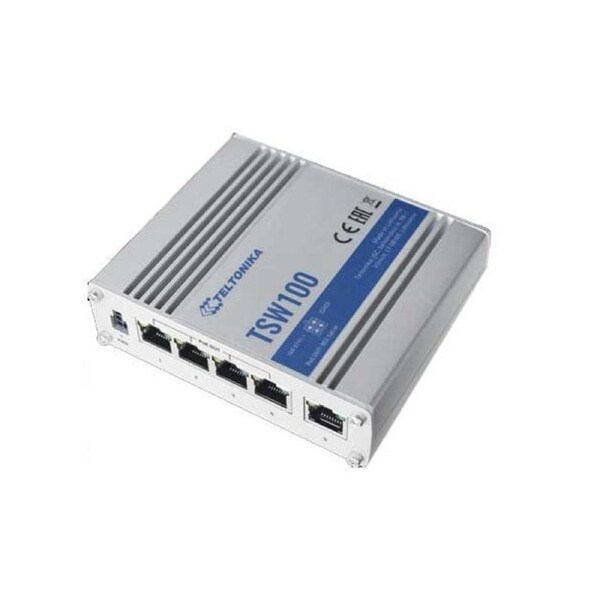

Teltonika Unmanaged Industrial Af At Poe Gigabit Ethernet Switch
TELTONIKA UNMANAGED INDUSTRIAL AF/AT POE GIGABIT ETHERNET SWITCH
Teltonika Unmanaged Industrial 802.3AF/AT Gigabit Ethernet PoE switch. This is the first industrial unmanaged switch from Teltonika Networks. The TSW100 is equipped with five Gigabit Ethernet ports, four of which support IEEE802.3af and IEEE802.3at PoE standards. This rugged industrial switch is ideal for professional high bandwidth applications where it is necessary to provide both reliable data connection and power supply. Note: Higher power versions of the PSU are available.
FEATURES
Gigabit Ethernet with speeds up to 1000 Mbps
Compact size, easy installation
AF/AT PoE Support on 4 ports
-40 to 75°C operating temperature range
Rugged Aluminium housing
Mounting Options: PR5MEC00, PR5MEC11, PR5MEC12, PR5MEC22
SPECIFICATIONS
Product code: TSW100
Ethernet Ports: 5 x LAN ports 10/100/1000 Mbps, 4 x AF/AT PoE
Bandwidth: 10 Gbps
Packet buffer: 128 KB
MAC address table size: 2K entries
Power supply: 7 - 58 VDC, 4 pin DC connector
Input voltage range: 44 - 57 V (PoE operates properly only when connected power supply outputs: 44 V or higher voltage)
Max PoE power budget at PSE: 120 W (Default Teltonika provided power supply only allows 60 W PoE power budget at PSE, to reach maximum 120 W at PSE, a >130 W power supply must be used)
Power consumption: Idle < 2 W, max < 9 W (no PoE device connected)
PoE 802.3af/at: LAN port 1 - 4
Auto MDI/MDI-X Cable Detection: Yes
PoE Max Power Per Port: 30 W (at PSE)
Total PoE Power Budget: 120 W* (at PSE)
IP rating: IP30
Operating temperature: -40°C to 75°C
Housing: Full aluminium with grounding screw
Weight: 340 g
Dimensions: (W x H x D) 115 x 32 x 95 mm
Mounting options: Desktop, wall or DIN Rail mountable (additional kit needed)
PACKAGE CONTENTS
1 x Teltonika Unmanaged Industrial Af At Poe Gigabit Ethernet Switch
1 x Power Supply (Input: 1.8 A @ 100-240 VAC, Output: 50 VDC, 1.3 A, 4 pin plug)
