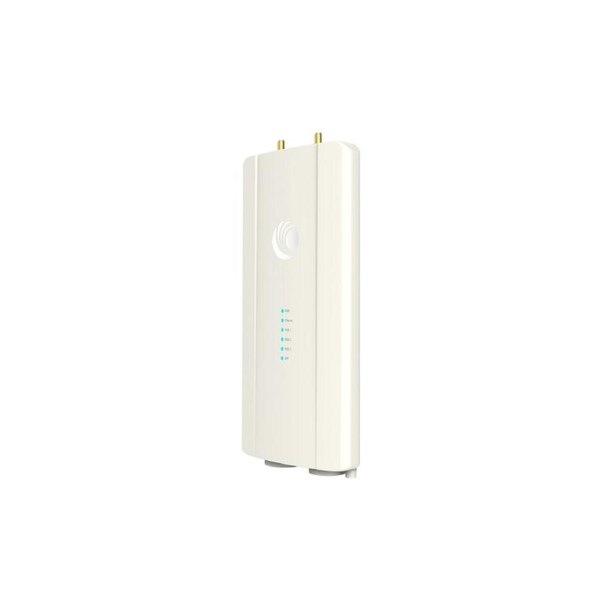

Cambium Epmp 5 Ghz Force 400C Connectorised Point To Point Radio
CAMBIUM EPMP 5 GHZ FORCE 400C CONNECTORISED 802.11AX 1 GBPS POINT TO POINT RADIO
Cambium Networks introduces the ePMP Force 425 and Force 400C point-to-point solutions which deliver up to 1 Gbps throughput at a breakthrough price point based on the latest 802.11ax standards. The Force 400 Series is the ideal solution for service providers looking to deliver high-capacity access services to enterprise and residential customers. It also serves as a low-cost backhaul for MicroPOP's and outdoor Wi-Fi access points that require lots of capacity at moderate range without the overhead of licensed microwave. With an integrated SFP port and optional GPON ONU module, the Force 425 makes a great fiber extension to reach places where fiber cannot.
For longer range applications, the Force 400C is a connectorized option with two RP-SMA RF interfaces for use with larger parabolic dishes or horn antennas.
Leveraging the latest technology from the 802.11ax standard and Cambium Networks proprietary ePTP mode, the Force 425/400C delivers high spectral efficiency with features such as 1024 QAM, 80 MHz channels, a highly efficient frame structure and the proven ePTP air interface. The Force 400 Series delivers Gbps performance with less than 5 ms latency.
The Force 400 series has enterprise-grade security with 128-bit AES over-the-air encryption, secure management interfaces with roles-based authentication and standards-based device authentication including RADIUS support.
Force 425/400C is built for the real world with IP67 ruggedization, simplified mounting scheme and Cambium Networks' 3-year hardware warranty.
Plan and manage your Force 425/400C deployments with Cambium Networks LINKPlanner and cnMaestro.
FEATURES
Standard 3 year warranty included
802.11ax based solution delivering up to 1 Gbps capacity
High-capacity enterprise access
Low-cost WISP backhaul
Wi-Fi hotspot backhaul
GPON last mile
200K PPS with focus on outstanding RFC 2544 performance
Free Cloud or Virtual On-premises management with cnMaestro
SPECIFICATIONS
Channel Width MHz: 20 / 40 / 80
Proprietary Physical Layer: 802.11ax, 2x2 MIMO/OFDM
Channel Spacing: Configurable in 5 MHz increments
Frequency Range: Wide Band Operation 4910 - 6135 MHz (Note: Country dependent based on local regulations. Support of 5870 to 6135 coming in a future software upgrade.)
MAC Layer (Media Access Control): Cambium Proprietary
Ethernet Interface: 100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts; 10 Gigabit SFP cage for optional SFP modules
Protocols Used: IPv4/IPv6 (Dual Management Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH
Network Management: IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks cnMaestro™
Encryption: 128-bit Over-the-Air Encryption
VLAN: 802.1Q with 802.1p priority
ARQ: Yes
Maximum Capacity: 1 Gbps
Latency: < 5 ms
Packets Per Second: 200K PPS
Modulation Levels (Adaptive): MCS 0 (BPSK) to MCS 11 (1024 QAM-5/6)
Transmit Power Range: +3 to +28 dBm (combined, to regional EIRP limit) (1 dB interval)
Connectors: 1 x RJ-45, 1 x SFP, 2 x RP-SMA
Surge Suppression: 1 Joule Integrated
Environmental: IP67
Temperature: -30°C to 65°C
Weight: 1.3 kg
Wind Survival: 180 km/h
Dimensions (H x W x D): 256 mm x 125 mm x 46 mm
Pole Diameter Range: Center: 3.1 to 7.6 cm
Power Consumption: 28 W
Input Voltage: 802.3at or Passive PoE 44-59 V
PACKAGE CONTENT
1 x Cambium Epmp 5 Ghz Force 400C Connectorised Point To Point Radio
1 x Power Supply
1 x Pole Mount Bracket
