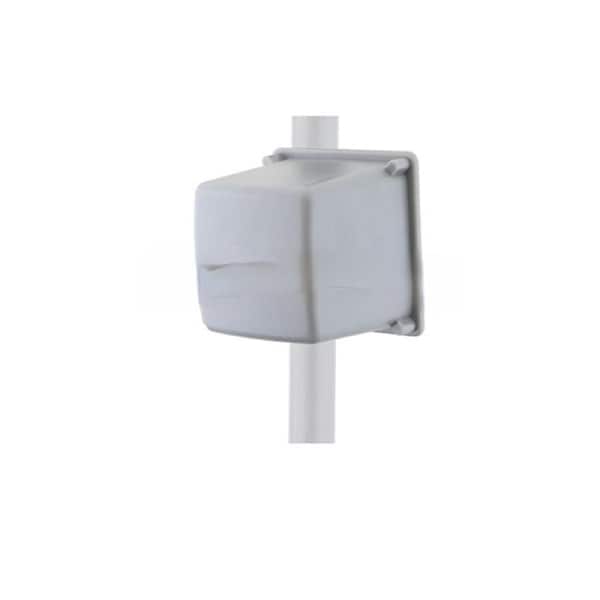

L Com 10 Dbi Dual Polarized Mini Mimo Antenna
L-COM 2.4/5.8 GHZ 10 DBI DUAL POLARIZED MINI MIMO ANTENNA
The l-com 2.4/5.8ghz 10 dbi dual polarity mimo panel antenna - n-female connectors is a very compact panel 2.4/5.8 ghz multiple-input and multiple-output (mimo) patch antenna is designed to operate with many manufacturers' enterprise-class 802.11n mimo access points (aps). It features two independent dual-band, vertically polarized antennas in a single housing, making it an ideal and aesthetically pleasing antenna to support demanding indoor or outdoor applications in next generation ieee 802.11n and 802.11ac wireless communication systems.
The antenna is fed via two n-female ports, one for vertically polarized and one for horizontally polarized signals. This feature makes this antenna ideal for polarization diversity systems.
Designed for all weather operation, the hg2458-10dp features drain holes in the radome to help prevent moisture build-up inside the antenna. The antenna is supplied with a 30 degree tilt and swivel mast mount kit. This allows the antenna to be positioned for optimal performance. It can be adjusted up or down from 0° to 30°. It can be mounted to a 1" (25.4 mm) to 1.7" (43.2 mm) dia. Masts.
FEATURES
Compact size, 4 x 4 x 3.5 in.
Durable UV-stable ABS radome
All weather operations
Dual polarity feed system in single enclosure
MIMO - Multiple Input/Multiple Output
SPECIFICATIONS
Frequency Range: 2400-2500/4900-5850 MHz
Polarisation: Vertical and Horizontal
Vertical Beamwidth: 57 deg @2.4 GHz/ 42 deg @ 4.9-5.8 GHz
Horizontal Beamwidth: 90 deg @ 2.4 GHz/ 70 deg @ 4.9-5.8 GHz
Max Power: 50W
Impedance: 50 Ohm
Isolation: >28dB
VSWR: < 2.0 (V-Pol)/ < 2.3 (H-Pol)
Front to Back Ratio: = 15dB
Lightning Protection: DC Ground
Connectors: (2) Integral N-Female
Mounting: 1 to 1.7 Inch (25.4 to 43.2 mm) dia Masts
Vertical Tilt: 0 to 30 deg
Radome: UV-Protected ABS
Dimensions: 104 x 104 x 90mm
Antenna Weight: 1.1 lbs (0.5 kg)
Mounting bracket weight: 0.4 lbs (0.18 kg)
Operating Temperature: -40 deg C to 60 deg C
Rated Wind Velocity: 210 km/h
PACKAGE CONTENT
1 x L Com 10 Dbi Dual Polarized Mini Mimo Antenna
1 x Pole Mount
