Simplecom Ec415B Nvme M2 Ssd
SIMPLECOM EC415B NVME M2 SSD

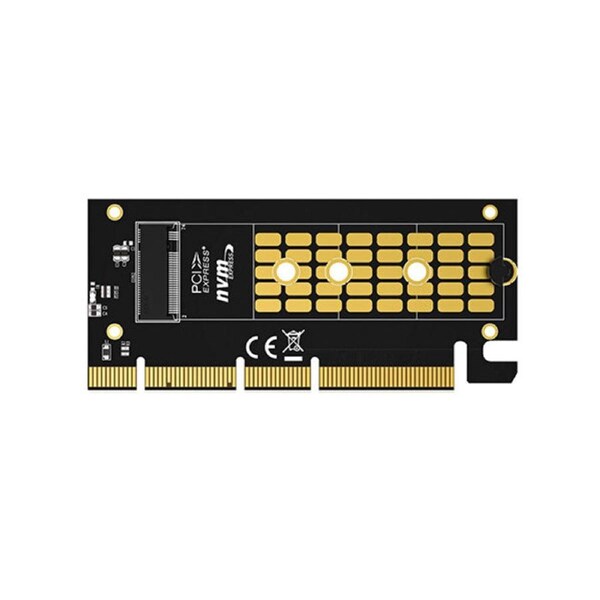

Simplecom EC415B NVMe M.2 SSD to PCIe x4 x8 x16 Expansion Card with Aluminium Heat Sink Black.
EC415B is a PCI Express expansion card designed to add NVMe M.2 SSD onto the existing PC motherboard. It comes with an aluminum heatsink for effective heat dissipation and a silicone thermal pad for improved thermal conductivity. Designed for NVMe M.2 SSD only, this expansion card can fully utilize the performance of the NVMe SSD.
Important Note
This model is for use with NVMe SSD only, SATA M.2 SSD is Not supported.
It supports a physical PCIe x4 x8 x16 slot only, a PCIe x1 slot is Not supported.
It supports logical/throughput interface up to PCIe x4.
NVMe M.2 SSD requires the use of Intel 9 series (Z97 H97 Z170 X99) or higher version chipset-based motherboard with Windows 8 or higher operating system.
If there is a yellow exclamation mark under the Device Manager after installation, you may need to check if an additional driver is required from SSD manufacturer.
Legacy motherboard without built-in NVMe M.2 slot can't support booting operating system from PCI Express.
FEATURES
Add an extra NVMe M.2 slot to your PC
Aluminium heat sink for effective heat dissipation
Silicone thermal pad for improved thermal conductivity
Supports physical PCIe x4 x8 x16 slot
Supports logical/throughput interface up to PCIe x4
Powered by PCIe slot, no additional power is required
Compatible with Windows 8 and above
SPECIFICATIONS
Color: Black
Physical Interface: PCI Express x4 / x8 / x16
Logical Interface: PCI Express x4
Bandwidth: up to 7.8 Gbps (PCIe x4 on PCIe 4.0)
Module Key: M key (for NVMe M.2 only)
Number of Supported Drives: 1
Supported Type M.2 SSD: 2230, 2242, 2260, 2280
PACKAGE CONTENTS
1 x NVMe M.2 to PCIe Expansion Card
1 x Heatsink with thermal pad
1 x Standoff and screw set
