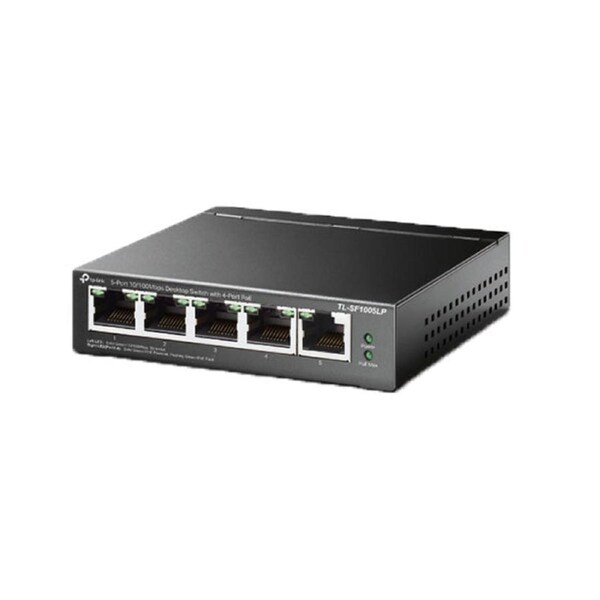

TP Link Tl Sf1005Lp 5 Port Desktop Switch
TP LINK TL SF1005LP 5 PORT DESKTOP SWITCH
TP-Link TL-SF1005LP 5-Port 10/100Mbps Desktop Switch with 4-Port PoE.
FEATURES
5× 10/100 Mbps RJ45 ports.
4× PoE ports transfer data and power on individual cables.
Works with IEEE 802.3af-compliant PDs.
Up to 250 m data and power transmitting range under Extend Mode.
Priority Mode ensures high priority of ports 1-2 to guarantee the quality of sensitive applications.
Supports PoE Power up to 41 W for all PoE ports.
Plug and play with no configuration required.
SPECIFICATIONS
HARDWARE FEATURES
Interface: 5× 10/100 Mbps RJ45 Ports (Ports 1-4 support 802.3af PoE), AUTO Negotiation, AUTO MDI/MDIX
Network Media: 10BASE-T UTP category 3, 4, 5 cables (maximum 100m), EIA/TIA-568 100 Ω STP (maximum 100m), 100BASE-TX UTP category 5, 5e cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity: Fanless
Physical Security Lock: Yes
External Power Supply: External Power Adapter (Output: 53.5 V DC / 0.81 A)
Packet Forwarding Rate: 0.744 Mpps
PoE Ports (RJ45) Standard: 802.3 af compliant, PoE Ports: Ports 1-4
Power Supply: 41 W
Mac Address: Table 2K
Jumbo Frame: 2 KB
Switching Capacity: 1 Gbps
Max Power Consumption: 1.9 W (220 V / 50 Hz, no PD connected), 47 W (220 V / 50 Hz, with 41 W PD connected)
Max Heat Dissipation: 6.48 BTU/h(no PD connected), 160.27 BTU/h(with 41 W PD connected)
SOFTWARE FEATURES
Transmission Method: Store-And-Forward
Advanced Functions: Compatible With IEEE 802.3af/at Compliant PDs
Extend Mode Button: (Ports 1-4)
Priority Mode Button: (Ports 1-2)
Mac Address: Auto-Learning And Auto-Aging
EEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode
OTHERS
Environment: Operating Temperature: 0-40 ℃ (32-104 ℉)
Storage Temperature: -40-70 ℃ (-40-158 ℉)
Operating Humidity: 10-90% RH non-condensing
Storage Humidity: 5-90% RH
PACKAGE CONTENTS
1 x TP Link Tl Sf1005Lp 5 Port Desktop Switch
1 x Power Adapter
1 x Installation Guide
