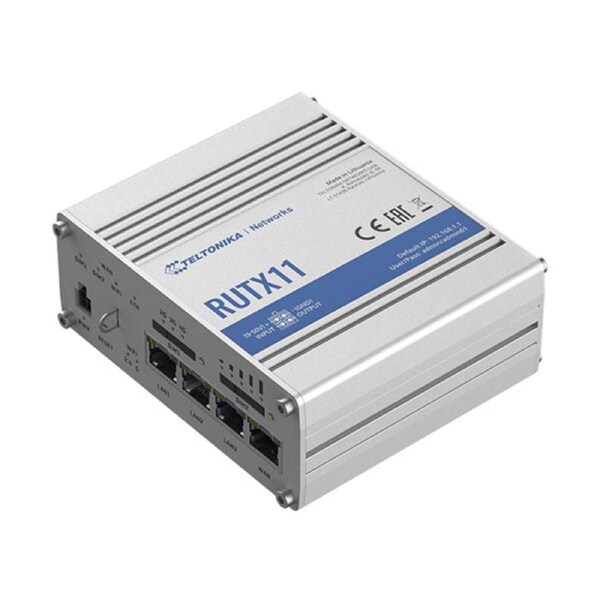

Teltonika Instant Reliable And Secure Cat6 Dual Sim 4G Lte Router
TELTONIKA INSTANT RELIABLE AND SECURE CAT6 DUAL SIM 4G LTE ROUTER
It is a very powerful device equipped with Dual-SIM with auto Failover, Backup WAN, and other SW features.
A wide range of internal hardware interfaces allows this product to be used in power-hungry industrial applications where speed and robustness are at the heart of the solution.
4G LTE - Cat 6 DL up to 300 Mbps in sync with 4 x 1 Gbit Ethernet ports allows for a seamless data transfer experience with auto-failover and a backup WAN.
Bluetooth LE allows sensors to be connected directly to the router, thus minimizing the overall solution ecosystem.
SPECIFICATIONS
HARDWARE
Mobile: 4G/LTE (Cat 6), 3G
CPU: Qualcomm, 4 x ARM Cortex A7, 717 MHz
Memory: 256 MBytes Flash, 256 MBytes RAM
Powering option: 4pin power socket, 9-50 VDC
SIM: 2 x External SIM holders (2FF)
Antenna connectors: 2 x SMA for mobile, 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth, 1 x SMA for GPS
Ethernet: 4 x 10/100/1000 Ethernet ports: 1 x WAN (configurable as LAN), 3 x LAN
WiFi: IEEE 802.11b/g/n 2.4GHz, IEEE 802.11ac/n/a 5GHz, Access point (AP), Station (STA)
GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
Bluetooth: 4.0 (Low energy)
Inputs/Outputs: On 4pin socket: 1 x Digital input, 1 x Digital open collector output
Other: 1 x USB host
Status LEDs : 4 x WAN type, 2 x Connection type, 5 x Signal strength, 2 x WiFi, 8 x Ethernet, 1 x Power
Operating temperature: -40 °C to 75 °C
Housing: Aluminium housing with DIN rail mounting option and grounding capability
Dimensions (W x H x D): 115 x 44 x 95 mm
Weight: 456 g
SOFTWARE
Operating system: RutOS (OpenWrt based Linux OS)
Mobile features: Multiple PDN, Auto APN, Band lock, SIM switch, Operator black/white list, Data/SMS limits
Routing: Static routes, Dynamic routes (BGP, OSPFv2, RIPv1/v2, EIGRP, NHRP), Routing rules
Network: Failover (Network backup), VLAN, QoS, Load Balancing
VPN and tunneling: OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, WireGuard, ZeroTier
Hotspot: External/Internal Radius, SMS OTP, MAC authentication, Walled Garden
Cloud solutions: RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
GNSS: NMEA forwarding, AVL, Geofencing
NTP: NTP Server, NTP Client, Sync with: External NTP server, GNSS, Mobile operator
PACKAGE CONTENT
1 x Teltonika Instant Reliable And Secure Cat6 Dual Sim 4G Lte Router
