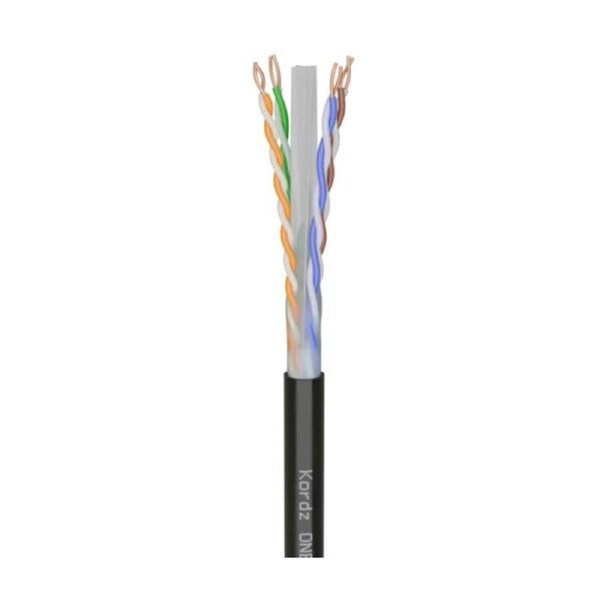

Kordz K14703 Cat6 Outdoor Rated Bulk Gel Filled Network Cable
KORDZ K14703 CAT6 OUTDOOR RATED BULK GEL FILLED NETWORK CABLE
The Kordz ONE Series CAT6 U/UTP Outdoor Grade Network Cable is a gel-filled, UV stabilised cable suitable for outdoor or direct burial installation applications. Featuring high quality water resistant gel to prevent fluid propagation (according to IEC 60794-1-2 F5B) and Polyethylene jacket for UV stability. Exceeding the performance requirements of ANSI/TIA-568.2-D CAT6 and featuring 24AWG OFC conductors for increased ease of field termination, thereby saving precious time.
SPECIFICATIONS
Construction
Conductor: Solid OFC annealed bare copper wire 0.537 +0/-0.015mm [24AWG]
Twisting: 4 twisted pairs, 2 cores to each pair
Twisted Pair Colour Code: 1 - white-blue/blue, 2 - white-orange/orange, 3 - white-green/green, 4 - white-brown/brown
Cable Lay-Up: 4 pairs with different pitches, non-metallic cross separator (spine)
Filler: Water-resistant gel
Buffer: Mylar tape
Jacket Material: UV-stabilised polyethylene-based composite (LDPE)
Outer Diameter: 6.3 ± 0.5 mm
Mechanical
Bend Radius: Without load ≥ 25.2mm, with load ≥ 50.4mm
Temperature Range: During Operation: -20°C to 60ºC During Installation: 0°C to 50ºC
Electrical
DC Resistance: Max. ≤ 9.38Ω / 100m at 20ºC
Resistance Unbalance: Max. ≤ 2% at 20ºC
Insulation Resistance (500V): Min. ≥ 5000MΩ / km at 20ºC
Mutual Capacitance: Max. 5.6 nf/100 m at 1 kHz
Capacitance Unbalance (Pair to Ground): Max. 330 pf/100 m at 1 kHz
Nominal Velocity of Propagation: Nom. 63 %
Test Voltage: 1kV DC / 1 min
Dimensions
Roll Size: 305m - metre marked
Wooden Reel: 35cm x 35cm x 30cm
Gross Weight: 14.8kg
PACKAGE CONTENT
1 x Kordz K14703 Cat6 Outdoor Rated Bulk Gel Filled Network Cable
