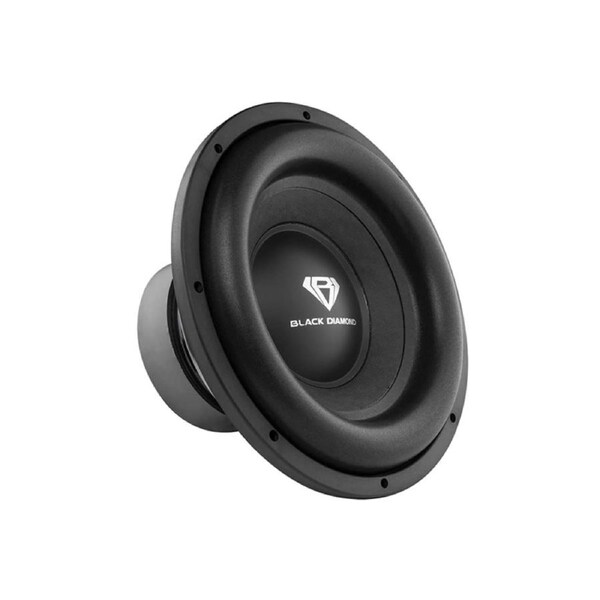

Black Diamond DIA-R12D4 12" 1200W DVC 4-Ohms Car Subwoofer

• Motor:
  • Voice Coil Diameter: 2.5″ / 63.5mm
  • Voice Coil Former Material: Aluminum
  • Winding Material: CCAW
  • Cone Material: Paper
  • Dust Cap: Paper
  • Surround Material: Foam
  • Basket Material: Steel
  • Basket Color: Black
  • Magnet Material: Ferrite
  • Magnet Weight: 100 oz
  • Displacement Volume: 1.9L / 0.07ft3
• Measurements:
  • Overall Diameter: 12.6″ / 320mm
  • Overall Depth: 7.75″ / 197mm
  • Front Mount Baffle Cutout: 10.86″ / 276mm
  • Mounting Depth: 6.6″ / 168mm
  • Motor Diameter: 6.14″ / 156mm
• Recommended Enclosures:
  • Sealed Internal Volume: 28.3L / 1ft3
  • Sealed Box Output Response: F3 45Hz
  • Ported Internal Volume: 56.6L / 2ft3
  • Port Size – Square (WxHxLong): 1.18″x12.6″x14.17″ / 30x320x360mm
  • Port Tuning Frequency: Fb 32Hz
  • Ported Box Output Response: F3 27Hz
