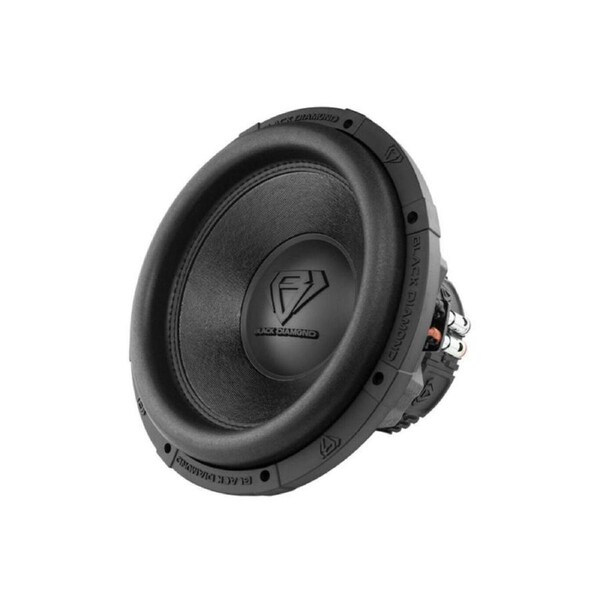

Black Diamond DIA-T12.4D 12" 2000W DVC 4-Ohm Car Audio Subwoofer

• Voice Coil Diameter: 3" (76.5mm)
• Voice Coil Former Material: Aluminum
• Winding Material: Copper
• Cone Material: Non-Pressed paper
• Dust Cap: PPI
• Surround Material: Foam
• Basket Material: Aluminum
• Basket Color: Sandblasted Black
• Magnet Material: Ferrite
• Magnet Weight: 120 oz
• Displacement Volume: 2.26L / 0.08 ft3
• Equivalent Volume Vas: 26.65L / 0.94ft3
• Excursion (one way) / Xmax: 24mm
• Free Air Resonance / Fs: 32 Hz
• Mechanical Factor / Qms: 4.051
• Electrical Factor / Qes: 0.77
• Total Factor / Qts: 0.647
• Moving Mass / Mms : 324.9g
• Compliance / Cms : 66.59µ M/N
• Bl Factor / Factor Bl BL: 12.78
• Voice Coil Inductance / Le: 0.86 mH
• Overall Diameter: 12.7" (323mm)
• Overall Depth: 8.46" (215mm)
• Front Mount Baffle Cutout: 11.1" (282mm)
• Mounting Depth: 7.03" (178.6mm)
• Motor Diameter: 7.08" (180mm)
