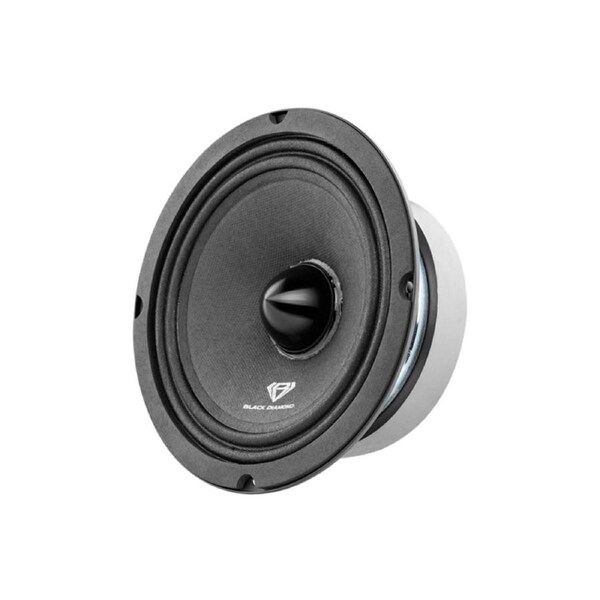

Black Diamond DIA-M6.4B 6.5" Mid-Range 4-Ohm Speaker (Single)

• MOTOR SPECIFICATIONS:
  • Voice Coil Diameter: 1.5" / 38.6 mm
  • Voice Coil Former Material: Kapton
  • Winding Material: CCAW
  • Cone Material: Paper
  • Surround Material: Cloth
  • Basket Material: Steel
  • Magnet Material: Ferrite
  • Magnet Weight: 30 Oz
  • Displacement Volume: 0.32L
• THIELE & SMALL PARAMETERS:
  • Equivalent Volume: Vas 3.810L
  • Excursion: Xmax 8.2mm
  • Free Air Resonance: Fs 106Hz
  • Mechanical Factor: Qms 8.027
  • Electrical Factor: Qes 0.471
  • Total Factor: Qts 0.445
  • CD Resistance: Re 3.2 Ohms
• MEASUREMENTS:
  • Overall Diameter: 6.61" / 168mm
  • Overall Depth: 2.83" / 72mm
  • Front Mount Baffle Cutout: 5.72" / 145 mm
  • Mounting Depth: 2.60" / 66 mm
