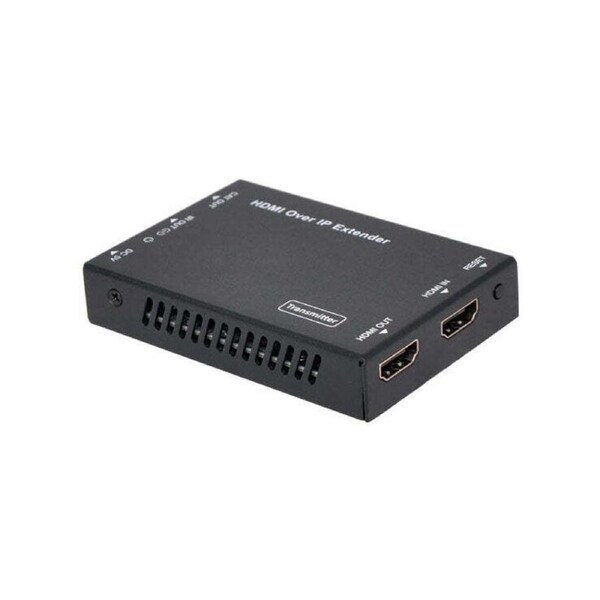

Dynalink HDMI Over Audio Visual IP Extender Cat5e 6 Transmitter
This HDMI over IP balun transmitter encodes 1080p HDMI signals into a H.265 stream suitable for transmission over a single Cat5e/6 UTP cable. This can be used in a point-to-point system using the A3139 receiver or in a system which transmits to multiple receivers utilising a wired ethernet switch. The maximum distance of cable for a 1080p @ 60Hz signal is 150 metres, with an additional 15m available from the HDMI input/output. One way infra-red control is available (from the transmitter end of the system) using the included IR target. This system is ideal for digital signage or commercial audio visual entertainment systems where a common signal is required to be transmitted to multiple monitors. A local loop output is provided on the transmitter for connection to a local monitor near the source.
Dimensions: 88 x 61.2 x 16.5mm.
Requires matching receiver unit which is sold separately (A3139).
In the Box
- 1× HDMI over IP Extender (Transmitter)
- 1× 20-60KHz IR target cable (1.5 meters)
- 1× 5V/1A Power Adapter
- 1× User Manual
- HDCP 1.4 complaint
- Supports 6.75Gbps video bandwidth
- Video resolution is up to 1920x1200@60Hz YCbCr 4:4:4
- Extend distance up to 150m between encoder and decoder via Cat5e/6 cable
- Adopts Standard H.265 encoding/decoding
- Supports 1G standard IP swticher / router / hub
- Supports one-way IR control signal transmission
- Compact design for easy and flexible installation
- Technical
- HDCP Compliance: HDCP 1.4
- Video Bandwidth: 6.75Gbps
- Video Resolution: 640x480@60Hz~1920x1200@60Hz
- HDMI Audio Formats: LPCM 2.0CH, 32KHz, 44.1KHz, 48KHz
- IR Frequency: 20~60KHz
- Compression Technology: H.265
- Request for Switcher/Router: Support 1GMP, Support DHCP
- Colour Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2
- Colour Depth: 12-Bit
- ESD Protection: Human body model ~ ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
- Connection
- Inputs: 1 x HDMI Type A (19-pin Female)
- Outputs: 1 x HDMI Type A (19-pin Female), 1 x CAT OUT (RJ45 connector)
- Control: 1 x IR OUT (3.5mm Stereo Mini-jack)
- Mechanical
- Housing: Metal Enclosure
- Silkscreen colour: Black
- Dimensions: 88 x 61.2 x 16.5mm
- Weight: 155g
- Power Supply: Input: 100 AC ~ 240V 50/60Hz, Output: 5V DC 1A (US/EU Standard, CE/FCC/UL certified)
- Operation Temperature: -10°C ~ 50°C
- Storage Temperature: -20°C ~ 60°C
- Relative Humidity: 20~90% (non-condensing)
- Resolution/Distance: 1920x1200@60Hz
- CAT 5e/6 cable: 150m
- Resolution/Distance: 1920x1200@60Hz
- HDMI IN/OUT: 15m
