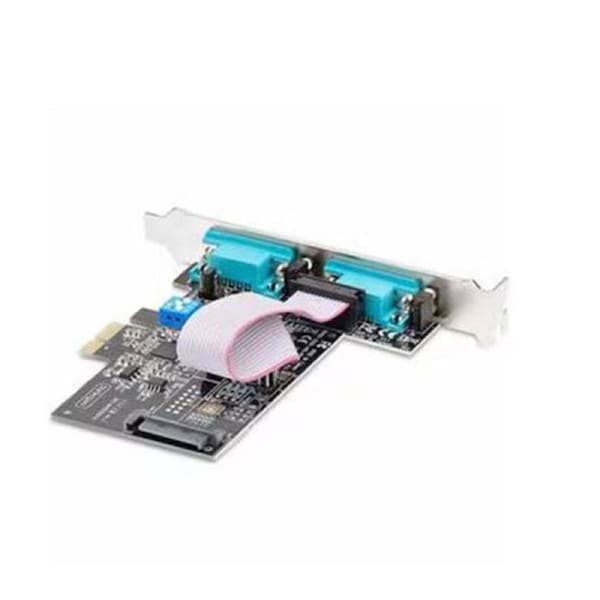

Startech 2 Port Serial Card
STARTECH.COM 2-PORT SERIAL CARD
StarTech.com 2-Port Serial PCIe Card, Dual-Port RS232/RS422/RS485 Card, 16C1050 UART, ESD Protection, Windows/Linux, TAA-Compliant - 2-Port PCIe Serial Card features on-board DIP switches allowing each DB9 port to operate in RS-232/RS-422/RS-485 independently; Jumpers provide the option of 12V/5V/RI @ 1.5A per port; Includes Low-Profile Brackets; Supports Windows/Linux
Add serial communication support to a desktop computer or Small Form Factor (SFF) system, using this 2-Port Serial PCI Express Card. The two DB9 ports can be independently configured to support RS-232, RS-422, and 2/4-wire RS-485 standards, for communication with compliant serial peripheral devices.
FEATURES
2-PORT PCIE SERIAL CARD: On-board DIP switches allow each DB9 serial port to operate in its own independent mode, enabling the connection of RS-232, RS-422, and RS-485 devices; LED indicators to monitor data transmit/receive status
CONFIGURABLE POWER: Dual-Port PCI Express Serial Adapter Card features configurable power of 12V (1.5A per port), 5V (1.5A per port), or no power (RI) over pin 9 via auxiliary SATA power; Per-Port power modes are individually configurable via jumpers
APPLICATIONS: Ideal for desktops and servers, with a wide range of uses such as point-of-sale terminals, PLCs, factory control and automation, scientific sensors, medical equipment, scanners, and oscilloscopes; DB9 ports work with screw-locking cables
STANDARD & LOW PROFILE BRACKETS: TAA-Compliant Serial Card is equipped with a standard profile bracket (pre-installed), and includes two low-profile brackets for compatibility with small form factor desktops/servers
TECH SPECS: Asix AX99100 Chipset; 16C450 and 16C550 UART compatible; 2x 9-Pin D-Sub Ports; Max Baud 921.6Kbps per port; 256 Byte FIFO; COM Retention; Supports Windows and Linux; Odd/Even/Mark/Space/None Parity Modes; 5/6/7/8/9 Data Bits; PCIe 2.0 x1
SPECIFICATIONS
Number of Serial Ports (External): 2
Environmentally Friendly: Yes
TAA Compliant: Yes
Host Interface: PCI Express 2.0 x1
Platform Supported: Linux, PC
UART Type: 16C750, 16C650, 16C550
16C450, 16C950
Weight (Approximate): 57 g
Form Factor: Plug-in Card
Height: 15.2 mm
Width: 101.6 mm
Depth: 104.1 mm
Product Type: Serial Adapter
Manufacturer Part Number: 2S232422485PCCARD
Packaged Quantity: 1
Manufacturer: StarTech.com
Product Name: 2-Port Serial Card
Brand Name: StarTech.com
PACKAGE CONTENTS
1 x Startech 2 Port Serial Card
2 x Low-Profile Bracket
1 x Ribbon Cable
1 x Quick-Start Guide
