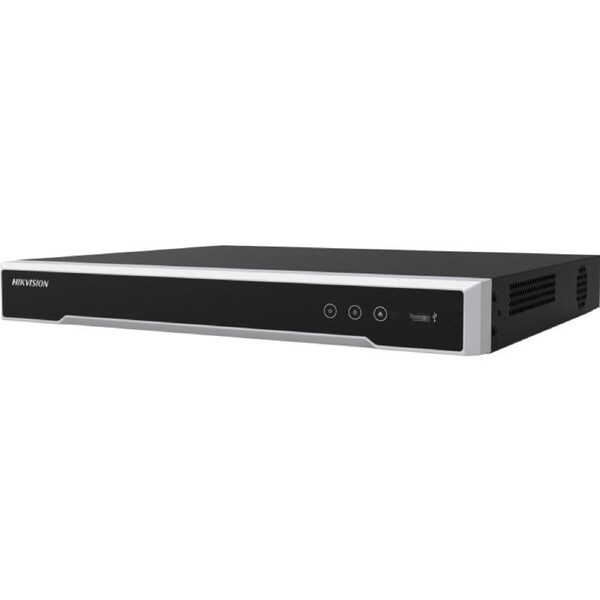

HIKVISION ULTRA 7616NI-M2 16CH M- NVR, 8K, 2XHDD, 1X4TB, 32MP, 3YR

114-436 16CH IP NVR WITH 4TB HD - HIKVISION

Hikvision DS-7616NI-M2/16P 16CH Ultra Series NVR inc 4TB HDD 256Mbps Bit Rate Input Max(up to 16-ch IP video),16x4MP decoding capability,HDMI up to 8K, 2 SATA Interfaces, 16 independent PoE network interfaces, alarm I/O: 4/1, 380 1U case

Features:

• H.265 /H.265/H.264 /H.264 video formats
• Up to 16ch IP camera inputs
• Up to 16ch@4MP decoding capacity
• Up to 256 Mbps incoming bandwidth
• Inc 4TB HDD

Video And Audio

• IP Video Input: 16-ch Up to 32 MP resolution
  *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
• Incoming Bandwidth256 Mbps
• Outgoing Bandwidth256 Mbps
• HDMI Output8K (7680 x 4320)/30Hz, 4K (3840 x 2160)/60Hz, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
• VGA Output1920 x 1080/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
• Video Output ModeHDMI/VGA independent output
• CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ohm), resolution: PAL: 704 x 576, NTSC: 704 x 480
• Audio Output1-ch, RCA (Linear, 1 KOhm)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KOhm, using the audio input)

Decoding

• Decoding FormatH.265+/H.265/H.264+/H.264
• Recording Resolution
  32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF

*: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.

• Synchronous Playback16-ch
• Decoding Capability2-ch@32 MP (30 fps)/2-ch@24 MP (30 fps)/4-ch@12 MP (20 fps)/8-ch@8 MP (25 fps)/16-ch@4 MP (30 fps)
• Dual-Stream RecordingSupport
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2

Network

• Remote Connection128
• Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP(TM), HTTP, HTTPS
• Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE

• Interface16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Power 200 W
• Standard IEEE 802.3 af/at

Auxiliary Interface

• SATA2 SATA interfaces
• CapacityUp to 16 TB capacity for each HDD
• Alarm In/Out4/1
• USB InterfaceFront panel: 1 x USB 2.0; Rear panel: 1 x USB 3.0

General

• Power Supply100 to 240 VAC, 50 to 60 Hz
• Consumption 15 W (without HDD and PoE off)
• Working Temperature-10 oC to 55 oC (14 oF to 131 oF)
• Working Humidity10% to 90%
• Dimension (W x D x H)385 x 315x 52 mm (15.2" x 12.4" x 2.0")
• 3 kg (without HDD, 2.2 lb.)

Certification

• FCCPart 15 Subpart B, ANSI C63.4-2014
  CE
• EN 55032:2015 A1:2020, ENIEC61000-3-2:2019 A1:2021, EN 61000-3-3:2013 A1:201 9, EN 50130-4:2011 A1:2014, EN 55035:2017 A11:2020
