Blind Spot Detection System
Changing lanes is easier than ever with the help of our new truck blind spot detection system. It alerts you when there is an object nearby so you can be cautious when lane changing and also when reversing.
8 Ultrasonic Sensors
Ultrasonic sensing is one of the most reliable ways to sense proximity and detect distance. Enhance your awareness and reduce the possibility of road accidents by installing 2 ultrasonic sensors on the right-side blind spot and 2 ultrasonic sensors on the left-side blind spot to detect the presence of other vehicles or objects when driving. Plus 4 ultrasonic sensors for the rear blind spot triggered when reversing.
Promotes Safer Driving
This blind spot detection system reduces the risk of accidents when changing lanes by monitoring the dangerous blind spots of your vehicle. It detects objects and people quickly, and accurately to assist you in driving and parking safely.
12V/24V Compatible
Supports 12V~24V voltage, suitable for commercial vehicles like trucks, semi-trucks, light trucks, delivery trucks, trailers, buses & other large vehicles.
Intuitive Display
This blind spot detection system not only makes a beep sound warning but also shows accurate distance data and alerts drivers to potential obstacles closing in or objects within the blind zones.
Long Range Distance
The maximum effective range for Ultrasonic sensor detection is 5 metres.
- 5.01 metre and greater = Mute
- 2.51 metre to 5.00 metre = Beep---Beep---Beep---Beep---Beep
- 1.51 metre to 2.50 metre = Beep--Beep--Beep--Beep--Beep
- 0.71 metre to 1.50 metre = Beep-Beep-Beep-Beep-Beep
- 0.00 metre to 0.70 metre = Beeeeeeeeeep
IP67 Waterproof
Ultrasonic sensors, control box, and cables are designed to resist weather and remain durable with their IP67 waterproof rating.
10 Metre 4PIN Cable Included
It comes with a 10-meter 4PIN cable to connect the control box to the 3.5" monitor. For longer vehicles, you can purchase extra 10-meter, and 20-meter cables separately.
TCT Hole Saw Included
It comes with a 30mm Tungsten Carbide Tipped (TCT) hole saw for drilling in sheet metal, galvanized iron, and even stainless steel truck bumpers.
Product Dimensions & Wiring Diagram

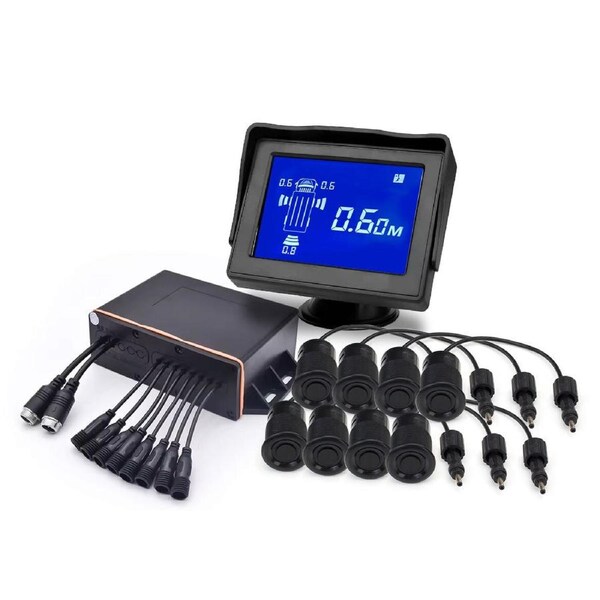

Elinz Blind Spot Detection System for Heavy Commercial Vehicles 8 Ultrasonic Sensors Driving Parking Reverse Backup Kit
The Elinz Blind Spot Detection System is designed to enhance safety and ease while driving, parking, and reversing heavy commercial vehicles. With this advanced system, changing lanes and reversing become significantly safer and more manageable.
- Blind Spot Detection System
- Changing lanes is easier than ever with the help of our new truck blind spot detection system. It alerts you when there is an object nearby so you can be cautious when lane changing and also when reversing.
- 8 Ultrasonic Sensors
- Ultrasonic sensing is one of the most reliable ways to sense proximity and detect distance. Enhance your awareness and reduce the possibility of road accidents by installing 2 ultrasonic sensors on the right-side blind spot and 2 ultrasonic sensors on the left-side blind spot to detect the presence of other vehicles or objects when driving. Plus 4 ultrasonic sensors for the rear blind spot triggered when reversing.
- Promotes Safer Driving
- This blind spot detection system reduces the risk of accidents when changing lanes by monitoring the dangerous blind spots of your vehicle. It detects objects and people quickly, and accurately to assist you in driving and parking safely.
- 12V/24V Compatible
- Supports 12V~24V voltage, suitable for commercial vehicles like trucks, semi-trucks, light trucks, delivery trucks, trailers, buses & other large vehicles.
- Intuitive Display
- This blind spot detection system not only makes a beep sound warning but also shows accurate distance data and alerts drivers to potential obstacles closing in or objects within the blind zones.
- Long Range Distance
- The maximum effective range for Ultrasonic sensor detection is 5 metres.
- 5.01 metre and greater = Mute
- 2.51 metre to 5.00 metre = Beep---Beep---Beep---Beep---Beep
- 1.51 metre to 2.50 metre = Beep--Beep--Beep--Beep--Beep
- 0.71 metre to 1.50 metre = Beep-Beep-Beep-Beep-Beep
- 0.00 metre to 0.70 metre = Beeeeeeeeeep
- IP67 Waterproof
- Ultrasonic sensors, control box, and cables are designed to resist weather and remain durable with their IP67 waterproof rating.
- 10 Metre 4PIN Cable Included
- It comes with a 10-meter 4PIN cable to connect the control box to the 3.5" monitor. For longer vehicles, you can purchase extra 10-meter, and 20-meter cables separately.
- TCT Hole Saw Included
- It comes with a 30mm Tungsten Carbide Tipped (TCT) hole saw for drilling in sheet metal, galvanized iron, and even stainless steel truck bumpers.
- Monitor Size: 3.5 Inches
- Power Supply: DC 12V~24V
- Power Consumption: ≤1.2W
- Detection Range: 0.0~5.0 metres
- Response Time: 0.25 seconds
- Detection Angle: X, Y 60~80 degree
- Accuracy: 0.1 metre
- Working temperature: -30ºC~70ºC
- Operating Frequency: 40kHz
- Detection Angle: 100-120 degrees
1. 1x Monitor
2. 1x Control Box
3. 1x Power Cord
4. 1x 4PIN 10m Cable
5. 4x Hex Head Self Tapping Screws
6. 8x Radar Sensors
7. 8x Sensor Nuts
8. 4x 3m Side Sensor Cables
9. 4x 10m Rear Sensor Cables
10. 1x TCT Hole Saw
