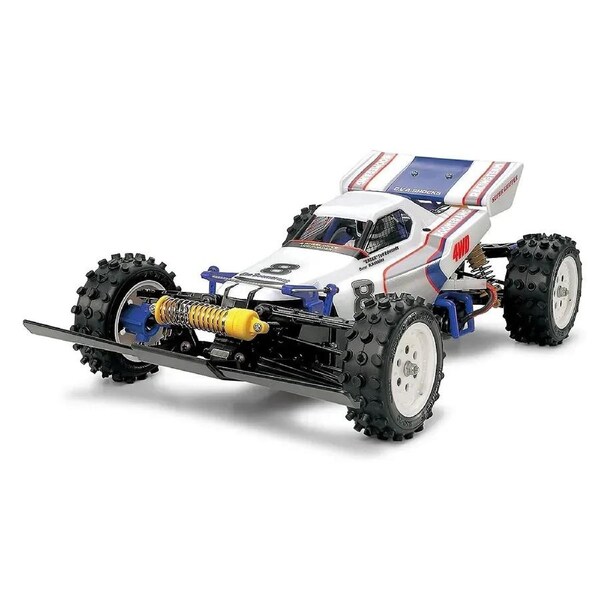

Tamiya 1/10 RC Boomerang 4WD (2008) RC Buggy Kit
The Boomerang is a re-release of a classic Tamiya off-road buggy. Tamiya designers have given this re-release kit a makeover replacing older, harder to assemble parts with modern equivalents, but still keeping true to the spirit of the original Boomerang.
The combination of these new improvements such as the more efficient gear box, drive shafts and axle joints along with the new placement of the drive shaft, gives the Boomerang improved steering control and helps to minimize the effects of abrupt shocks. The kit also comes with a chassis cover to prevent dirt and debris from interfering with operations. Take this updated Boomerang out for a spin and relive your childhood!
Reliable Power Train:
The Boomerang takes over the famous Hotshot's chassis and shaft driven 4WD power train. The 3-piece bathtub chassis, which consists of center frame with front and rear gearboxes, ensures easy maintenance. Front features a mono-shock oil damper and a stabilizer as well as rear features CVA long oil dampers. Newly included is a polycarbonate chassis cover to protect the chassis from dirt and debris. You can upgrade your machine with a wide range of Option Parts such as Item 53791 DF-02 Assembly Universal Shaft and Item 53926 DF-03 Aluminum Damper Set.
- Length: 385mm, Width: 234mm, Height: 153mm
- Weight: Approximately 1160g (w/out R/C unit, battery)
- Tread: Front=196mm, Rear=194mm
- Tire Width/Diameter: Front=30/88mm, Rear=38/88mm
- ABS Resin Bathtub Frame Chassis
- Drivetrain: Shaft Driven 4WD
- Front and Rear 3-Bevel Differential Gears
- 3-Piece Steering Tie-Rod
- 4-Wheel Double Wishbone Suspension
- Gear Ratio: 8.7:1, 10.04:1
- RS540 Type Motor
What you Need:
- 2-channel radio
- servo
- 7.2 volt battery & compatible battery charger
- and Tamiya PS polycarbonate paint
Note: This kit comes without an Electronic Speed Control .Please Note: This body shell comes completely UNPAINTED and may or may not require body post holes to be drilled.
Only use a polycarbonate style paint such as The Tamiya PS series to finish these bodies, as standard paints will not adhere and/or cause damage to the body shell's surface.It features a wedge-shape form, large-sized rear wing, and ball bearings installed in the gearboxes.
The newly designed polycarbonate chassis cover ensures easy maintenance and prevents dirt and debris from entering.
The Boomerang inherits the chassis and shaft driven 4WD power train of the famous Hotshot.
The 3-piece bathtub chassis, consisting of a centre frame with front and rear gearboxes, ensures easy maintenance.
It has a mono-shock oil shock and a stabiliser in the front, and CVA long oil shocks in the rear. A newly included polycarbonate chassis cover protects the chassis from dirt and debris.
It can be upgraded with a variety of Option Parts such as Item 53791 DF-02 Assembly Universal Shaft and Item 53926 DF-03 Aluminium shock Set.
Dust & Chassis CoverIn addition to the dust cover on top of the steering servo, the polycarbonate chassis cover prevents dirt and debris from entering the inside of the chassis.
Dog-Bone DriveshaftsThe reliable dog-bone type propeller shaft transmits the power.
Front suspension features an oil shock and a stabiliser.
Oil-Filled ShocksRear features CVA oil-filled shocks which effectively absorb shocks from off-road tracks and improve traction.
FeaturesNew and improved gear box, drive shafts, and axle joints for better steering control.
Driveshaft placement helps to minimise effects of abrupt shocks.
Comes with a chassis cover to prevent interference from dirt and debris.
Based on the popular Hotshot's chassis and shaft driven 4WD power train.
Mono-shock oil damper and stabiliser in the front, CVA long oil dampers in the rear.
Polycarbonate chassis cover included for added protection.
Option to upgrade with a range of Option Parts, such as the DF-02 Assembly Universal Shaft and Aluminium Shock Set.
Bathtub chassis for easy maintenance.
Relive your childhood with this updated version of the classic Boomerang RC buggy.
Get ready for a fun and exciting ride with the improved steering and shock absorption of the Boomerang.
SpecificationsLength: 385mm (15.1").
Width: 234mm (9.21").
Height: 153mm (6.02").
Weight: approx. 1160g (2.54lbs).
Tread F/R: (7.71/7.63").
Tyre Width/Diameter F/R: 30/88mm (1.18/3.46") / 38/88mm (1.49/3.46").
Chassis: ABS Resin Bathtub.
Drivetrain: Shaft Driven 4WD.
Gears: Front and Rear 3-Bevel Differential.
Steering: 3-Piece Tie-Rod.
Suspension: 4-Wheel Double Wishbone.
Gear Ratio: 8.7:1, 10.04:1.
Motor: RS540 Type Motor.
Included itemsDescri
