Overview

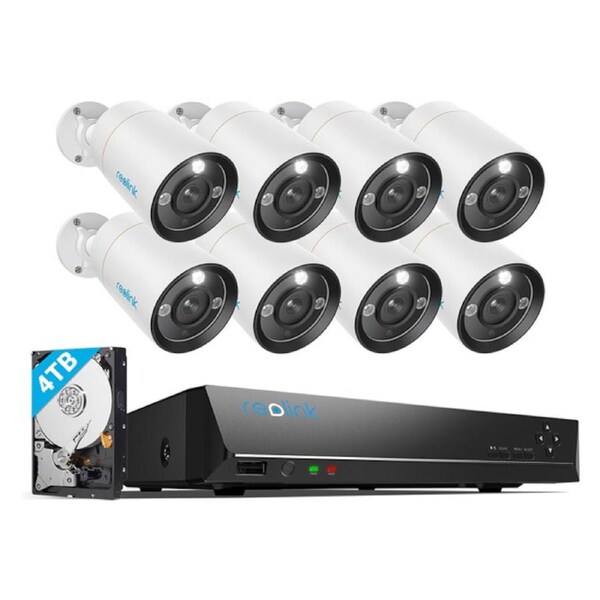

This is 12MP PoE security system with 8 bullet cameras and 4TB NVR for 24/7 recording. Smart person/vehicle detection, easy PoE installation, IP67 waterproof and more.
Features and Details
Unlock the Hidden World of Details in 12MP
Whether it's investigating incidents, or identifying intruders, the 12MP security system gives you the advantage of detailed surveillance. Take a clear look at everything like you're really there.
Smart Detection, Better Protection
With the on-camera technology of analyzing the shapes of people, vehicles, and pets, this cctv system can accurately detect these objects, ignore other less important events, and thus greatly reduce false alarms.
Clear & Color, Even at Night
This smart camera kit with powerful spotlights offers full-color video recording day and night. It continues to keep your family firmly guarded after sundown.
PoE Faster, Easier & Lower-Cost Installation
Thanks to Power over Ethernet (PoE) technology, each camera of this kit can transmit videos and be charged simultaneously via only one network cable . You can install these cameras quickly and nicely.
Non-Stop Recording
With the 4TB HDD and the storage capacity of up to 12TB, the PoE video surveillance kit supports all cameras to record continuously at the same time. You will have all-day videos without missing a beat.
Smart Playback
You can not only replay saved videos to find key information but also filter the video by detection modes and control the timeline to quickly locate what you want to see.
Multi-Cam Live Feed
See the live feed of multiple cams on the same screen. Easier to have an overview of your property.
Work with Various Reolink IP Cameras
This security camera system can be expanded up to 16-camera kit with Reolink IP cameras - bullet, dome or PTZ; 16MP, 12MP, 8MP, 5MP or 4MP C to cover every corner in your home, store or factory.
IP67 Weatherproof
Armed with rugged housing, the IP67 weatherproof cameras can stand up to thunderstorms, extreme cold/heat and any other harsh weather. Your faithful guard never quits.
What's in the Box
- 1 x RLN16-410
- 8 x Bullet Camera
- 1 x NVR Power Adapter
- 1 x HDMI Cable
- 1 x USB Mouse
- 1 x 1m Network Cable
- 8 x 18m Network Cable
Free Shipping
Generally Shipped Out in 2 Business Day
Warranty
We provide a 2-year limited warranty for new Products (IP Camera/NVR System/Accessories) purchased from Reolink and a 1-year warranty for Reolink Certified Refurbished Products.
If you encounter any issues with Reolink products, please feel free to contact us and we will help process the warranty accordingly.
30-Day Return Policy
You may return the unwanted product to Reolink for a full refund or replacement within 30 days of the delivery date. You are responsible for the shipping fees. Beyond the end of those 30 days, refunds and exchanges for unwanted products are not available.
NVR Specifications
- IP Video Input: Support PoE IP camera x 16
- Synchronous Playback: Up to 4 channels
- SATA: 2 x SATA interface (1 x TB HDD included)
- Capacity: Up to 12TB (max. 6TB capacity for each HDD)
- External HDD: No
- Video Output: VGA, HDMI
- Browser Supported: Firefox, Chrome, Edge, Safari
- Network Protocol: HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP
- OS Supported: PC: Windows, Mac OS; Smartphone: iOS, Android
- Power Supply: DC 48V~54V
- Dimensions: 330 x 45 x 285mm
- Weight: 2.4kg
Camera Specifications
- Image Sensor: 1/2.49" CMOS sensor
- Video Resolution: Default: 4512X2512 (12 Megapixels) at 20 frames/sec
- Lens: f=4.0mm fixed; F =1.6, with IR-cut filter
- Video Format: H.265
- Field of View: Horizontal: 93, Vertical: 49
- Audio: Two-way audio
- Day & Night: Auto-switching with IR-cut filter
- Color Night Vision: Spotlight: 1pcs/4.3W/6500K/700 Lumens
- PoE: IEEE 802.3af, 48V Active
- Smart Alarm: Motion detection; person detection; vehicle detection; pet detection
- Record Mode: Motion-triggered recording (default); scheduled recording; 24/7 recording
- Waterproof: IP67
- Dimension: 67*187mm
- Weight: 460g
