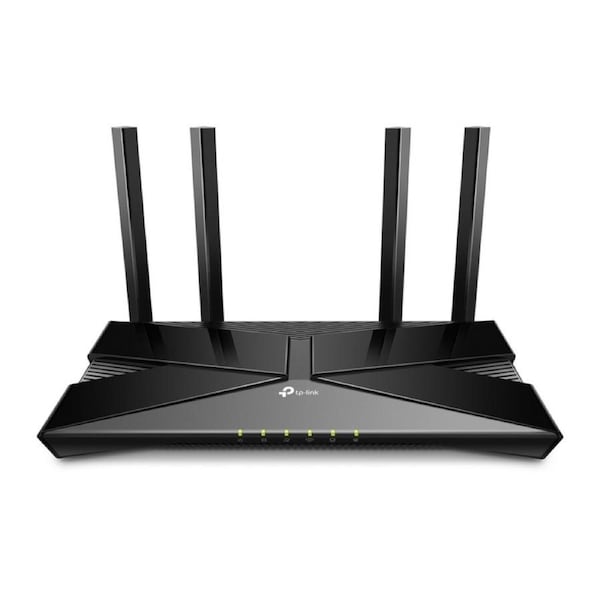

TP-Link Archer VX1800v AX1800 Dual-Band Wi-Fi 6 VDSL/ADSL Modem Router

TP-Link Archer VX1800v, AX1800 Dual-Band Wi-Fi 6 VDSL/ADSL Modem Router

• Super VDSL- The Latest Super VDSL (VDSL2 Profile 35b) tech delivers internet speeds of up to 350Mbps, while G.vector and RNC technology ensure advanced data transmission stability
• Next-Gen Gigabit Wi-Fi 6 Speed1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz band ensure smoother streaming and faster downloads.
• 2x2MU-MIMO- Simultaneously transfers data to multiple devices for 4x faster performance
• VoIP SupportSupport multiple VoIP accounts and various call features to surpass traditional landlines.
• TP-Link Tether App- Easily access and manage your network, including remote control and automatic updates, using any iOS or Android mobile device
• Versatile ConnectivityFully compatible with VDSL2/ADSL2+/ADSL2/ADSL standards, support Fiber and Cable connection through Ethernet port, as well as 3G/4G internet services through USB port.

HARDWARE FEATURES

• Interface :1x Gigabit WAN/LAN,
  3x Gigabit LAN,
  1x USB 2.0,
  2x RJ11 (1x DSL + 1x FXS)
• External Power Supply :12V / 1.5A
• IEEE Standards :IEEE 802.3, IEEE 802.3u, 802.3ab
• VDSL2 Standards :ITU-T G.993.2, ITU-T G.993.5 (G.vector), ITU-T G.998.4 (G.INP)
• ADSL Standards :Full-rate-ANSI T1.413 Issue 2, ITU-T G.992.1 (G.DMT), ITU-TG.992.2 (G.Lite), ITU-T G.994.1 (G.hs), ITU-T G.995.11
• ADSL2 Standards :ITU-T G.992.3 (G.DMT.bis), ITU-T G.992.4 (G.lite.bis)
• ADSL2+ Standards :ITU-T G.992.5(Annex A/L/M)
• Dimensions ( W x D x H ) :260.2 x 135.0 x 41.6 mm
• Antenna :4x External Antennas

WIRELESS FEATURES

• Wireless Standards :IEEE 802.11ax/ac/n/a 5 GHz
  IEEE 802.11ax/n/b/g 2.4 GHz
• Wireless Speeds :1201 Mbps at 5 GHz, 574 Mbps at 2.4 GHz
• Frequency :2.4 GHz and 5 GHz
• Transmit Power :CE: <20dBm(2.4 GHz), <23dBm(5.15 GHz~5.25 GHz)
• Wireless Functions :Enable/Disable Wireless Radio, WMM
• Wireless Security :WPA2-PSK, WPA2-PSK/WPA-PSK, WPA3-Personal, WPA3-Personal/WPA2-PSK, WPA2-Enterprise, WPA/WPA2-Enterprise encryptions
• Wireless Schedule :Supports 2.4 GHz and 5 GHz Wireless Schedule

VoIP FEATURES

• VoIP Standards :SIP(RFC3261)/RTP(RFC1889/3550), G.711A/u, G.722, G.729AB, G.726
• Integrated Answering Machine :Stores long voice messages internally on the modem router or store voice messages externally on USB storage devices
• Advanced Telephone Functions :Call Forwarding, Call Transfer, Call Back on Busy, Call Blocking, Anonymous Call Blocks, Speed Dial, Emergency Number

SOFTWARE FEATURES

• Advanced Features :IPTV, Parental Controls, Network Address Translation (NAT), Port Mapping (Grouping), Static Routing, RIP v1/v2 (optional), DNS Relay, DDNS, IGMP V1/V2/V3
• Security :NAT Firewall, SPI Firewall, Access Control, Service Filtering, Denial of Service (DoS), SYN Flooding, Ping of Death, IP and MAC Address Binding
• Operating Modes :VDSL/ADSL Modem Router, 3/4G Router, Wireless Router
• Management :Access Control, Local Management, Remote Management
• DHCP :Server, DHCP Client List, Address Reservation
• Port Forwarding :Port Forwarding, Port Triggering, UPnP, DMZ
• Dynamic DNS :DynDns, NO-IP, TP-Link
• VPN :OpenVPN, PPTP VPN, IPSec VPN
• Protocols :Support IPv4 and IPv6
• ATM/PPP Protocols :ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), Bridge (RFC1483 Bridge), PVC - Up to 8 PVCs
• USB Sharing :Support Samba (Storage) / FTP Server / Media Server / 3G/4G Modem / SFTP Server / Web Storage
• Guest Network :2.4 GHz guest network, 5 GHz guest network
• IPSec VPN :Support up to 10 IPSec VPN tunnels

OTHERS

• Certification :CE, RoHS
• Package Contents :Wi-Fi 6 VDSL/ADSL Modem Router Archer VX1800v
  External Splitter
  RJ11 DSL Cable
  RJ45 Ethernet Cable
  Power Adapter
  Quick Installation Guide
• System Requirements :Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or
  other JavaScript-enabled browser
  Cable or DSL Modem (if needed)
  Subscription with an internet service provider (for internet access)
• Environment :Operating Temperature: 0?~40? (32? ~104?)
  Storage Temperature: -40?~60? (-40? ~140?)
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~90% non-condensing
