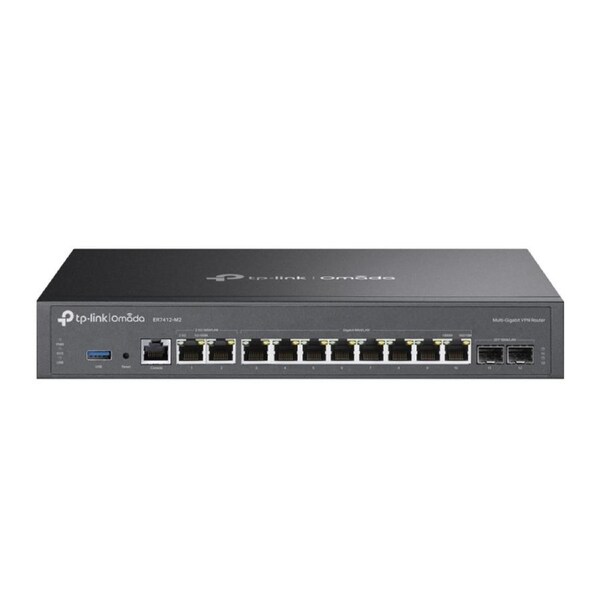

TP-Link ER7412-M2 Omada Multi-Gigabit VPN Router, Quad-core CPU, 2.5G RJ45
TP-Link ER7412-M2, Omada Multi-Gigabit VPN Router
- Quad-core @2.0GHz CPU
- 2x 2.5G RJ45 WAN/LAN ports
- 10x Gigabit WAN/LAN Ports (2x SFP,8x RJ45)
- 1x USB 3.0 Port (Supports USB storage, and LTE backup with LTE dongle)
- Up to 11 WAN ports
- Multi-WAN Load Balancingraises the utilization rate of multi-line broadband
- High-security SSL/ IPSec / GRE§ / WireGuard / PPTP / L2TP VPN & OpenVPN
- Centralized cloud management via the web or the Omada app*
- Standalone management via web, CLI,SNMP,and RMON
- DoS defense, IP/MAC/URL filtering, DPI, and IPS/IDS for enhanced security.
- Learn more about Omada Cloud SDN>?
SECURITY
- Access Control :Source/Destination IP-Based ACL
Stateful ACL
IPv4/IPv6 ACL
National Based ACL - Filtering :WEB Group Filtering§
URL Filtering
Web Security§ - ARP Inspection :Sending GARP Packets§
ARP Scanning§
IP-MAC Binding§ - Attack Defense :TCP/UDP/ICMP Flood Defense
Block TCP Scan (Stealth FIN/Xmas/Null)
Block Ping from WAN
HARDWARE FEATURES
- Standards and Protocols :IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE802.1q
TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP - Interface :1x 2.5G RJ45 WAN/LAN Port
1x 2.5G RJ45 WAN/LAN Port
2x Gigabit SFP WAN/LAN Ports
8x Gigabit RJ45 WAN/LAN Ports
1x RJ45 Console Port
1x USB 3.0 Port (Supports USB storage, and LTE backup with LTE dongle) - Network Media :10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)
100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)
1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
2500BASE-T: UTP category 5e, 6 cable (Max 100 m) - Button :Reset Button
- Power Supply :100-240 VAC, 50/60 Hz
- Flash :128MB NAND
- DRAM :1 GB DDR4
- Dimensions ( W x D x H ) :11.6x7.1x1.7 in (294x180x44 mm)
- Protection :4 kV surge protection
- Enclosure :Steel
- Mounting :Desktop
Rackmountable - Max Power Consumption :18.5W (With USB 3.0 connected)
PERFORMANCE
- GRE :Unencrypted: 1153.0 Mbps
Encrypted: 559.2 Mbps - WireGuard VPN :771.6 Mbps
- Concurrent Session :1,000,000
- New Sessions /Second :7,000
- NAT (Static IP) :2345.71 Mbps / 2351.22 Mbps
- NAT(DHCP) :2353.41 Mbps / 2353.40 Mbps
- NAT(PPPoE) :2336.52 Mbps / 2336.08 Mbps
- NAT (L2TP) :1937.53 Mbps / 1761.82 Mbps
- NAT (PPTP) :1757.54 Mbps / 2011.33 Mbps
- IPsec VPN Throughput :ESP-SHA1-AES256: 1125.60 Mbps
ESP-SHA256-AES256: 1133.1 Mbps
ESP-SHA384-AES256: 1126.6 Mbps
ESP-SHA512-AES256: 1132.8 Mbps - OpenVPN :UDP: 266.2 Mbps
- L2TP VPN Throughput :Unencrypted: 2724.5 Mbps
Encrypted: 1018.4Mbps - PPTP VPN Throughput :Unencrypted: 3035 Mbps
Encrypted: 534.6 Mbps - SSL VPN Throughput :263.1 Mbps
- 66 Byte Packet forwarding rate :1833 Mbps / 1835 Mbps
- 1,518 Byte Packet forwarding rate :2461 Mbps / 2461 Mbps
BASIC FUNCTIONS
- WAN Connection Type :Static IP/Dynamic IP
PPPoE (supports MRU Configuration)
PPTP
L2TP
Mobile Broadband: 4G/3G modem for backup via USB port - MAC Clone :Modify WAN/LAN MAC Address†
- DHCP :DHCP Server
DHCPv6 PD Server (only in Standalone Mode)
DHCP Options Customization
DHCP Address Reservation
Multi-IP Interfaces
Multi-Net DHCP - IPv6 :StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
- VLAN :802.1Q VLAN
- IPTV :IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
ADVANCED FUNCTIONS
- Advanced Routing :Static Routing
Policy Routing
RIP (available in Standalone Mode)
OSPF (available in Standalone Mode) - Bandwidth Control :IP/Port-based Bandwidth Control
- Load Balance :Intelligent Load Balance
Application Optimized Routing
Link Backup (Timing, Failover)
Online Detection - NAT :One-to-One NAT§
Multi-Net NAT
Virtual Server
Port Triggering§
NAT-DMZ
FTP/H.323/SIP/IPSec/PPTP ALG
UPnP - Session Limit :IP-based Session Limit
VPN
- GRE :Only in Standalone Mode
- SSL VPN :80 Tunnels
- IPsec VPN :150 IPSec VPN Tunnels
LAN-to-LAN, Client-to-LAN
Main, Aggressive Negotiation Mode
DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
IPsec Failover
IKE v1/v2
MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
NAT Traversal (NAT-T)
Dead Peer Detection (DPD)
Perfect Forward Secrecy (PFS) - PPTP VPN :PPTP VPN Server
PPTP VPN Client (15)**
150 Tunnels
PPTP with MPPE Encryption - L2TP VPN :L2TP VPN Server
L2TP VPN Client (15)**
150 Tunnels
L2TP over IPSec - OpenVPN :OpenVPN Server
OpenVPN Client (11)**
121 OpenVPN Tunnels
"Certificate + Account" Mode
Full Mode
AUTHENTICATION
- Web Authentication :No Authentication
Simple Password*
Hotspot (Local User/Voucher*/SMS*/Radius*)
External Radius Server
External Portal Server*
LDAP
MANAGEMENT
- Omada App :Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
- Centralized Management :Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller - Cloud Access :Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
- Service :Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
- Maintenance :Web Management Interface
Remote Management
Export & Import Configuration
SNMP v1/v2c/v3*
Diagnostics (Ping & Traceroute)§
NTP Synchronize§
Port Mirroring
CLI (only in Standalone Mode)
Syslog Support - Zero-Touch Provisioning :Yes. Requiring the use of Omada Cloud-Based Controller.
- Management Features :Automatic Device Discovery*
Batch Configuration*
Batch Firmware Upgrading*
Intelligent Network Monitoring*
Abnormal Event Warnings*
Unified Configuration*
Reboot Schedule*
OTHERS
- Certification :CE, FCC
- Package Contents :ER7412-M2
Power Cord
Quick Installation Guide
Rackmount Kit
RJ45 Console Cord - System Requirements :Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11
MAC OS, NetWare, UNIX or Linux - Environment :Operating Temperature: 0-45 ? (32-113 ?);
Storage Temperature: -40-70 ? (-40-158 ?)
Operating Humidity: 10-90% RH non-condensing
Storage Humidity: 5-90% non-condensing
