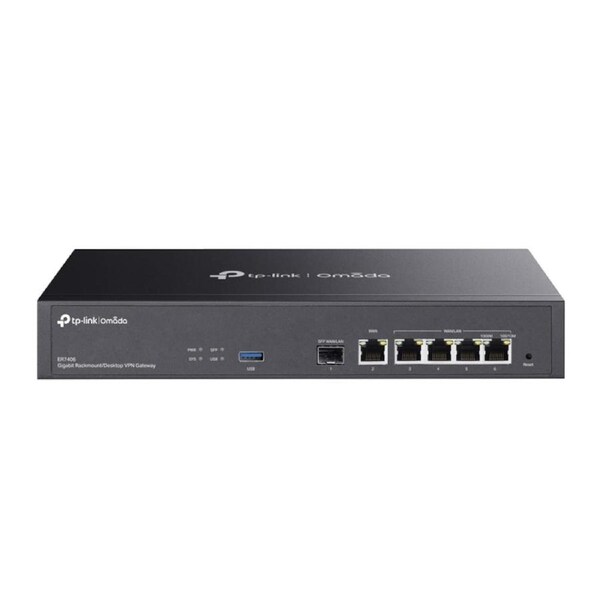

[ER7406] Omada Gigabit Rackmount/Desktop VPN Gateway, SFP WAN/LAN port
TP-Link ER7406, Omada Gigabit Rackmount/Desktop VPN Gateway
- 1x Gigabit SFP WAN/LAN port
- 5x Gigabit RJ45 ports (1x WAN, 4x WAN/LAN)
- 1x USB 3.0 port (Supports USB storage, and LTE backup with LTE dongle)
- Load Balancing on up to 5WAN ports raisesthe utilisation rate of multi-line broadband
- High-security SSL/ IPSec / GRE§ / WireGuard / PPTP / L2TP VPN & OpenVPN
- Centralised cloud management via the web or the Omada app*
- DoS defense, IP/MAC/URL filtering, DPI, and IPS/IDS for enhanced security.
- Rackmount/Desktop
- Learn more about Omada Cloud SDN>?
SECURITY
- Access Control :Source/Destination IP Based Access Control
- Filtering :WEB Group Filtering§
URL Filtering
Web Security§ - ARP Inspection :Sending GARP Packets
ARP Scanning§
IP-MAC Binding - Attack Defense :TCP/UDP/ICMP Flood Defense
Block TCP Scan (Stealth FIN/Xmas/Null)
Block Ping from WAN
HARDWARE FEATURES
- Standards and Protocols :IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q
TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP - Interface :1 Gigabit SFP WAN/LAN Port
1 Gigabit WAN Port
4 Gigabit LAN/WAN Ports
1 USB 3.0 Port (supports USB LTE dongle and USB storage) - Network Media :10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)
100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)
1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) - Fan Quantity :Fanless
- Button :Reset Button
- Power Supply :100-240VAC, 50/60Hz
- Flash :128 MB NAND
- DRAM :512 MB DDR4
- LED :PWR, SYS, SFP, USB, WAN(1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act)
- Dimensions ( W x D x H ) :11.6 x 5.5 x 1.7 in (294 x 140 x 44 mm)
- Protection :4 kV surge protection
- Enclosure :Steel
- Mounting :Desktop
Rackmountable - Max Power Consumption :7.5 W (with USB 3.0 connected)
4.5 W (without USB 3.0 connected)
PERFORMANCE
- IPS Throughput :TCP: 229 Mbps;
UDP: 188 Mbps - DPI Throughput :TCP: 933 Mbps;
UDP: 927 Mbps - GRE :Unencrypted: 611.9 Mbps
Encrypted: 325.0 Mbps - WireGuard VPN :341.3 Mbps
- Concurrent Session :150,000
- New Sessions /Second :5,300
- NAT (Static IP) :945.3 Mbps / 940.5 Mbps
- NAT(DHCP) :939.6 Mbps / 940.9 Mbps
- NAT(PPPoE) :943.6 Mbps / 940.9 Mbps
- NAT (L2TP) :880.1 Mbps / 859.0 Mbps
- NAT (PPTP) :855.0 Mbps / 907.2 Mbps
- IPsec VPN Throughput :ESP-SHA1-AES256: 617.1 Mbps
ESP-SHA256-AES256: 592.8 Mbps
ESP-SHA384-AES256: 592.4 Mbps
ESP-SHA512-AES256: 604.5 Mbps - OpenVPN :139.1 Mbps
- L2TP VPN Throughput :Unencrypted: 977.4 Mbps
Encrypted: 334.6 Mbps - PPTP VPN Throughput :Unencrypted: 1064.1 Mbps
Encrypted: 206.8 Mbps - SSL VPN Throughput :131.6 Mbps
- 66 Byte Packet forwarding rate :1,453,489 pps / 1,453,488 pps
- 1,518 Byte Packet forwarding rate :81,279 pps / 81,275 pps
BASIC FUNCTIONS
- WAN Connection Type :Static IP
Dynamic IP
PPPoE(supports MRU Configuration)
PPTP
L2TP - MAC Clone :Modify WAN/LAN MAC Address (LAN MAC Address can be modified only in Standalone Mode)
- DHCP :DHCP Server
DHCPv6 PD Server (only in Standalone Mode)
DHCP Options Customization
DHCP Address Reservation
Multi-IP Interfaces
Multi-Net DHCP - IPv6 :StaticIP/SLAAC/DHCPv6/PPPoE/6to4Tunnel/PassThrough/Non-Address mode
- VLAN :802.1Q VLAN
- IPTV :IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
ADVANCED FUNCTIONS
- Advanced Routing :Static Routing
Policy Routing
RIP (available in Standalone Mode)
OSPF (available in Standalone Mode) - Bandwidth Control :IP-based Bandwidth Control
- Load Balance :Intelligent Load Balance
Application Optimized Routing
Link Backup (Timing, Failover)
Online Detection - NAT :One-to-One NAT
Multi-Net NAT
Port Forwarding
Port Triggering§
NAT-DMZ
FTP/H.323/SIP/IPSec/PPTP ALG
UPnP - Session Limit :IP-based Session Limit
VPN
- GRE :? (Only in Standalone Mode)
- SSL VPN :50 Tunnels
- IPsec VPN :100 IPSec VPN Tunnels
LAN-to-LAN, Client-to-LAN
Main, Aggressive Negotiation Mode
DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
IPsec Failover
IKE v1/v2
MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
NAT Traversal (NAT-T)
Dead Peer Detection (DPD)
Perfect Forward Secrecy (PFS) - PPTP VPN :PPTP VPN Server
PPTP VPN Client (10)**
50 Tunnels
PPTP with MPPE Encryption - L2TP VPN :L2TP VPN Server
L2TP VPN Client (10)**
50 Tunnels
L2TP over IPSec - OpenVPN :OpenVPN Server
OpenVPN Client (5)**
55 OpenVPN Tunnels
"Certificate + Account" Mode
Full Mode
AUTHENTICATION
- Web Authentication :No Authentication
Simple Password*
Hotspot (Local User /Voucher*/ SMS/Radius*)
External Radius Server
External Portal Sever<*
LDAP§
MANAGEMENT
- Omada App :Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
- Centralized Management :Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller - Cloud Access :Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
- Service :Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
- Maintenance :Web Management Interface
Remote Management
Export & Import Configuration
SNMP v1/v2c/v3
Diagnostics (Ping & Traceroute) (only in Standalone Mode)
NTP Synchronize (only in Standalone Mode)
Port Mirroring
CLI (only in Standalone Mode)
Syslog Support - Zero-Touch Provisioning :Yes. Requires the use of Omada Cloud-Based Controller.
- Management Features :Automatic Device Discovery*
Batch Configuration*
Batch Firmware Upgrading*
Intelligent Network Monitoring*
Abnormal Event Warnings*
Unified Configuration*
Reboot Schedule*
OTHERS
- Certification :CE, FCC, RoHS
- Package Contents :ER7406
Power Cord
Quick Installation Guide
Rackmount Kit - System Requirements :Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10
MAC OS, NetWare, UNIX or Linux - Environment :Operating Temperature: 0 °C to 50 °C (32 °F to 122°F)
Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensing
