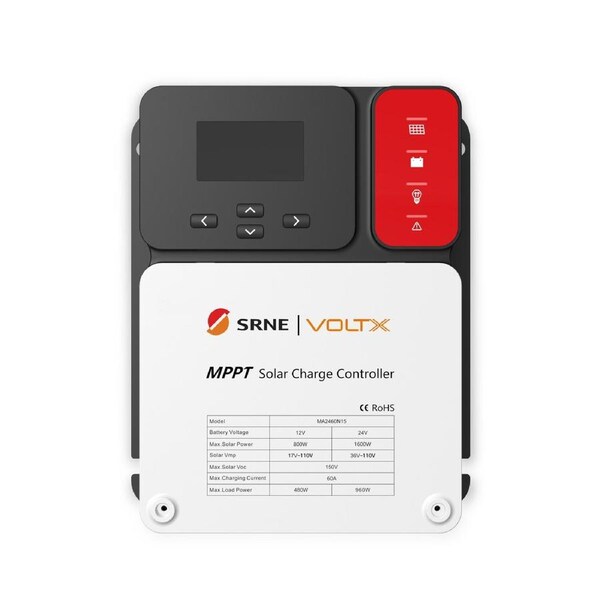

SRNE VOLTX MPPT Solar Charge Controller Makes Your Energy Management More Efficient!
Features:
【Advanced Maximum Power Point Tracking】This serie controller adopts the industry-leading MPPT which tracking efficiency up to 99.9% to achieve the maximum energy trackingfor the solar panel, that is, it can quickly and accurately track the maximum power point of the solar battery on any condition.
【Temperature Sampling and Control】Fitted with a Remote Temperature Sensor, the MPPT Charge Controller can measure battery temperature in real-time. Connect the temperature sensor to the corresponding temperature interface to achieve the high and low temperature protection for the battery and the temperature compensation for the charging voltage of lead-acid battery (no temperature compensation for the lithium battery) , assuring stable and constant charging.
【Support TTL & RS485 & CAN & Bluetooth Communication】MPPT solar charge controller has powerful TTL and RS485 communication protocol function. By connecting the controller with other devices, you can easily obtain the status information of the charger, adjust battery charging parameters, etc. and under the Bluetooth Communication you can view fault status through the mobile app.
【Intelligent Protection Functions】MPPT provides multiple protection functions: Over-temperature protection of device, Battery over-temperature protection, Input over-power protection, PV input side too high voltage protection, PV input reverse-connection protection, Reverse charging protection at night.
【Max. Solar Input Power 12V/800W 24V/1600W】The MPPT charge controller can work with standard off-grid 12/24V solar panels. In particular, this controller will significantly increase the efficiency of a solar system where the solar panel voltage is much higher than the battery voltage.
Electrical Parameters
Static power consumption: ≤50mA
Battery Type: USE/FLD/GEL/LI/SLD(Default)
System voltage: 12V/24V
Battery's operating voltage range: 8V-32V
Rated charging current: 60A
Maximum PV Input Current: 53A
Maximum solar panel power: 800W/12V; 1600W/24V
Maximum PV open-circuit voltage: 150V
MPPT operating voltage point range: (Battery Voltage +2)~110V
MPPT tracking efficiency: >99%
Charging conversion efficiency: 85%-98% (10%-100% of rated power)
Rated load current: 40A
Load operating mode: Pure light-dependent control, light and time-dependent control, manual mode (default), debugging mode, normally opened.
TTL communication: Baud Rate 9600kps
RS485 communication: 2 isolated RS485 communication ports,
supporting parallel use, with power output of 5V200mA, baud rate of 9,600kps by default and adjustable.
Bluetooth communication: Built-in
CAN communication: RV-C Protocol
Historical data: Can store historical data of the past 300 days
Backlight function: Light up if the key is pressed down, and automatically turn off in 20s if there is no key action
Protection function: PV Overvoltage Protection, PV Reverse Connection Protection, PV Short-Circuit Protection, Nighttime Reverse Charge Protection, Input Limited Power Protection, Overtemperature Protection, Load Short-Circuit Protection, Load Overload Protection, Battery Supervoltage/Over-discharge Protection, Battery Reverse Connection Protection and Battery Terminal Short-Circuit Protection.
Grounding type: Co-negative design and negative grounding
Cooling mode: Natural Cooling
Parallel connection for charging: Yes
Charging voltage line loss compensation: Yes
Support full settings: Yes
Constant voltage output setting: Yes
Charging temperature compensation of lead-acid battery: Yes
Temperature protection: Yes
Overload/short-circuit protection: Yes
Load pre-start: Yes
Environmental Data
Protection grade: IP32
Operating ambient temperature range: -35°C~ 65°C (no derating within 45°C if well ventilated)
Dimensions & Weight
Dimension: 260x216x98.5mm
Mounting hole spacing: 200 mm
Weight: 3.4kg
Fixed hole position: Φ10mm
Package List
1x 60A MPPT Solar Charge Controller
