Blustream 4K 100M RJ45 Video RCA Optical Audio HDBaseT CSC HDMI Extender Kit
The HEX150CS-KIT extender set is an industry leading HDMI2.0 4K 60Hz 4:4:4 HDCP 2.2 HDBaseT™ solution utilisingCSC technology with video down conversion. Supports HDMI, bi-directional IR, RS-232and PoH (PoE) up to lengths of 150m over a single CAT cable. also provides enhanced features including ARC via HDMI or optical (S/PDIF) and Ethernet passthrough.
Key Features:
- Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
- Advanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR support
- Video down-conversion on outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 or 4K 60Hz 4:2:0 video content while still showing maximum original 4K UHD resolution on remaining video outputs
- Supports 4K 60Hz 4:4:4 UHD video up to 100m
- Extends HDMI 1080p video up to 150m (HDBaseT™ long-reach mode)
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
- HDMI re-clocking on the HDBaseT™ Receiver to help solve HDMI, HDCP, compatibility, and handshaking issues
- Supports ARC (Audio Return Channel) from display via HDMI and optical digital inputs
- Supports audio return to HDMI, optical digital, and analogue L/R audio outputs (analogue output supports 2ch PCMonly)
- Supports all known HDMI audio formats including DolbyTrueHD, Atmos and DTS-HD Master Audio transmission
- Bi-directional 10/100BaseT Ethernet pass through
- Bi-directional IR & RS-232 pass through
- Supplied with Blustream 5V IR receiver and emitter
- Bi-directional PoH (Power over HDBaseT™) to power extenders from either transmitter or receiverend
- Advanced EDID management
- HDCP2.2 support
Specifications:

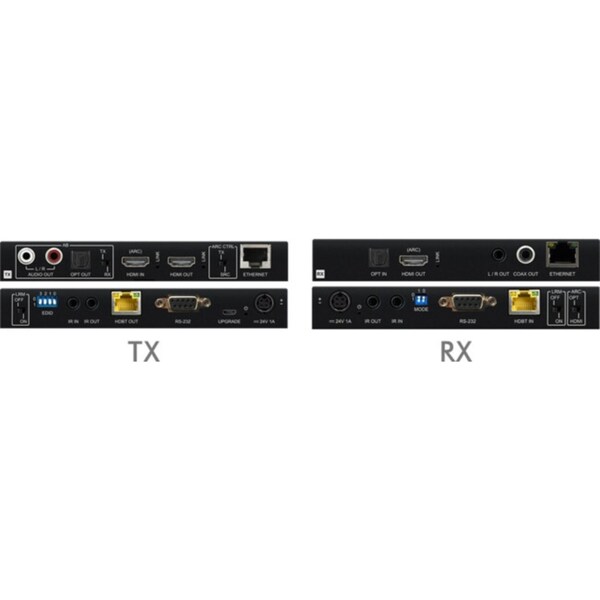

HEX150CS-TX
- Video Input Connectors: 1 x HDMI Type A, female
- Video Output Connectors: 1 x HDBaseT™ RJ45 connector
- Audio Output Connectors: 2 x RCA (L/R), 1x Optical (S/PDIF)
- Ethernet port: 1 x RJ45 connector
- RS-232 serial port: 1 x DB-9 female
- IR Input ports: 1 x 3.5mm stereo jack
- IR Output ports: 1 x 3.5mm mono jack
- EDID: 4-PIN DIP switch
- Power Supply: 1 x 24V/1A DC, 4-pin DIN connector
HEX150CS-RX
- Video Input Connectors: 1 x HDBaseT™ RJ45 connector,
- Video Output Connectors: 1 x HDMI Type A, female
- Audio Input Connectors:1 x Optical (S/PDIF)
- Ethernet port: 1 x RJ45 connector,
- RS-232 serial port: 1 x DB-9 female
- IR Input ports: 1 x 3.5mm stereo jack
- IR Output ports: 1 x 3.5mm mono jack
- Power Supply: 1 x 24V/1A DC, 4-pin DIN connector
- Casing Dimensions (W x D x H): 148mm x 134mm x 22mm (RX), 156mm x 123mm x 23mm (TX)
- Dimensions including connections (W x D x H): 148mm x153mm x 22mm (RX), 156mm x 135mm x 23mm (TX)
- Operating Temperature: 32°F to 104°F (0°Cto 40°C)
- Storage Temperature : -4°F to 140°F (-20°C to 60°C)
- Mounting kits included
- Power Supply: 1 x 24V/1A DC, screw connector
Box Contents:
- 1 x HEX150CS-TX
- 1 x HEX150CS-RX
- 1 x 24V/1A DC power supply
- 1 x IR receiver
- 1 x IR emitter
- 2 x Mounting brackets
- 1 x Quick Reference Guide
