Overview

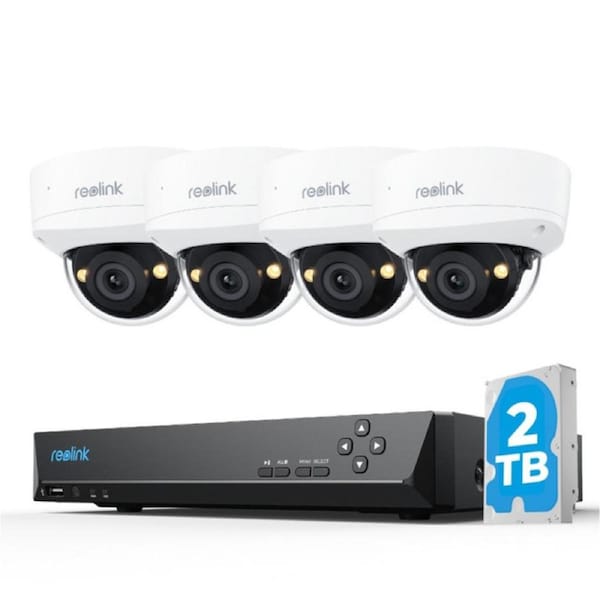

This is a 12MP UHD surveillance system supporting 145° FOV. It includes a 8-channel NVR with 2TB HDD and 4pcs of 12MP PoE cameras rated IK10 vandal-proof. This system also supports up to 16TB storage capacity, spotlight color night vision, smart detection, and two-way audio.
Features and Details
12MP Clarity. Day or Night.
Capture every detail in stunning 12MP HD, even in low-light conditions. Choose from multiple night vision modes: illuminate the darkness with motion-activated or always-on color night vision, or switch to traditional infrared for discreet surveillance. With adjustable brightness and a warm 3000K glow, the spotlight ensures comfortable viewing and true-to-life colors.
Capture the Bigger Picture
See more of what matters with the expansive 145° field of view. Equipped with a 2.8mm lens, each camera in this system captures a wider area, reducing blind spots and ensuring comprehensive security coverage of your property.
Smart Detection for Peace of Mind
Experience fewer false alarms with our intelligent detection system. Accurately distinguish between people, vehicles, and animals, ensuring you only receive relevant alerts. Get instant push notifications directly to your phone, keeping you informed and in control, all without any monthly fees.
Two-Way Talk and Dual Deterrents
Communicate directly through your camera with clear two-way audio, accessible via the Reolink App or Client. Hear what's happening and respond in real-time, whether to greet a visitor or warn off an intruder. With the spotlight and siren deterrents, your home security is further enhanced.
24/7 Recording for Uninterrupted Security
Your security never sleeps, and neither does your camera system. With a pre-installed 2TB hard drive, you can store footage from all four cameras, ensuring continuous recording around the clock. Need more space? Expand your storage capacity up to 16TB for even longer recording periods. True peace of mind, all with offline 24/7 recording.
Real-Time Alerts
Receive instant push notifications and email alerts whenever motion is detected, ensuring you're always aware of what's happening.
Easy Live View
Monitor multiple cameras simultaneously on a single screen, giving you a comprehensive view of your surroundings.
Smart Playback
Filter recordings by type (motion, person, vehicle, animal) to save time and easily locate specific events.
Customizable Detection Zones
Tailor your motion detection to focus on specific areas of interest, ensuring you only receive alerts when it matters most.
Weatherproof Reliability with IP67 Rating
Rain or shine, your security remains uncompromised. With an IP67 weatherproof rating, these cameras are built to withstand the elements, making them suitable for both indoor and outdoor use. Install them confidently knowing they'll continue to protect your property, no matter the weather conditions.
Expand Your System with Reolink Compatibility
Your security needs are unique, and your system should be too. This system offers exceptional expandability, seamlessly integrating with a wide range of Reolink cameras. Choose from various resolutions and styles, including PoE cameras for wired connections and Wi-Fi cameras for flexible placement.
Hassle-Free Setup: Plug and Play PoE
Experience the convenience of plug-and-play installation with our PoE (Power over Ethernet) system. No need for separate power cables for each camera.
Step 1. Set up the NVR: Connect the NVR to a power source and then to your router.
Step 2. Set up the Cams: Use an Ethernet cable to connect each PoE camera directly to the NVR.
Step 3. Scan & Preview:Scan the NVR's QR code using the Reolink App and view your live camera feeds.
What's in the Box
- 1 x RLN8-410 NVR
- 4 x Camera
- 1 x NVR Power Adapter
- 1 x HDMI Cable
- 1 x USB Mouse
- 1 x 1m Network Cable
- 4 x 18m Network Cable
Free Shipping
Generally Shipped Out in 2 Business Day
Warranty
We provide a 2-year limited warranty for new Products (IP Camera/NVR System/Accessories) purchased from Reolink and a 1-year warranty for Reolink Certified Refurbished Products.
If you encounter any issues with Reolink products, please feel free to contact us and we will help process the warranty accordingly.
30-Day Return Policy
You may return the unwanted product to Reolink for a full refund or replacement within 30 days of the delivery date. You are responsible for the shipping fees. Beyond the end of those 30 days, refunds and exchanges for unwanted products are not available.
NVR Specifications
- IP Video Input: PoE IP Camera x 8
- ynchronous Playback: Up to 4 channels
- SATA: 1 x SATA interface (1 x 2TB HDD included)
- External HDD: 1 eSATA Interface for HDD
- Capacity: Up to 16TB (max. 8TB capacity for each HDD)
- USB Interface: 2 x USB 2.0
- Network Interface: 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface for LAN/WAN; 8, RJ-45 10/100 Mbps self-adaptive PoE
- Ethernet interface for IP camera
- Supported Standard: IEEE 802.3af/at
- Network Protocols: HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP
- Browsers Supported: Edge, Firefox, Chrome, Safari
- OS Supported: PC: Windows, Mac OS; smartphone: iOS, Android
- Max. User Access: 20 users (1 admin account & 19 user accounts); supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams)
- Power Supply: DC 48V~53V
- Dimensions: 260 x 41 x 230mm
- Weight: 1.4kg
Camera Specifications
- Image Sensor: 1/2.49" CMOS sensor
- Resolution: 4512×2512 (12 Megapixels)@20FPS
- Lens: f=2.8mm F=2.0
- Video Compression: H.265 (more than 5MP); H.264 (others)
- Field of View: Horizontal: 121°; Vertical: 63.4°; Diagonal: 145°
- Infrared Night Vision: Up tp 30 meters(100ft); LED: 2pcs/2W/850nm(auto-switching with IR-cut filter)
- Color Night Vision: With spotlights: 2pcs/3W/3000K (adjustable)
- Frame Rate: 2fps - 20fps (default: 20fps)
- Audio: Two-way audio
- PoE: IEEE 802.3af, 48V, active
- Power Requirements: DC 12.0V 1A, <12W
- Smart Alarm: Motion detection; person detection; vehicle detection; animal detection
- Recording Modes: Motion-triggered recording (default); scheduled recording; 24/7 recording
- Working Environment: Operating Temperature: -10°C to 55°C (14°F to 131°F); Operating Humidity: 10% to 90%
- Weatherproof: IP67
- Dimensions: 117 × 86mm
- Weight: 570g
