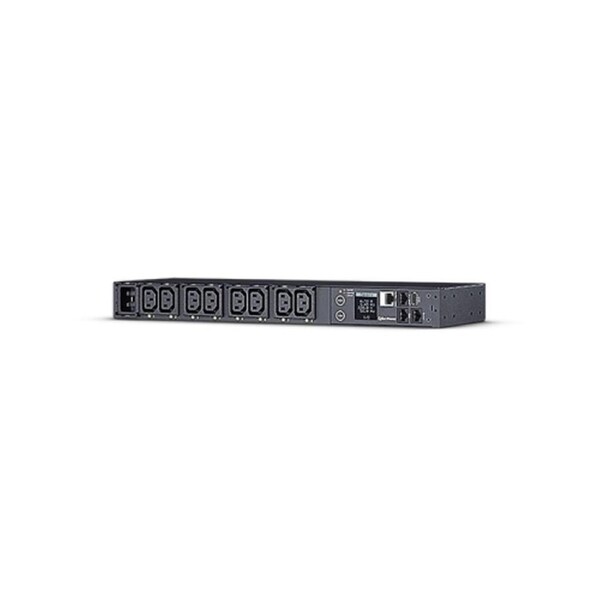

CyberPower Switched Enclosure PDU 16-Amp

Delivery varies by location, please see the expected timeframe to receive your product below:

• Metro: 1-2 business days
• Regional: 2-6 business days

Small items can be delivered to PO Box addresses or Parcel Lockers.

Change of Mind Returns:

Most products come with a 30 day change of mind policy. Please contact us via your MyDeal Account for return approval.

Please Note:

• All unwanted items must be unopened, undamaged and in saleable condition with no writing, labels or sticky tape on package boxes otherwise the request may be rejected
• Postage is paid by the customer
• We do not accept responsibility for return items until they reach our warehouse, so we strongly recommend using tracking and/or insurance for the delivery
• Fees may apply

Warranty Claims:

Most of our products are supported by a 12 month warranty. This warranty covers all manufacturer faults with the product. Some of our products may have a different warranty period, please check the product description for this. Should an issue arise with your order, please contact us via your MyDeal Account to raise a warranty claim.

Specifications:

• Nominal Input Voltage ( Vac ): 100 - 240
• Input Frequency ( Hz ): 50 / 60
• Maximum Input Current ( A ): 16
• Input Connector Type: IEC C20 x 1
• Power Cord Length: 3.05m
• Output Voltage ( V ): Depends on Input
• Idle Power Consumption ( W ): < 5
• Outlet(s) - Total: 8
• Outlet Type: IEC C13 x 8
• Remote Individual Outlet Control: Yes
• LCD Information Display: Input Voltage (Volts) Input Frequency (Hz) Current Level (Amps) Power Consumption (Kilowatts) Network Information Serial Number Environment Status Hardware Version Firmware Version
• Hot-swappable LCD Module: Yes
• Auto LCD Orientation: Yes
• LCD Setting & Control: Outlet Control LCD Settings Reset / Reboot
• LED Indicators: PDU Status Tx/Rx Link Outlet
• Outlet Metering Capability: 1%
• A-type USB Port: Yes
• Connectivity Port: RJ45 RJ45 (for Serial) RJ45 (for ENVIROSENSOR/ Daisy Chain (In)) RJ45 (for Daisy Chain (Out))
• Environmental Sensor Supported: Yes
• User-upgradeable Firmware: Yes
• Power Management Software: PowerPanel Business (Recommended for small-medium scale management) PowerPanel Enterprise (Recommended for large scale management)
• Supported Protocols: IPv4/v6 SNMPv1/v3 HTTP/HTTPs TCP/IP UDP DHCP NTP DNS SMTP SSH SSL TLS Telnet FTP and Syslog
• Authentication: RADIUS LDAP LDAPS Windows AD
• Installed Rack Height (U): 1
• Form Factor: 1U Vertical Rackmount 1U Horizontal Rackmount
• Enclosure Construction: Steel
• Cord Retention Tray: Yes
• IEC Receptacle Locking: Yes
• External Site Ground Pin: Yes
• Adjustable Mounting Brackets: 2 Set (L-short | L-long)
• Dimensions: 433 x 44 x 112mm
• Weight: 2.1kg
• Certifications: CE | FCC Class A | UL60950 | UL62368 | EN 55032 Class A
• RoHS: Yes

Features:

• Real-time Local/Remote Monitoring and Switching
• Work under High Temperature
• 1% Measurement Accuracy
• Digital Real-time Load Display
• Hot-swappable LCD Design
• LED Status Indicator
• Supports ENVIROSENSOR
• PowerPanel Management Software
• Cord Retention Tray
• Controllable Receptacles with Power Sequencing
• Ultra Low Power Consumption
• Industrial-grade Metal Housing
• User Configurable Color LCD
• Rotatable LCD for Proper Display Orientation
• Firmware Upgrade via USB
• User-upgradeable Firmware
• Adjustable Mounting Brackets
• IEC Receptacle Locking
