Overview

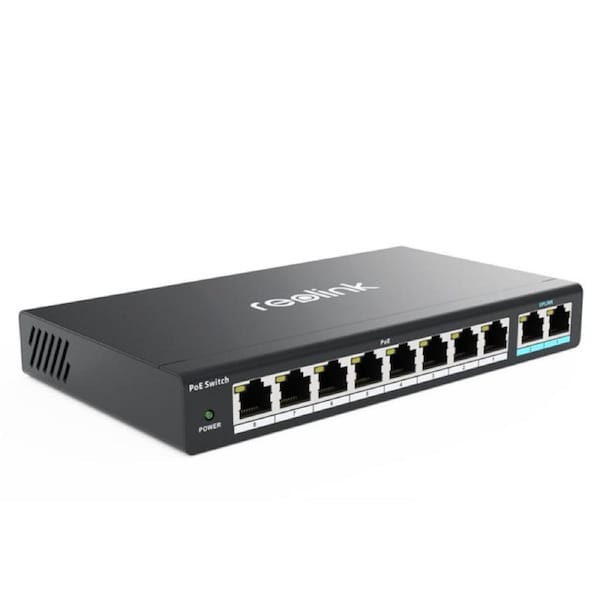

This is a 10-port PoE switch featuring 120W power budget, 8 PoE+ ports, 2 Gigabit Ethernet uplink, power management, fanless quiet design, and durable metal housing.
Features and Details
Power over Ethernet
Reolink PoE switch provides a reliable PoE solution featuring 8 PoE+ ports (10/100Mbps) and 2 Gigabit Ethernet uplink ports (10/100/1000Mbps). Compliant with IEEE802.3af/at standard, it can deliver up to 30W for each PoE port and has a total power budget of 120W for at most 8 PoE devices.
Power Management
This PoE switch features the power management mechanism, so when the total allocated power exceeds the power budget (120W), the PoE ports will be powered off one by one starting from Port 8 until the total power is below the threshold that the PoE switch is capable of supplying.
Auto Detection of Adaptive Devices
Reolink PoE switch will automatically detect whether the device connected to its ports is a PoE device and whether it needs to be powered. To avoid damage, it will not supply power to non-PoE devices.
4KV Surge Protection
Applying professional lightning protection, this PoE switch will effectively prevent the power of lightning strikes from damaging connected devices and ensure their long-term service.
Plug & Play
Reolink PoE switch works perfectly with your PoE cameras and transfers both data and electric power, with only one Ethernet cable required. Easy to set up even for beginners. Designed to meet your diverse needs, it can be directly connected to your NVR for higher reliability and security, or it can be connected to the same LAN as your product to support more features of your cameras.
What's in the Box
- 1 x PoE Switch
- 1 x 120W Power Adapter
Free Shipping
Generally Shipped Out in 2 Business Day
Warranty
We provide a 2-year limited warranty for new Products (IP Camera/NVR System/Accessories) purchased from Reolink and a 1-year warranty for Reolink Certified Refurbished Products.
If you encounter any issues with Reolink products, please feel free to contact us and we will help process the warranty accordingly.
30-Day Return Policy
You may return the unwanted product to Reolink for a full refund or replacement within 30 days of the delivery date. You are responsible for the shipping fees. Beyond the end of those 30 days, refunds and exchanges for unwanted products are not available.
- PoE Port: 8*10/100mbps
- Uplink Port: 2*100/1000mbps
- Power Voltage: Input voltage: AC 100-240V; Power supply: 52V 2.3A 120W
- PoE Protocol: IEEE 802.3af/IEEE 802.3at
- Max Power/Port: 30W
- Operating temperature: -10°C~+45°C (14°F~113°F)
- Operating humidity: 10% ~ 90%, non-condensing working
- Dimension: 189.6*106.6*25.6mm
- Weight: 457.9g
