Overview

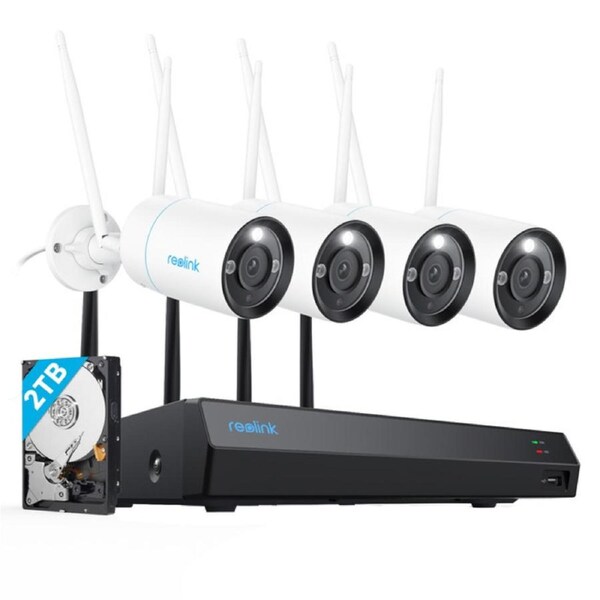

The 4K security system features Wi-Fi 6 tech, 5/2.4 GHz dual-band Wi-Fi, a 12-channel 2TB HDD NVR, four 4K cameras, up to 16TB storage capacity, color night vision, IP67 weatherproof, smart alerts, and two-way audio.
Features and Details
All-Around Protection, All in Control
Easily build your own security center with this powerful WiFi camera system. No more messy and expensive network cabling. The cameras in it can be managed via the NVR to stand guard over every inch of your property. Everything is under your control.
Next-Gen Wi-Fi 6
With dual-band Wi-Fi 6, the system achieves long-distance streaming with faster speed and stronger signal. The BSS Coloring technology minimizes the co-channel interference, while OFDMA and MU-MIMO technologies maximize the network efficiency, leading to reduced latency and jittering.
Go Faster on Streaming
With Wi-Fi 6's 1024-QAM, data transfer speed has increased by 25% compared to standard Wi-Fi 5. Enjoy fast connections with minimal latency.
Expanded Coverage
The NVR's four high-gain external antennas and the cameras' 2T2R MIMO antennas offer superior signal strength, providing coverage of up to 1,000* square meters. Stay connected, stay secure.
4K Stunning Videos, Day & Night
4K Ultra HD opens up a world of possibilities. Say goodbye to blurry images and hello to crystal-clear visuals. Enjoy full-color nighttime footage or switch to black & white vision as you like.
Smart Detection
Cameras in this kit intelligently detect person/vehicle/animal and send instant alerts to your devices, greatly minimizing false alarms. All are provided for free.
Dual Warning
Get an extra layer of security with the motion-activated spotlights and the siren to deter unwanted guests. You can also manually turn them on/off via Reolink App or Client.
Two-Way Audio
Communicate with anyone who approaches your home with the cameras' built-in microphones and speakers. You can greet friends or warn potential intruders like you're right there.
*The feature is currently only available through Reolink App or Client.
Reliable 24/7 Recording with Local Storage
Enjoy uninterrupted recordings even without the Internet. The NVR comes with a 2TB HDD and can be expanded up to 16TB to save 10 days of your 24/7 footage from four cameras locally. Additionally, WiFi 6 with WPA3 ensures high-class network security, offering robust encryption and authentication mechanisms to protect your data and privacy.
Easier Live View & Playback
Access smooth real-time live view from anywhere, anytime via Reolink App or Client. Filter recordings by timeline and event type to quickly locate your footage.
Flexible Recording Options
Choose between continuous recording, motion-triggered recording, and scheduled recording to meet your needs. The recordings can also be uploaded to your FTP/NAS server.
Ready for any Weather
With the robust housing, the cameras are built to brave anything from torrential downpours to freezing snowstorms. So go ahead and place them anywhere for uninterrupted service.
Simple & Tidy Setup
Step 1 Initialize the NVR: Power on the NVR. Connect it to your monitor with the HDMI/VGA cable and to your router with an Ethernet cable.
Step 2 Initialize the Cameras: Power on the cameras and connect them to the NVR with Ethernet cables. Complete the initial setup and sync WiFi info on the monitor.
Step 3 Install the Cameras: Disconnect the Ethernet cables from the cameras and install them where needed most. Then you can enjoy the live view via the monitor, Reolink App or Client.
What's in the Box
- 4 x Camera
- 1 x NVR
- 4 x Power Extension Cable (White)
- 1 x NVR Power Adapter
- 4 x 12V/1A Power Adapter
- 1 x HDMI Cable
- 1 x USB Mouse
- 2 x 1m Network Cable
Free Shipping
Generally Shipped Out in 2 Business Day
Warranty
We provide a 2-year limited warranty for new Products (IP Camera/NVR System/Accessories) purchased from Reolink and a 1-year warranty for Reolink Certified Refurbished Products.
If you encounter any issues with Reolink products, please feel free to contact us and we will help process the warranty accordingly.
30-Day Return Policy
You may return the unwanted product to Reolink for a full refund or replacement within 30 days of the delivery date. You are responsible for the shipping fees. Beyond the end of those 30 days, refunds and exchanges for unwanted products are not available.
NVR Specifications
- IP Video Input: Up to 12 IP cameras
- Audio Input: Cameras with built-in mic
- Video Output: VGA, HDMI
- Display Resolution: HDMI: 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768 VGA: 1920x1080, 1280x1024, 1280x720, 1024x768
- Audio Output: 1-channel, RCA
- Video Compression: H.265/H.264
- Synchronous Playback: Up to 4 channels
- SATA: 1 x SATA interface (1 x 2TB HDD included)
- Capacity: Up to 16TB
- USB Interface: 2 x USB 2.0
- Network Interface: 4 x RJ-45, 10/100 Mbps self-adaptive (for IP cameras) 1 x RJ-45, 10/100 Mbps self-adaptive (for LAN/WAN)
- Wireless Standard: IEEE 802.11a/ac/ax/ b/g/n
- Operating Frequency: 2.4 GHz/5 GHz
- Wireless Security: WPA/WPA2/WPA3
- Network Protocols: HTTPS, TCP/IP, UDP, DHCP, P2P, UPNP, RTMP, RTSP,SMTP, SSL/TLS, DNS, DDNS, NTP, FTP
- Browser Supported: Edge, Firefox, Chrome, Safari
- OS Supported: PC: Windows, Mac OS; smartphone: iOS, Android
- Max. User Access: Max. 20 users (1 admin & 19 users); Max. 12 simultaneous streams (10 sub & 2 main streams)
- Power Supply: DC 12V/2A
- Power Consumption: <10W (with 2TB HDD)
- Working Environment: Temperature: -10°C-+45°C (14°F-113°F); Humidity: 10%-90%
- Dimensions: 255mm(W) x 49.5mm(H) x 222.7mm(D)
- Weight: 1.4kg
Camera Specifications
- Image Sensor: 1/2.7" CMOS Sensor
- Resolution: 3840 x 2160 (8 megapixels) @20fps
- Lens: f=4.0 mm fixed; F=2.0, with IR Cut
- Video Compression: H.264/H.265
- Field of View: Horizontal: 88.8° Vertical: 45.2° Diagonal: 106.2°
- Day/Night Mode: Auto-switching
- Night Vision: Up to 30 meters (100ft) ; LED: 18 pcs/14mil/850nm
- Color Night Vision: With spotlights: 1pcs/4.3w/6500k
- Frame Rate: Mainstream: 2fps - 20fps (default: 20fps) Substream: 20fps
- Code Rate: Mainstream: 2048Kbps - 5120Kbps (default: 4096Kbps) Substream: 1228Kbps
- Audio: Audio recording
- Power Requirements: DC 12.0V?1A, <12W
- Power Port: DC power port
- Ethernet Port: One 10M/100Mbps; RJ45
- Storage: Reolink NVR
- Audio In/Out: Built-in microphone
- Wireless Standard: IEEE 802.11a/ac/ax/ b/g/n
- Operating Frequency: 2.4GHz/5GHz
- Wireless Security: WPA/WPA2/WPA3
- Protocols & Standards: SSL, TCP/IP, UDP, UPNP, NTP, DHCP, DNS, DDNS
- User Access: Max. 20 users (1 admin & 19 users); Max. 12 simultaneous streams (2 main & 10 sub streams)
- Smart Alarm: Motion detection; person detection; vehicle detection; animal detection
- Recording Modes: Motion-triggered recording (default); scheduled recording, 24/7 recording
- Weatherproof: IP67
- Dimensions: Φ67 x 187mm
- Weight: 485.7g
