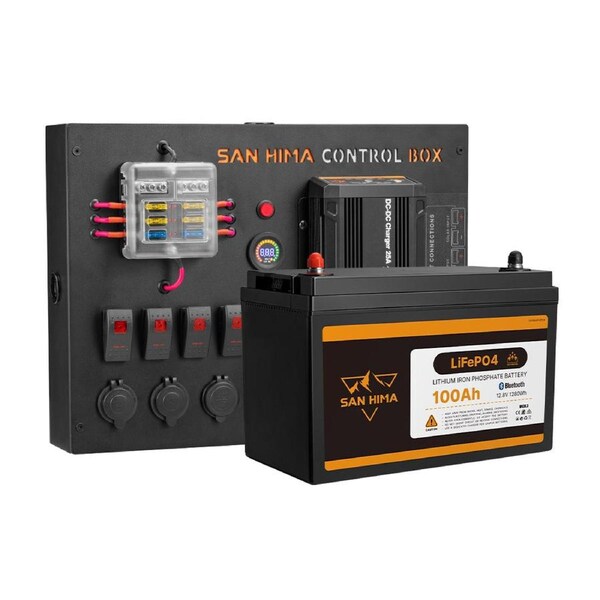

San Hima 12V 100Ah Lithium Iron Phosphate Battery Self-heating + 12V Control Box
DESCRIPTION
Tailored for 4WD van, canopy and DIY installations, the San Hima control box offers an upgraded control experience. With its design crafted to effortlessly manage all your 12V equipment, this versatile box also includes a convenient pre-installed 25Amp DC/DC charger, perfect for charging your auxiliary battery. The control box energizes up to 15 devices concurrently, boasting 5 accessory switches, 4 USB ports, 4 Anderson-style plugs, and 2 Cig sockets. Experience rapid charging with 1 USB-C PD and 3 QC 3.0 ports (Quick Charge 3.0), while seamlessly managing all your accessories with backlit rocker switches, visible day and night. Plus, the convenient 6-way external fuse panel ensures swift fuse replacements whenever needed. With Lithium Mode preserving battery health and Solar Priority Mode optimizing energy, our control box supports fuel-efficient adventures. Elevate your control experience and upgrade your adventure with the San Hima control box.
FEATURES
Automatic Self-Heating: Activates in low temperatures to maintain optimal working temperature, ensuring consistent output, efficiency, and extended lifespan.
Bluetooth Compatibility: Equipped with an app to monitor capacity, status, and temperature in real-time via Bluetooth, available on the App Store and Google Play.
6,000 Cycles: Powered by Grade A prismatic cells with higher energy density than cylindrical cells, it features a lifespan of 6,000 cycles, ensuring long-term reliability.
Flexible Configurations: Tailor your setup with options for 2s & 2p configurations, maximizing output potential for situations like power outages or hurricanes.
Powerhouse Performance: With a continuous discharge of 100A and a pulse discharge of 200A, our battery effortlessly powers fridge, air conditioner and kettle.
Smarter BMS: Upgraded for overvoltage, overcurrent, overdischarge, overcharge and overheat protection, minimizing cell degradation for safer operation.
Quick Recharge: Our smart LiFePO4 battery recharges faster with a maximum charging current of 50A, ensuring availability of power in time-sensitive situations.
Extended Usable Capacity: Our battery safely allows discharge to 80~90%, maximizing operational times compared to AGM batteries limited to 50% discharge.
Fire-Resistant Housing: Provides vertical burning resistance, reducing fire spread risks, especially in remote areas with delayed emergency responses.
Minimal Self-Discharge: Our LiFePO4 battery maintains minimal self-discharge, preserving charge for months in storage, ensuring reliable power whenever needed.
SPECIFICATIONS
Battery
Cell Type:Prismatic LiFePO4
Rated Capacity:100Ah
Nominal Voltage:12.8V
Cycle Life:6,000 (0.2c; DoD 80%)
Recommended Charge Current for Maximum Life:20A
Max. Continuous Charge Current:50A
Max. Continuous Discharge Current:100A
Max. Pulse Discharge Current (3s):200A
Charge Cut-off Voltage:14.4V
Discharge Cut-off Voltage:10.8V
Standby (Float) Voltage:10.8V~14.4V
Max. Modules in Series/Parallel Configuration:2S/2P or 2S 2P
Self-discharge (Per Month):3%
Internal Resistance:15m
Operating Temperatures:-20°C~55°C
Storage Temperatures:-20C~45C
Self-heating Activation Temperature: <0°C
Relative Humidity:95RH
Certifications:CE
Package Size:365mm x 255mm x 205mm
Package Weight:10.6KG
Control Box
Construction:Powder Coated Aluminum
Box Thickness:2MM
Voltage:12V/24V
Max Capacity:150A
Cable Size
Battery Connection Lead:4AWG
DCDC Charger
PACKAGE INCLUDES
1 x San Hima 100Ah Smart LiFePO4 Battery
1 x SAN HIMA CONTROL BOX
1 x Accessory Kit
2 x User Manual
WARRANTY
5 Years Warranty
