Overview
Light the Dark and Sharpen the Image:
Pioneering built-in LED fill light with Lumen Amplifier technology for reducing image noise. Shooting in dark or dim light is favored by the adjustable color temperature and brightness, which sharpens the image.
Quick Release 4.0 - Easier Balancing, Assembly and Disassembly
Upgraded quick release system with general quick release plate for easier balancing, assembly and disassembly. Locks with transverse palm-rejection design to protect cameras while ensuring efficiency. Inventive locks and latches for storage. Gimbal can be adjusted to half-storage/full-storage mode. No axis arm adjustments needed when switching to half-storage mode with a mounted camera, and no rebalances needed when expanded. Sharper and tinier in size in full-storage mode.
All-New Sleek Design with excellent gripping experience
An industry-first appearance design. Crane M3 ushers in appearance with fashionable white color. It definitely agrees more with your cute, compact camera. An ergonomic grip handle and comfortable material also better fits your palm.
A Real All-arounder
Expansion base with microphone connection port, 6.55 mm audio port and 1/4 expansion port unlock more using scenes. Vlogging, taking commercials, interviewing, recording while travel, Crane M3 covers all your needs.
Touch Screen Does More Than You Think
All-new full-color touch screen with advanced UI design and intuitive interface. The gimbal is tiny and portable like a smartphone that you can operate with just one hand at ease.
Take A Shortcut with Adjustment Wheel & Joystick
Find the buttons, wheels and the newly added round joystick at your comfort reach with the ergonomic control panel. Support adjustment on aperture, shutter, ISO and roll axis.
Charge Fast, and Faster
PD Fast Charge, Type-C charging port and 1150mAh battery capacity allow you to enjoy the following: Charge only 2 hours but work for 8 hours, using the gimbal while charging via power bank.
Wired/Wireless Camera Control
Wireless Control: Built-in receiver at the base can be paired with the transmitter module for wireless control of mainstream cameras via Bluetooth. Cable Control: Compatible with the camera shutter protocol, supports photo-taking, video filming, focus, digital/optical zoom within the permission of shutter protocol.
Stylish Backpack Ready for Every Travel
Backpack dedicated to CRANE-M3 made by ZHIYUN. Different layers for storing the camera, lens and other accessories. Stylish and exquisite surface with advanced technology and procedure to resist spills.
Specifications:
Grip Design: Single Handgrip (Slanted)
Gimbal
- Load Capacity: 2.48 lb / 1.12 kg
- Number of Axes: 3-Axis (Pitch (Tilt), Roll, Yaw (Pan))
- Rotation Range:
Mechanical Range: Yaw (Pan): 360o, Pitch (Tilt): 309o, Roll: 333o
Controllable Range: Yaw (Pan): 360o Unlimited, Pitch (Tilt): 205o (-45 to 160o), Roll: 60o (-30 to 30o)
Compatibility
- Camera Control: On Compatible Models
- Camera Mounting Screw: 1 x 1/4 Inch-20 Male
Connectivity
- Inputs/Outputs: 1 x USB-C (Power) Input1 x USB-C (Power / Control) Output
- Wireless Frequency: 2.4 GHz
- Wireless Protocol: Bluetooth 5.0, Wi-Fi (Unspecified Type)
Battery
- Battery Type: 1 x Built-In
- Battery Capacity: 1150 mAh
- Battery Runtime: 8 Hours
- Battery Charging Time: 2 Hours
Power
- Operating Voltage: 9.6 to 12.6 VDC
- Operating Current: 130 to 4700 mA
Environmental
- Operating Temperature: 14 to 122oF / -10 to 50oC
General
- Display Type: Fixed Touchscreen OLED
- Mounting: 1 x 1/4 Inch-20 Female
- Dimensions: 10.2 x 5.9 x 5.3 Inch / 259 x 150 x 135 mm (without Tripod), 11 x 6.2 x 3 Inch / 280 x 157 x 75 mm (Folded)
- Weight: 2.2 lb / 1 kg
In the Box:
Model: C020116G

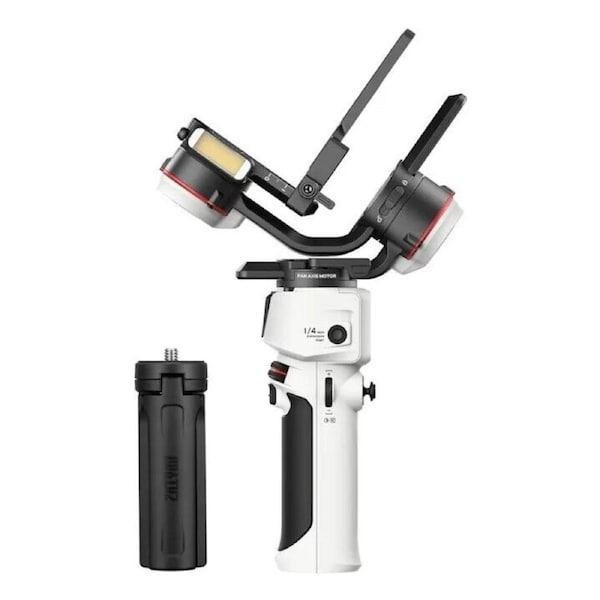

- Zhiyun CRANE-M3 3-Axis Handheld Gimbal Stabilizer (Standard Kit)
- Mini Tripod
- 4 x Fill Light Filter
- USB Type-C to Sony Multi Control Cable
- USB Type-C to Micro-USB Charging Cable
- USB Type-C to Type-C Charging Cable
- EPP Carry Case
