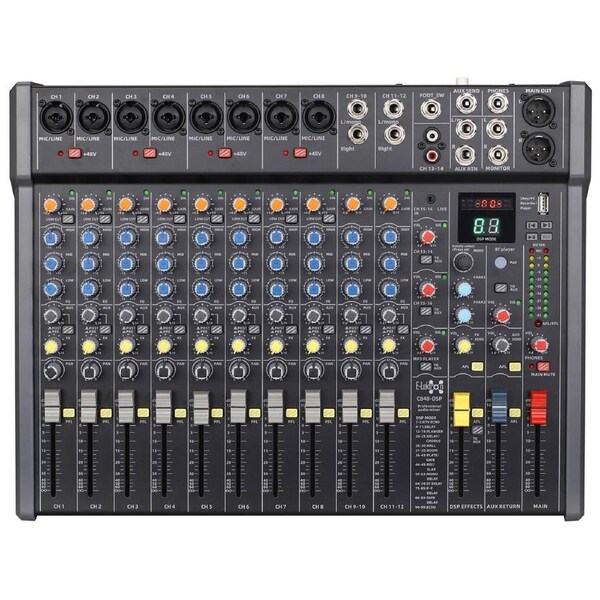

The E-Lektron C848 Audio Mixer is a professional 16-channel mixer designed for ultra-low-noise operation, ensuring clear and pristine sound quality. Equipped with the ability to both play and record music directly to and from a USB disc, it also features Bluetooth connectivity for seamless wireless streaming. This advanced functionality makes it ideal for a wide range of applications, from live performances to studio recordings, providing ultimate convenience and versatility for any audio setup.
The mixer boasts precise engineering and high-quality sliding potentiometers, which guarantee flawless operation and a long service life. Each input is fitted with a 60mm sliding potentiometer for easy and accurate volume adjustment, giving users complete control over their sound output. This attention to detail ensures that the E-Lektron C848 is not only functional but built to withstand the rigors of professional use.
Featuring 8 microphone inputs equipped with high-quality preamplifiers, the C848 delivers superior sound clarity and performance, making it perfect for vocal performances, speeches, or instrument recordings. In addition to the microphone inputs, there are 2 stereo line inputs, providing flexibility for connecting a variety of audio devices. The AUX input/output allows for signal sending and return, supporting effects loops or external processing units.
For monitoring, the C848 includes an independent system that allows for precise audio control during live performances or recordings. A dedicated headphone output further enhances the user's ability to monitor sound in real time, ensuring accurate mixing and adjustments on the fly. The built-in DSP effects processor offers 99 different effects, including reverb, delay, and modulation, adding depth and dimension to any audio mix.
With its combination of premium features, ease of use, and reliable performance, the E-Lektron C848 Audio Mixer delivers the best sound quality in its class. Whether for live sound reinforcement, studio mixing, or general audio applications, this mixer offers a universal solution for achieving professional-grade audio with confidence.
Features:
-
Low Distortion High Dynamic Response: Equipped with a low-noise preamp gain that delivers rich musical range, ensuring clear, high-quality sound with minimal distortion.
-
Inputs: 8 microphone inputs (XLR/6.3mm jack combo) with sensitivity control (GAIN), signal indicator, 3-band equalization, low cut filter, AUX signal control, effects level control, monitoring control, and direct volume adjustment via sliding potentiometers. Includes +48V phantom power for condenser microphones.
-
Stereo Inputs: 2 stereo input channels with sensitivity settings, signal indicators, 3-band equalizers, AUX signal control, built-in effects, monitoring functions, and volume adjustment via sliding potentiometers.
-
AUX Returns Outputs: Features 2 AUX return channels (L/R), with outputs including MAIN OUT, PHONES, MONITOR, AUX SEND, and a column LED level indicator for precise audio management.
-
Signal Monitoring LED Indicators: Independent signal level monitoring with a highly accurate 3-color, 10-band LED level indicator for real-time audio tracking.
-
DSP Effects Processor: Integrated 24-bit DSP processor with 48 kHz sampling rate, offering 99 customizable effects, including reverb, chorus, and delay.
-
Stereo MP3 Player/Recorder: Supports MP3/WAV/APE/FLAC formats, with a digital display. Functions as a USB audio interface for recording or playback via computer.
-
Bluetooth Connectivity: Wireless Bluetooth player enables music streaming from mobile devices, adding flexibility for live or studio environments.
Specifications:
- Inputs: 8 x combo XLR/jack + 4 x stereo L+R 6.3mm + stereo 3.5mm + Aux
- Power supply: 12Vdc 2A min. (USB-C adaptor included)
- Power consumption max.: 24W
- Effects: 99 program DSP (2 parameter controls)
- DSP sample rate: 48khz (24-bit)
- Audio source: Bluetooth receiver, USB mp3 player/recorder
- Bluetooth version: v5.1 (+BR+EDR+BLE)
- USB version: v1.1 audio (mp3/wav/ape/flac)
- EQ: low: ±15dB @ 80Hz
- EQ: high: ±15dB @ 12kHz
- Phantom power: +48V switchable in pairs (XLR inputs only)
- Frequency response: 20Hz - 22kHz (±1dB)
- Input level: Mic +10dBu max. / Line +22dBu max.
- Input impedance: Balanced XLR 2k Ohm, Balanced TRS jack 10k Ohm
- THD +N: 0.05% @ 1kHz
- Noise: EIN -122dBu (22Hz - 22kHz)
- CMRR: 75dB (Mic 1kHz)
- Sensitivity: XLR -60 to +10dBu, TRS jack -20 to +20dBu, Stereo -20 to +14dBu
- Crosstalk: stereo: 80dB (1kHz fader shutoff)
- Outputs: Left + Right balanced XLR, Headphones 6.3mm jack
- Max. output level: XLR +22dBu, TRS +20dBu
- Weight: 4kg
- Dimensions: 455 x 360 x 86mm
Package:
- 1 x C848-DSP compact USB mixer
- 1 x USB-C power adapter
-
