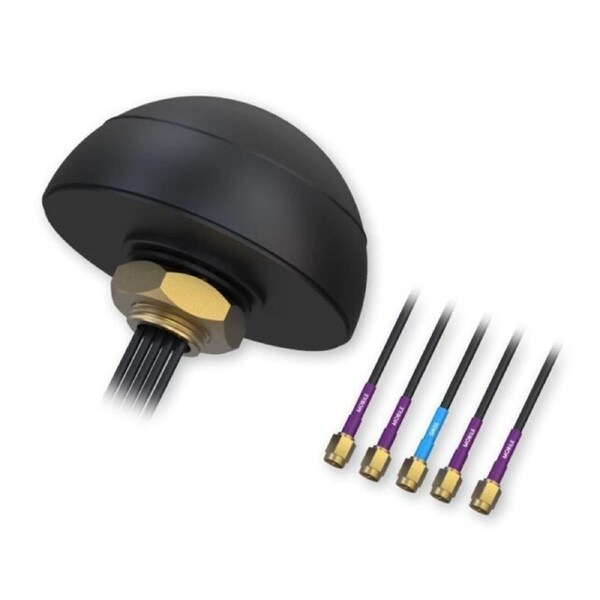

Teltonika COMBO QUAD MOBILE/GNSS ROOF SMA ANTENNA

COMBO QUAD MOBILE/GNSS ROOF SMA ANTENNA

TECHNICAL DATA

• Mounting method:Screw
• Radome ingress protection rating:IP65 (exclude cable outlet)
• Radome material:UV resistant plastic and cable
• Housing dimensions:Ø 110.0 x 53.0 mm
• Cable:5x RG174, 3000 mm
• Operating temperature:-40 ~ +85 °C
• Weight:525 ± 10 g
• UV resistance:YES
• RoHS Compliant::YES

LTE MIMO ANTENNA

• Frequency range:698 - 960, 1710 - 2690 MHz
• Polarization:Linear
• Gain:3.0 dBi
• V.S.W.R:<3.0
• Impedance:50 Ω
• Connector type and count:4x SMA Male

GNSS ANTENNA

• Frequency range:1575.42 ± 3 MHz
• Polarization:RHCP
• LNA gain:28 ± 2 dB
• LNA noise figure:≤1.5 dB
• V.S.W.R:<2.0
• Impedance:50 Ω
• Supply voltage: 3 - 5 VDC
• Current consumption:<15 mA
• Connector type and count: SMA Male
