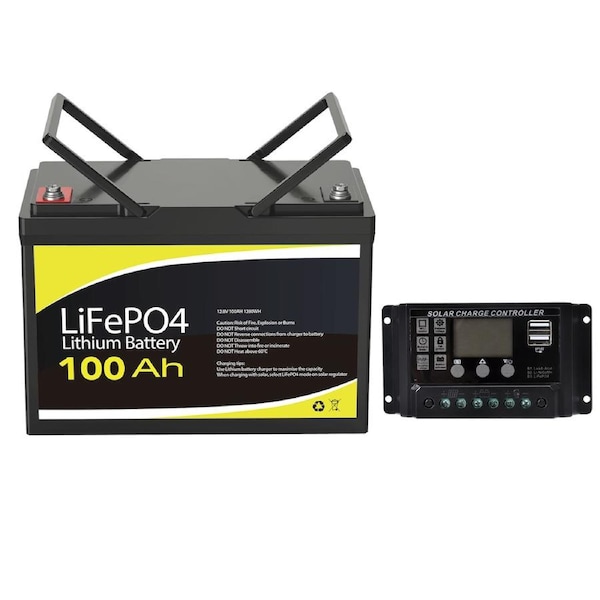

100Ah 12V Lithium Battery + 20A PWM Solar Controller

• Brand: Power Bolt
• Nominal Voltage: 12.8V
• Nominal Capacity: 100Ah
• Rated Energy: 1280Wh
• Approx Life Cycles: 3000
• Battery Manage System: 100A
• Standard Charging Current: 20A
• Max. Charging Current: 50A
• Standard Discharge Current: 50A
• Max. Continuous Discharge Current: 100A
• Max. Discharge Current 5 sec: 150A

• Charger: 14.6V 20A
• Charging Voltage: 14.6V
• Overcharge Protection: 14.6V
• Overcharge Recovery: 14.2V
• Overdischarge Protection: 10.6V
• Overdischarge Recovery: 11.2V

• Charge Temperature : 0°C to 45°C
• Discharge Temperature : -20°C to 60°C
• Storage Temperature: -10°C to 50°C
• Charge Method: CC/CV
• Charging Way: LiFePO4 Charger, Solar Panel
• Case Material: ABS Plastic
• Battery Type: LiFePO4 Lithium Battery
• Battery Model: Standard
• Certifications: MSDS, UN38.3
• Protection Class: IP65
• Warranty in Years: 1
• Bolt Type: M8
• Bolt Material: Iron nickel-plated
• Cell Grouping: 4S2P

• Product Size: L306 x W169 x H215mm
• Package Size: L360 x W230 x H271mm
• Bolt Terminal Size: Hexagon x 12mm
• Bolt Terminal Perimeter: 25.12mm
• Net Weight: 14.5kg
• Gross Weight: 15.5kg

• 1x 100Ah Lithium Battery
• 2x Terminal Bolts M8*12
• 2x Insulating Covers
• 2x Screw Spring Washer
• 4x Screw Washers
• 1x User Manual

• Material: ABS
• System voltage: 12V / 24V AUTO
• Rated charge current :20A
• Discharge Current: 20A
• Max Solar Input: <50V
• Battery Type : b1 (12/24V), 1b1 (12V), 2b1 (24V) :lead-acid battery
• Absorption volt: 14.4V
• Float charge voltage: 13.7V (adjustable)
• Discharge stop: 10.7V (adjustable)
• Discharge reconnect: 12.6V (adjustable)
• Battery Type: ternary lithium: 1b2(3.7Vx3)(12V)
• Battery Type : LifePo4: 1b3(3.2Vx4) (12V)
• USB output: 5V/2A
• Operating temperature: -35°C-60°C
• Self-consume : <10mA
• Colour: Black


• Size:133x70x34mm
• Weight: 154g
