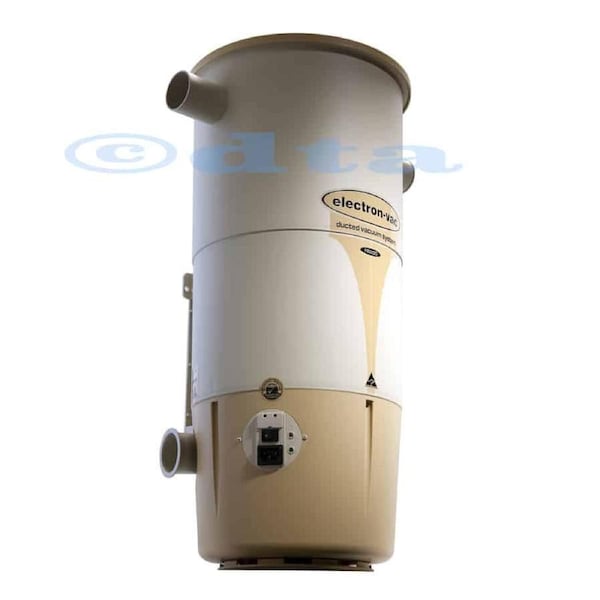

Electron EVS Ducted Vacuum Cleaner System Model FB200 electron vac FB200
Ideal For smaller Units with Low budget without compromising on quality
Model FB200
Vacuum Motor Specifications Tangential By-pass discharge l
Flow Through discharge
Double ball bearings l
Diameter of Motor mm 145
Air Watts 405
Airflow l/s (max.) 50
Sealed Vacuum mm H2O (max.) 2450
RPM @19mm working orifice 21200
Label Rated Electrical Watts 1400
Noise Level dbA with Silencer @ 3m 68.5
Temperature Sensistive Thermal Protector l
Control Circuit 12 V DC l
Control Current 100mA l
Nominal Voltage 240 V AC l
Nominal Frequency 50 Hertz l
3 Year Warranty Australian made
Power Unit Physical Specifications
Overall Height (mm) 705
Overall Diameter (mm) 330
Overall Weight (kg) 6.7
Dual Filtration Compatible System
Cyclonic Filtration (Standard)
HFPC Filter Cartridge
Filter Bag Filtration l
Silencer for Exhaust l
Left & Right ducting entry points l
Direct Inlet point with On/Off switch
Wall Mounting of Power Unit l
Body Housing Construction ABS
Dirt Capacity litres 20
Authority Approvals / Origin
"C" Tick Compliance EMC - AS/NZS 1044 l
Made in Australia l
Installation Recommendations *
Size of Building up to Squares 30
Number of Inlet Points 4
Number of Aux Points 2
Working Hose length - up to metres 12 Max distance to furthest point metres
Notes:-
Instalaltion Recommendations shown is only an approxiate guide and may vary to actual construction specifications and layout of building. Please consult with your installer for appropriate model.
Specifications subject to change without notice. EOR
