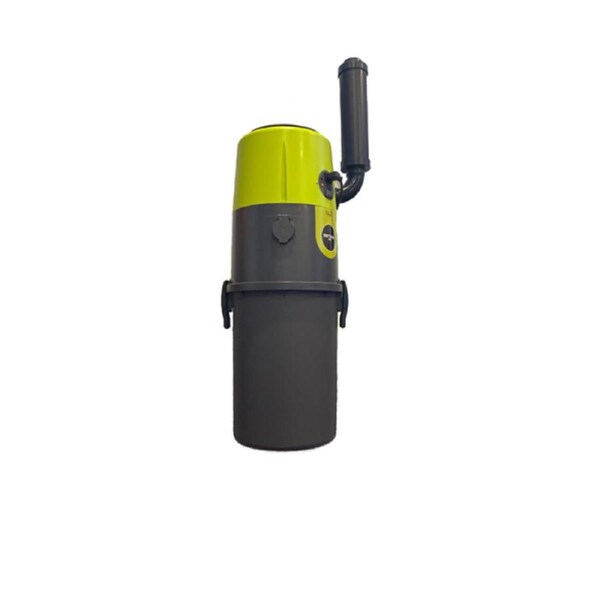

Electron EVS Ducted Vacuum Cleaner Sistema Pro A Powerful Robust Design !

Ducted Vacuum Cleaner Electron Systema Simply A Powerful Robust Design (650 Air Watts)

10 Years Motor Warranty

Description:

The Systema series caters for those discerning users that insist on achieving that extra level of Performance in Mid Size homes

The Power Unit - The heart of the ducted cleaning system is constructed only with Quality Materials and Workmanship, assuring years of trouble free vacuuming.

Design for Medium Houses, Size of Building up to Squares 70, Number of Inlet Points 10.

EVS SYSTEMA

Vacuum Motor Specifications:

• Tangential By-pass discharge l


• Double ball bearings l


• Diameter of Motor mm 145


• Air Watts 650


• Airflow l/s (max.) 57


• Sealed Vacuum mm H2O (max.) 3450


• RPM @19mm working orifice 24200


• Label Rated Electrical Watts 1750


• Noise Level dbA with Silencer @ 3m 68.0


• Control Circuit 12 V DC l


• Control Current 100mA l


• Nominal Voltage 240 V AC l


• Nominal Frequency 50 Hertz l

Power Unit Physical Specifications:

• Overall Height (mm) 810


• Overall Diameter (mm) 310


• Overall Weight (kg) 7.4


• Dual Filtration Compatible System l


• Cyclonic Filtration (Standard) l


• HFPC Filter Cartridge l


• Silencer for Exhaust l


• Left & Right ducting entry points l


• Direct Inlet point with On/Off switch l


• Wall Mounting of Power Unit l


• Body Housing Construction ABS


• Dirt Capacity litres 25

Authority Approvals / Origin:

• "C" Tick Compliance EMC - AS/NZS 1044


• Made in Australia

Installation Recommendations:

• Size of Building up to Squares 70


• Number of Inlet Points 10


• Number of Aux Points 5


• Working Hose length - up to metres 15


• Max distance to furtherest point metres


• Hide-A-Hose Compatible

General Power Unit Features:

Body Construction:

All power units are Injected molded from high impact, high temperature ABS polycarbonate and polypropylene plastics. Such material provides greater strength and durability in the overall construction of the housing. It will not dent and will last a house time. Housings are both rust and corrosion proof, excellent for areas where there is excessive humidity and ideal for coastal area installations.

Ametek Motor Power Inside:

Ametek is one of the world's largest producers of vacuum/air moving motors for original equipment manufacturers (OEM's) in floor care, outdoor power equipment and household appliance markets. Recognised as the World Leader in Electric Motor Technology, Ametek has continually set the standards for engineering, design, testing and product excellence. It is with such criteria that we continue to choose Ametek to be the power plant for all our range of ducted vacuum systems.

Notes:-

Installation Recommendations shown is only an approximate guide and may vary to actual construction specifications and layout of building. Please consult with your installer for appropriate model.

Specifications subject to change without notice. EOR
