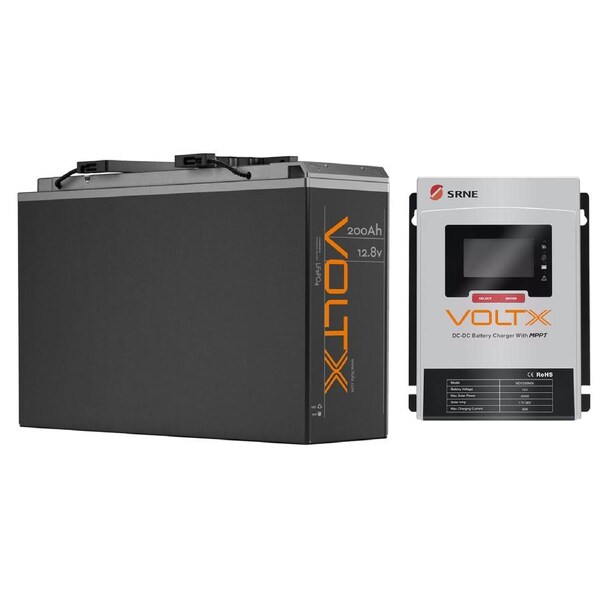

VoltX Slim 12V 200Ah Lithium Battery + 30A DC-DC Charger
Specifications
- Quick Look
- Capacity: 12.8V 200Ah
- Rated Energy: 2560Wh
- Approx Life Cycles: 4000
- Battery Manage System: 150A
- Product Size: L552 x W110 x H288mm
- Tech Specs
- Brand: VoltX
- Nominal Voltage: 12.8V
- Nominal Capacity: 200Ah
- Rated Energy: 2560Wh
- Approx Life Cycles: 4000
- Battery Manage System: 150A
- Standard Charging Current: 100A
- Max. Charging Current: 150A
- Standard Discharge Current: 150A
- Max. Continuous Discharge Current: 150A
- Max. Discharge Current 5 sec: 300A
- Charger: 14.6V 100A
- Charging Voltage: 14.6V
- Overcharge Protection: 14.6V
- Overcharge Recovery: 14.2V
- Overdischarge Protection: 10.6V
- Overdischarge Recovery: 11.2V
- Charge Temperature : 0°C to 45°C
- Discharge Temperature : -20°C to 60°C
- Storage Temperature: -10°C to 50°C
- Charge Method: CC/CV
- Battery Cells: Prismatic
- Cell Grouping: 4S1P
- Parallel Connection: Max 4
- Series Connection: Max 4
- Case Material: ABS Plastic
- Battery Type: LiFePO4 Lithium Battery
- Battery Model: Slim 200Ah
- Certifications: MSDS UN38.3
- Protection Class: IP65
- Warranty in Years: 5
- Dimensions & Weight
- Product Size: L552 x W110 x H288mm
- Package Size: L612 x W172x H355mm
- Net Weight: 21kg
- Gross Weight: 22kg
- Package List
- 1x VoltX Slim 200Ah Lithium Battery
- 2x Terminal Bolts M8*16
- 2x Insulating Covers
- 2x Screw Spring Washer
- 4x Screw Washers
- 1x User Manual
- Specifications
- Model: MD1230N05
- Backup Battery System Voltage: 12V
- Backup Battery Voltage Range: 9~16V DC
- Backup Battery Type: Sealed Battery, Gel Battery, Vented Battery, Lithium Iron Phosphate Battery, User-defined Battery
- Rated Charging Current: 30A
- Maximum PV Input Voltage: 55V DC
- Max. power point voltage range: 17~36V
- Maximum PV Input Current: 27A
- Solar Panel Charging Mode: Buck MPPT
- MPPT Efficiency:>99%
- PV input power is recommended: 400W
- Generator (Starter Battery) System Voltage:12/24V
- Starter Battery Type: Lead-acid Battery
- Maximum Generator Input Voltage: 32V DC
- Maximum Generator Input Current:35A
- Conventional Generator: 13.2~16V/26.4~32V DC
- Intelligent (Euro 6 Standard) Generator: 12~16V/24~32V DC
- Generator charging mode: Buck , Boost , Buck-Boost
- 12V Backup Battery:400W
- Charging Voltage: 13.8V
- Charging Current: ≤15A
- No-load loss: <0.6W
- Maximum Charging Conversion Efficiency: 98%
- Communication method: TTL
- Operating temperature: -35°C~65°C
- Altitude: ≤3000m
- Waterproof level: IP32
- Product dimensions: 221*175.8*82.4mm
Product 2: 30A DC to DC LiFePO4 Battery Charger Bluetooth
Tips: The items in this bundle will be shipped separately, the packages may arrive at different times, please be patient and wait.
Tips for Bluetooth functionality:
Simply download the app to find the device. You can download through the app market:
1) Android: Google Play search for "SRNE Monitoring"
2) iOS: App Store search for "SRNE Monitoring"
Please allow 1-12 business days for delivery
Note: No delivery to PO Box addresses (please provide a residential or business address at checkout)
