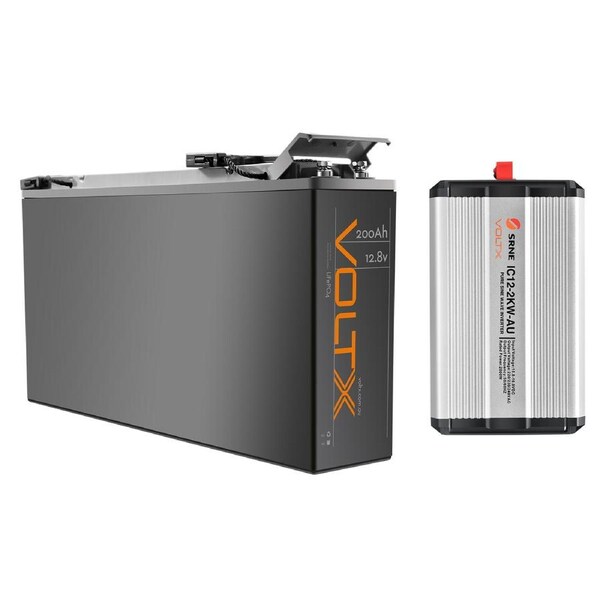

VoltX Slim 12V 200Ah Lithium Battery + 2KW Inverter
Specifications
- Quick Look
- Capacity: 12.8V 200Ah
- Rated Energy: 2560Wh
- Approx Life Cycles: 4000
- Battery Manage System: 150A
- Product Size: L552 x W110 x H290mm
- Tech Specs
- Brand: VoltX
- Nominal Voltage: 12.8V
- Nominal Capacity: 200Ah
- Rated Energy: 2560Wh
- Approx Life Cycles: 4000
- Battery Manage System: 150A
- Standard Charging Current: 75A
- Max. Charging Current: 150A
- Standard Discharge Current: 150A
- Max. Continuous Discharge Current: 150A
- Max. Discharge Current 5 sec: 300A
- Charger: 14.4V 75A
- Charging Voltage: 14.2-14.6V
- Absorption Voltage: 14.4V
- Float Voltage: 13.8V
- Overcharge Protection: 14.6V
- Overcharge Recovery: 14.2V
- Overdischarge Protection: 10V
- Overdischarge Recovery: 10.6V
- Charge Temperature : 0°C to 45°C
- Discharge Temperature : -20°C to 60°C
- Storage Temperature: -10°C to 50°C
- Charge Method: CC/CV
- Battery Cells: Prismatic
- Cell Grouping: 4S2P
- Parallel Connection: Max 6
- Series Connection: Max 6
- Case Material: ABS Plastic
- Battery Type: LiFePO4 Lithium Battery
- Battery Model: Slim 200Ah
- Certifications: IEC,FCC,UN38.3,CE
- Protection Class: IP65
- Warranty in Years: 5
- Dimensions & Weight
- Product Size: L552 x W110 x H290mm
- Package Size: L615 x W175x H333mm
- Net Weight: 20.5kg
- Gross Weight: 22kg
- Package List
- 1x VoltX Slim 200Ah Lithium Battery
- 2x Terminal Bolts M8*16
- 2x Insulating Covers
- 2x Screw Spring Washer
- 4x Screw Washers
- 1x User Manual
- Specifications
- Rated output power VA:2000VA
- Withstand instantaneous impact power:4000W
- Rated output voltage:220VAC/230VAC/240VAC(±3%)
- Output frequency:50/60HZ(±0.2%)
- Output wave:Pure sine wave
- Output harmonic component: THDV < 3% (pure resistance load)
- Load power factor:0.2-1 (load power ≤ output continuous power)
- Rated input voltage: 12VDC
- Input voltage range:10.8~16.0VDC
- Rated output efficiency: >89.0%
- Maximum output efficiency:> 92% (30% overload)
- Standby current:<0.24A
- No-load current:<1.0A
- USB interface:Dual USB output, 5VDC/2A
- ON/OFF/ECO mode:ON - AC normal output OFF - no AC output, standby ECO - energy-saving mode, auto switch
- ECO starting power:<30W
- ECO interval time:1min
- TTL interface:Non-isolated TTL communication, power supply 12.5V/200mA
- Indicator:Green - normal operation; Red - fault
- External switch contact interface:Switch on or off by control equipment such as external relay and mechanical switch
- Protection function:Input over-voltage/over-discharge protection, output overload/short-circuit protection, and device over-temperature protection
- Operating ambient temperature:-20°C~60°C
- Storage ambient temperature:-35°C~80°C
- Relative humidity:≤95%
- Protection grade:IP20
- Heat-dissipating method:Natural heat dissipation + intelligent air cooling
- Noise:≤60dB
- Net weight:6.5kg
- Warranty : 3 Years
Product 2: VoltX 12V 2KW Pure Sine Wave Inverter
-
Rated output power:2000W
