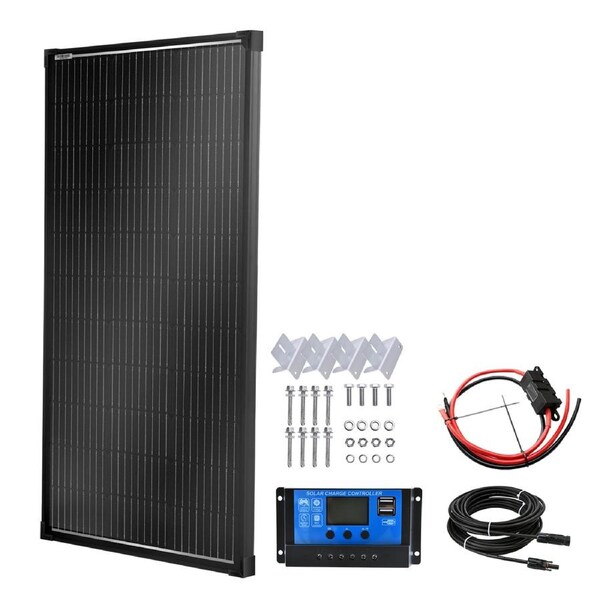

100W Solar Panel, 20A Controller, MC4 Cable, Z Brackets, M8 Cable

• Max Power: 100W
• Max Power Voltage (Vmp): 18.74V
• Max Power Current (lmp): 5.34A
• Open-Circuit Voltage (Voc): 22.86V
• Short-Circuit Current (Isc): 5.61A
• Max System Voltage: 1000V
• Max Series Fuse Rating: 15A
• Module Efficiency STC (%): 18.9%
• Cell Efficiency: 22%
• Power Tolerance: 0-5W
• Standard Test Conditions: E=1000W/m² AM=1.5, TC=25℃
• Working Temperature: -40°C-85°C
• Temperature Coefficients of Pmax: -0.34%℃
• Temperature Coefficients of Voc: -0.265%℃
• Temperature Coefficients of lsc: +0.05%℃
• Nominal Operating Cell Temperature (NOCT): 45±2°C
• Type: Fixed
• Solar Cell: Monocrystalline Grade A
• Cell Tech: PERC
• Panel Leads (Pair-AWG): 2.5mm²
• Solar Connectors: Junction Box + 0.9m Cable With MC4 Connector
• Tie Down Points: Yes, 4 Points
• Frame: Anodized Aluminium Alloy
• IP Rating: IP65
• Certifications: CE, ISO
• Warranty: 5 Years

• Product Dimensions: L980xW540xH30mm
• Package Dimensions: L1000xW560xH45mm
• Net Weight: 5.6kg
• Gross Weight: 6.5kg

• 1x 100W Fixed Solar Panel Black Frame

• Rated Voltage: 12V 24V Auto
• Application: Solar System Controller
• Current: 20A

• Conductor: Tinned copper wire
• 10 AWG 6 mm²
• Maximum current 40A
• Rating Voltage:1.5KV
• Insulation & Jacket: PVC
• Ambient Temperature: -40°F ~ 90 °F
• Fire Rated: IEC60332-1
• TUV certificate

• Solar Panel Mounting Z Brackets (Set of 4)
• Four Z Shape Solar Panel Brackets
• Spring washers, nuts and washers are included

• Cable Length: 1m
• Wire Gauge: 6AWG
• Amperage: 60A
• Colour: Red and Black
