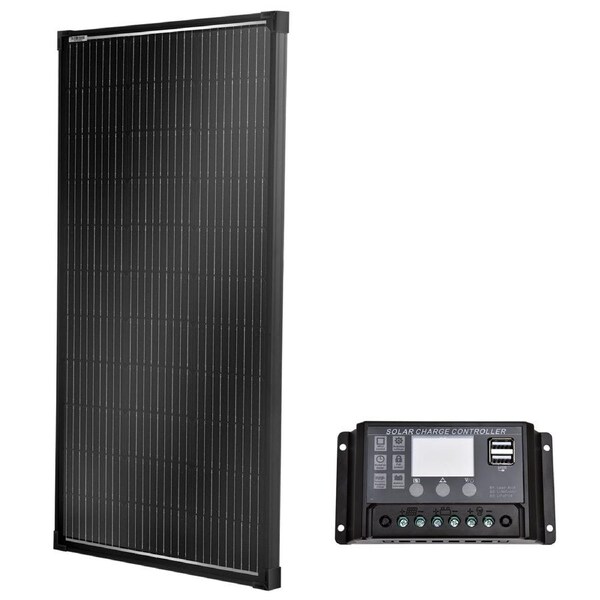

100W Solar Panel Fixed Black Frame + 20A Controller PWM

• Max Power: 100W
• Max Power Voltage (Vmp): 18.74V
• Max Power Current (lmp): 5.34A
• Open-Circuit Voltage (Voc): 22.86V
• Short-Circuit Current (Isc): 5.61A
• Max System Voltage: 1000V
• Max Series Fuse Rating: 15A
• Module Efficiency STC (%): 18.9%
• Cell Efficiency: 22%
• Power Tolerance: 0-5W
• Standard Test Conditions: E=1000W/m² AM=1.5, TC=25°C
• Working Temperature: -40°C-85°C
• Temperature Coefficients of Pmax: -0.34%°C
• Temperature Coefficients of Voc: -0.265%°C
• Temperature Coefficients of lsc: +0.05%°C
• Nominal Operating Cell Temperature (NOCT): 45±2°C
• Type: Fixed
• Solar Cell: Monocrystalline Grade A
• Cell Tech: PERC
• Panel Leads (Pair-AWG): 2.5mm²
• Solar Connectors: Junction Box + 0.9m Cable With MC4 Connector
• Tie Down Points: Yes, 4 Points
• Frame: Anodized Aluminium Alloy
• IP Rating: IP65
• Certifications: CE, ISO
• Warranty: 5 Years

• Product Dimensions: L980xW540xH30mm
• Package Dimensions: L1000xW560xH45mm
• Net Weight: 5.6kg
• Gross Weight: 6.5kg

• 1x 100W Fixed Solar Panel Black Frame

• Material: ABS
• System voltage: 12V / 24V AUTO
• Rated charge current :20A
• Discharge Current: 20A
• Max Solar Input: <50V
• Battery Type : b1 (12/24V), 1b1 (12V), 2b1 (24V) :lead-acid battery
• Absorption volt: 14.4V
• Float charge voltage: 13.7V (adjustable)
• Discharge stop: 10.7V (adjustable)
• Discharge reconnect: 12.6V (adjustable)
• Battery Type: ternary lithium: 1b2(3.7Vx3)(12V)
• Battery Type : LifePo4: 1b3(3.2Vx4) (12V)
• USB output: 5V/2A
• Operating temperature: -35°C-60°C
• Self-consume : <10mA
• Colour: Black


• Size:133x70x34mm
• Weight: 154g
